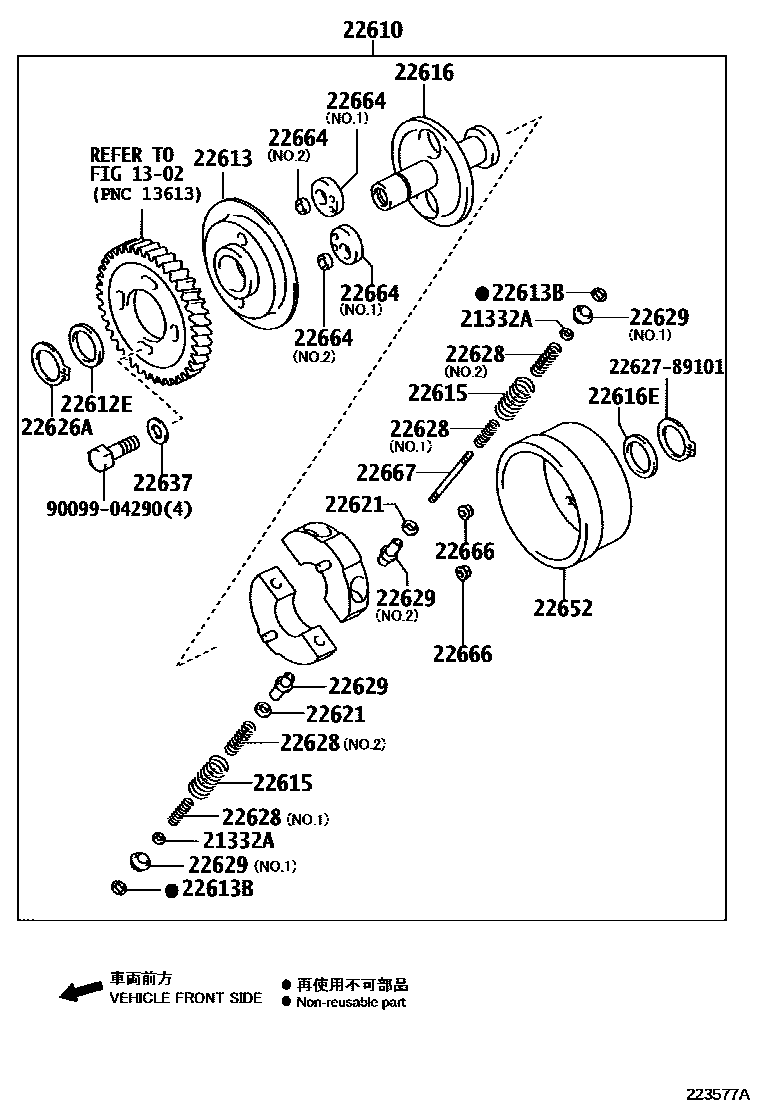

Toyota DYNA — AUTOMATIC TIMER
1302
21332AWASHER(FOR AUTOMATIC TIMER)
T=0.5
T=0.7
T=0.9
22612EWASHER, SPECIAL
T=1.05
T=1.15
T=1.25
T=1.35
T=1.45
T=0.55
T=0.65
T=0.75
T=0.85
T=0.5
T=1.0
T=1.1
T=1.2
T=1.3
T=1.4
T=1.05
T=1.15
T=1.25
T=1.35
T=1.45
T=0.5
T=1.0
T=1.1
T=1.2
T=1.3
T=1.4
22613BRETAINER, TIMER SPRING SEAT
22615SPRING, TIMER
22616EWASHER, PLATE(FOR TIMER HUB)
T=0.55
T=0.65
T=0.75
T=0.85
T=0.95
T=1.05
T=0.5
T=0.6
T=0.7
T=0.8
T=0.9
T=1.0
T=0.55
T=0.65
T=0.75
T=0.85
T=0.95
T=1.05
T=0.5
T=0.6
T=0.7
T=0.8
T=0.9
T=1.0
22621WASHER, TIMER SPRING ADJUST
T=0.5
T=0.6
T=0.7
T=0.8
T=0.9
T=1.0
T=0.5
T=0.6
T=0.7
T=0.8
T=0.9
T=1.0
T=0.8
T=0.9
T=1.0
T=1.1
T=1.2
T=1.3
T=1.5
T=1.4
22626ARING, CLAMP(FOR DRIVE GEAR)
22628SPRING, TIMER SUB
NO.1
NO.2
OD=15.6 L=43.1
OD=15.6 L=46.0
OD=15.7 L=39.2
22629SEAT, SPRING(FOR TIMER SPRING)
NO.2
NO.1
NO.1
NO.2
22637WASHER, COUPLING SET BOLT
22652COVER SUB-ASSY, TIMER
22664CAM, TIMER
NO.1
NO.2
NO.2
NO.1
NO.1
NO.2
22666ROLLER, TIMER
22667SLEEVE
2262789101
main22627-89101
9009904290
main90099-04290
20 parts on this diagram · 4 diagrams in section
