Toyota DYNA — ASH RECEPTACLE

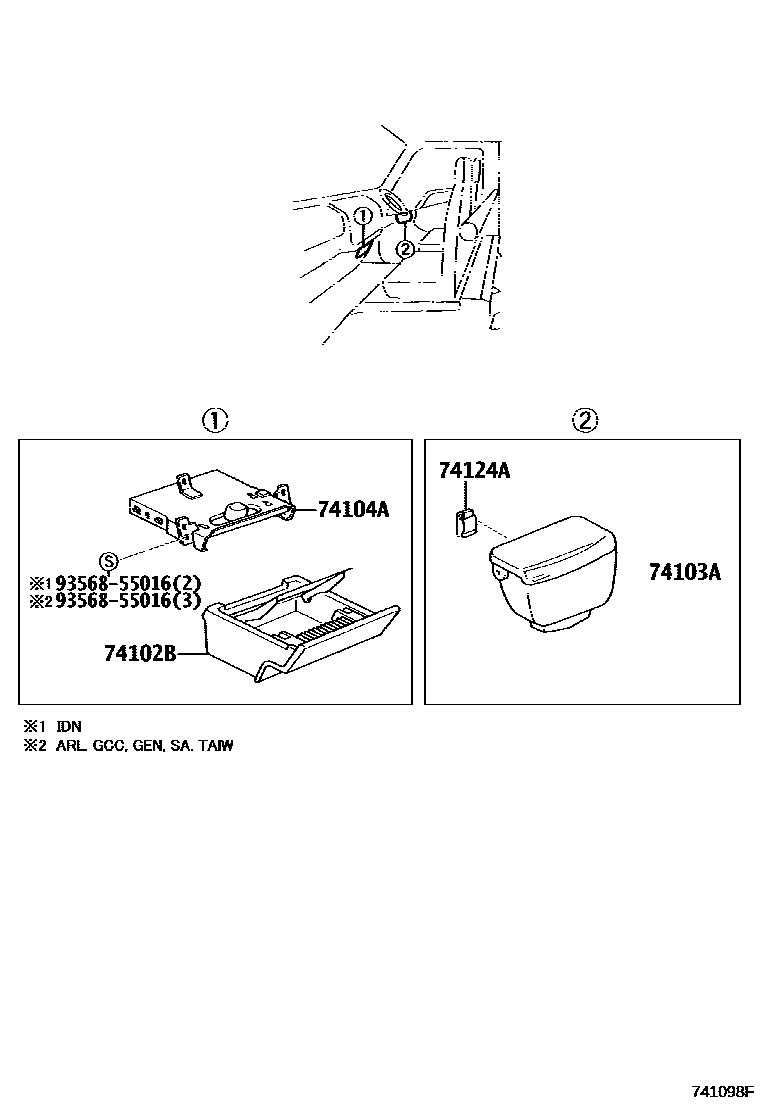

Parts diagram
74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE
main74102-0W010i202203
main74102-37010-B0i200212-200802
MD.CHARCOAL,TRIM1#
74103ADOOR SUB-ASSY, FRONT ASH RECEPTACLE
main74103-37010-B0×2i200212-200312
MD.CHARCOAL,TRIM1#
74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE
main74104-0W010i200209-200612
main74104-37020i200212-200312
main74104-37030i200610-201106
74124ASPRING, ASH RECEPTACLE
main74124-37010×2i200212-200312
9356855016
main93568-55016

5 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota DYNA

This section contains 5 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota DYNA. Key components include: BOX SUB-ASSY, FRONT ASH RECEPTACLE, DOOR SUB-ASSY, FRONT ASH RECEPTACLE, RETAINER SUB-ASSY, FRONT ASH RECEPTACLE, SPRING, ASH RECEPTACLE.
