Toyota DYNA — ARMREST & VISOR

0001 1 0002 1FR VISOR

74310VISOR ASSY, RH

main74310-95427-03iYU70..V198409-198608

GRAY,GRAY

main74310-95429-03iYU60..ARL198409-198508

GRAY,GRAY

main74310-95430-03iYU7#..BUS198409-198708

GRAY,GRAY

main74310-95432-03iYU60..ARL198409-198508

W/ROOF VENTILATOR,GRAY,GRAY

main74310-95433-03iRU75,85,WU9#..GEN,SA198409-198608

GRAY,GRAY

main74310-95435-03iWU90..ARL198409-198508

GRAY,GRAY

main74310-95436-03iYU60,62..ARL198508-198708

GRAY,GRAY

main74310-95437-03iYU60,62..ARL198508-198708

W/ROOF VENTILATOR,GRAY,GRAY

main74310-95438-03iWU90..ARL198508-198708

GRAY,GRAY

main74310-95439-03iYU6#,81..GEN,SA198608-198708

GRAY,GRAY

main74310-95440-03iWU9#..RHD..(GEN,SA)198608-198708

W/ROOF VENTILATOR,GRAY,GRAY

main74310-95441-03iRU75,85,WU9#..GEN,SA198608-198708

GRAY,GRAY

74310BPLUG, HOLE (FOR VISOR)

main74325-95400-03iRU75,85,WU9#,YU6#,7#,8#..EUR,GEN,SA198409-198704

GRAY,GRAY

74320VISOR ASSY, LH

main74320-95416-03iYU70..V198409-198608

GRAY,GRAY

main74320-95417-03iYU60..ARL198409-198508

GRAY,GRAY

main74320-95418-03iYU7#..BUS198409-198708

GRAY,GRAY

main74320-95419-03iYU60..ARL198409-198508

W/ROOF VENTILATOR,GRAY,GRAY

main74320-95420-03iRU75,85,WU9#..GEN,SA198409-198608

GRAY,GRAY

main74320-95421-03iWU90..ARL198409-198508

GRAY,GRAY

main74320-95422-03iYU60,62..ARL198508-198708

GRAY,GRAY

main74320-95423-03iYU60,62..ARL198508-198708

W/ROOF VENTILATOR,GRAY,GRAY

main74320-95424-03iWU90..ARL198508-198708

GRAY,GRAY

main74320-95425-03iYU6#,81..GEN,SA198608-198708

GRAY,GRAY

main74320-95426-03iRU75,85,WU9#..LHD198608-198708

W/ROOF VENTILATOR,GRAY,GRAY

main74320-95427-03iRU75,85,WU9#..GEN,SA198608-198708

GRAY,GRAY

74348HOLDER, VISOR

main74348-12010-23iRU75,85,WU9#,YU6#,7#,8#198409-198708

W/SUN VISOR=ASSISTANT,GRAY,GRAY

sub74348-30010

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-95403-03×2iRU75,85,WU9#,YU6#,7#,8#198409-198708

FR PILLAR SHADOW GRAY,SHADOW GRAY

sub74620-87001

main74611-92601-03iRU75,85,WU9#,YU6#,7#,8#198508-198708

ROOF,SHADOW GRAY,SHADOW GRAY

74603BCLIP (FOR ASSIST GRIP)

74604GRIP SUB-ASSY, ASSIST, REAR

main74603-95A04×6iYU7#..BUS198409-198708

RR SEAT

main74611-92601-01iYU7#..BUS198409-198708

BLACK,BLACK

74613PLUG, ASSIST GRIP

main74617-95A04×12iYU7#..BUS198409-198708

74710EXTINGUISHER ASSY

74810PULL ASSY, DOOR, INSIDE

main69285-92600-03×2iYU60,62..TW1198409-198708

RR DOOR,SHADOW GRAY,SHADOW GRAY

main69285-95404-03×2iRU75,85,WU9#,YU6#,7#,8#198409-198708

SHADOW GRAY,SHADOW GRAY

9015260008

main90152-60008

9015960243

main90159-60243

9018906018

main90189-06018

9046706013

main90467-06013

9095001314

main90950-01314

9095006046

main90950-06046

9095006047

main90950-06047

9165140616

main91651-40616

9321016016

main93210-16016

9324056012

main93240-56012

9351056020

main93510-56020

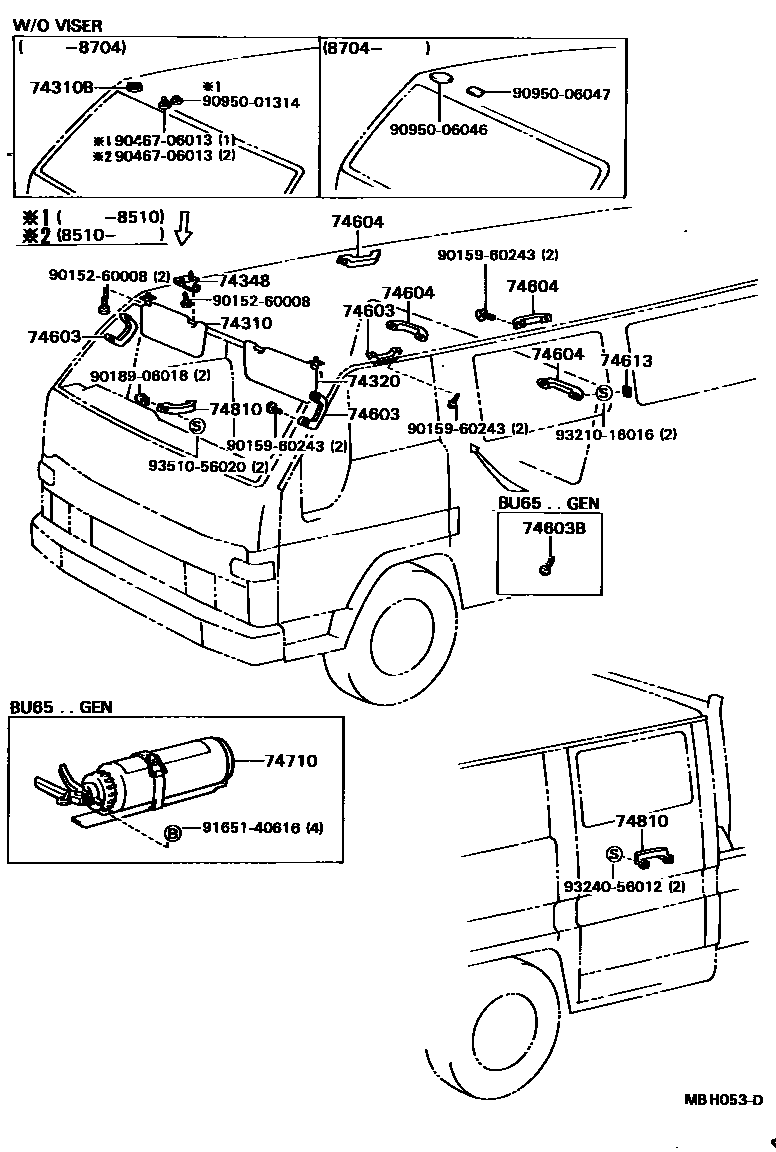

21 parts on this diagram · 2 diagrams in section
