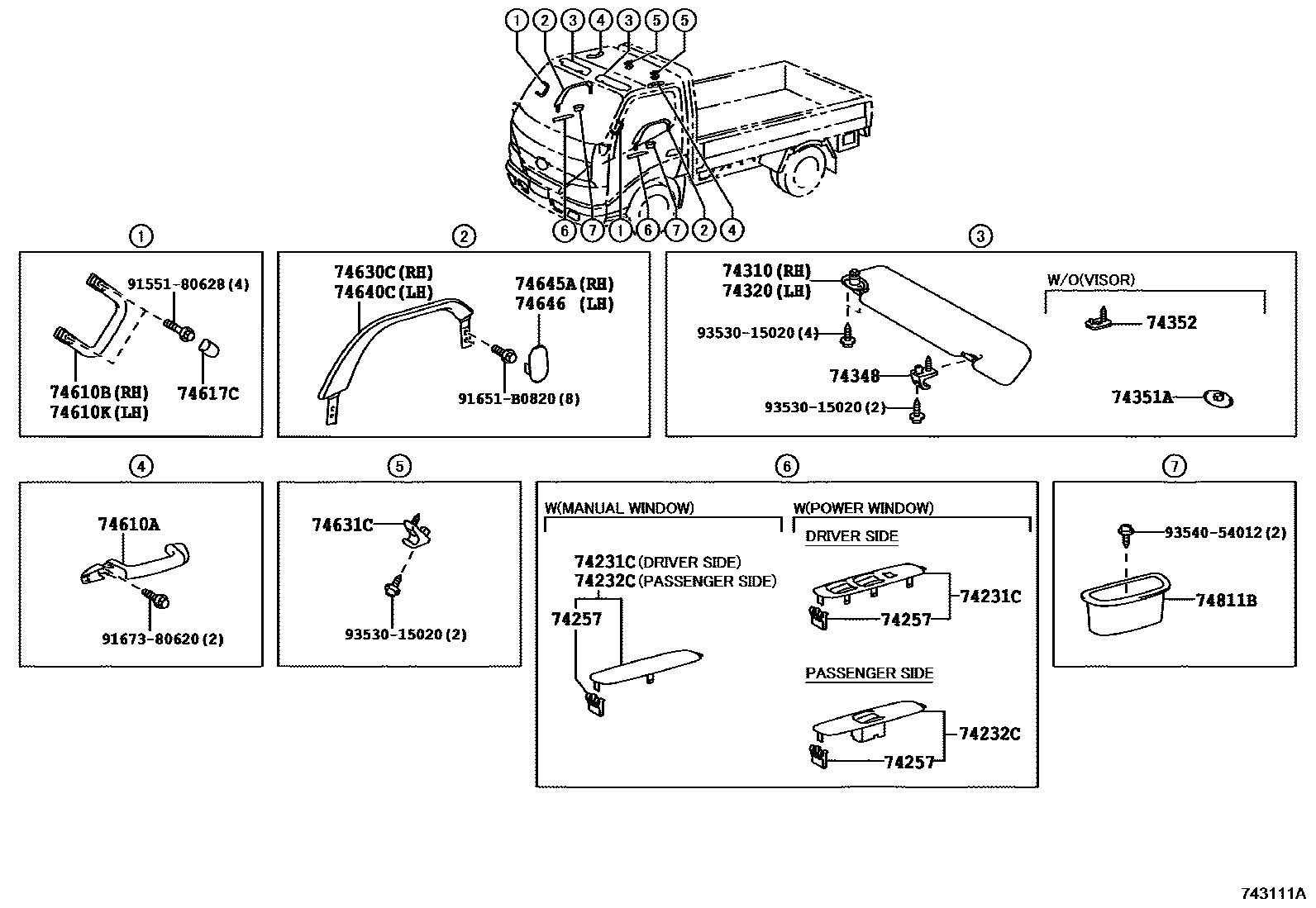

Toyota DYNA — ARMREST & VISOR

74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE

main74231-37020-B1iXZU600..GCC;WU600,650,XZU650201107-202005

GRAY,TRIM1#

74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE

main74231-37020-B1iXZU600..GCC;WU600,650,XZU650201107-202005

GRAY,TRIM1#

74257SPRING, ARMREST, NO.1

main74257-37010iXZU600..GCC;WU600,650,XZU650201107-202005

74310VISOR ASSY, RH

main74310-37A10-B0iWU600,650,XZU600,650..GCC201107-202005

GRAY,TRIM1#

main74310-37A10-B0iWU600,650,XZU600,650..GCC201107-202005

SUN VISOR-WITH(DRIVER & PASSENGER),GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-37480-B0iWU600,650201107-201512

GRAY,TRIM1#

sub74320-37481

main74320-37481-B0iXZU600..GCC;WU600,650,XZU650201601-202005

GRAY,TRIM1#

74348HOLDER, VISOR

main74348-22020-B9iXZU600..GCC;WU600,650,XZU650201107-202005

MD.CHARCOAL,TRIM1#

sub74348-22020

74351ACOVER, VISOR, NO.1

main74351-35010-B2iWU600,650..GEN201107-202005

MD.CHARCOAL,TRIM1#

sub74351-37100

74352COVER, VISOR, NO.2

main74352-35010-B2iWU600,650..GEN201107-202005

MD.CHARCOAL,TRIM1#

sub74352-37100

74610AGRIP SUB-ASSY, ASSIST

74610BGRIP ASSY, ASSIST, NO.2 RH

main74610-37040-B0iXZU600..GCC;WU600,650,XZU650201107-202005

GRAY,TRIM1#

74610KGRIP ASSY, ASSIST, NO.2 LH

main74610-37040-B0iXZU600..GCC;WU600,650,XZU650201107-202005

GRAY,TRIM1#

74617CPLUG, ASSIST GRIP

main74617-37010-B0iXZU600..GCC;WU600,650,XZU650201107-202005

GRAY,TRIM1#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-37020-C0iXZU600..GCC;WU600,650,XZU650201107-202005

BLACK,TRIM1#

74631CHOOK, COAT

main74348-22020-B9iXZU600..GCC;WU600,650,XZU650201107-202005

MD.CHARCOAL,TRIM1#

sub74348-22020

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-37010-C0iXZU600..GCC;WU600,650,XZU650201107-202005

BLACK,TRIM1#

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-37010-B1iXZU600..GCC;WU600,650,XZU650201107-202005

GRAY,TRIM1#

74646COVER, DOOR ASSIST GRIP, LH

main74646-37010-B1iXZU600..GCC;WU600,650,XZU650201107-202005

GRAY,TRIM1#

74811BHANDLE, DOOR PULL

main74811-95J04-B3iXZU600..GCC;WU600,650,XZU650201107-202005

GRAY,TRIM1#

sub74811-95J04

9155180628

main91551-80628

91651B0820

main91651-B0820

9167380620

main91673-80620

9353015020

main93530-15020

9354054012

main93540-54012

23 parts on this diagram · 1 diagram in section
