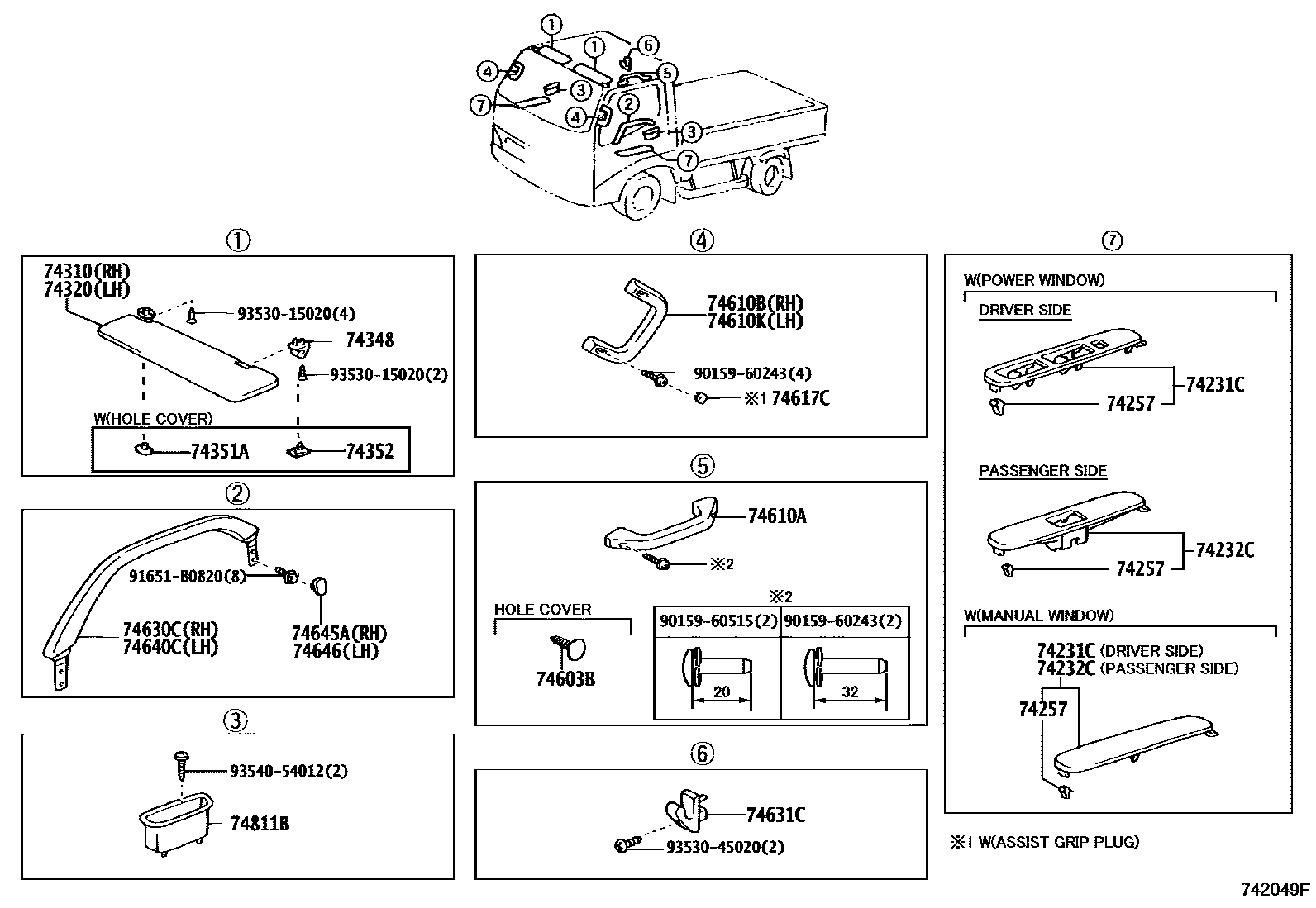

Toyota DYNA — ARMREST & VISOR

74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE

main74231-37012-B0iBU300,340200212-200312

W(POWER WINDOW),MD.CHARCOAL,TRIM1#

main74231-37020-B0iWU30#,34#..GCC,GEN200610-201106

MD.CHARCOAL,TRIM1#

74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE

main74231-37020-B0iBU300,340200212-200312

MD.CHARCOAL,TRIM1#

main74232-37010-B0iXZU307,327,337,347200610-200901

W(POWER WINDOW),MD.CHARCOAL,TRIM1#

74257SPRING, ARMREST, NO.1

main74257-37010×2iWU30#,34#..GCC,GEN200610-201106

74310VISOR ASSY, RH

main74310-0W160-B0iWU302,342,352..DCRTP,DCRTR200912

MD.CHARCOAL,TRIM1#

main74310-37040-B0iBU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW200212-200405

MD.CHARCOAL,TRIM1#

sub74310-37510

main74310-37230-B0iXZU305,345200212-200405

W(AIR BAG CAUTION),MD.CHARCOAL,TRIM1#

main74310-37310-B0iBU300,340200212-200312

MD.CHARCOAL,TRIM1#

main74310-37380-B0iBU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW200406-200504

MD.CHARCOAL,TRIM1#

sub74310-37510

main74310-37460-B0iXZU305,345200406-200610

MD.CHARCOAL,TRIM1#

main74310-37470-B0iXZU305,345200406-200610

W(ABS),MD.CHARCOAL,TRIM1#

main74310-37500-B0iXZU307,327,337,347200610-200901

MD.CHARCOAL,TRIM1#

main74310-YX010-B0iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

MD.CHARCOAL,TRIM1#

74320VISOR ASSY, LH

main74320-0W160-B0iXZU349..5F;XZU309,359..IV8202203-202310

MD.CHARCOAL,TRIM4#

main74320-37020-B0iBU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW200212-200405

MD.CHARCOAL,TRIM1#

main74320-37120-B0iXZU305,345200212-200405

MD.CHARCOAL,TRIM1#

main74320-37140-B0iBU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,SA,TAIW200406-200504

MD.CHARCOAL,TRIM1#

main74320-37200-B0iXZU305,345200406-200610

MD.CHARCOAL,TRIM1#

main74320-37220-B0iWU300,340..SA200505-200802

MD.CHARCOAL,TRIM1#

74348HOLDER, VISOR

main74348-0B010-B1iXZU349..6F;XZU309..IV3202203

MD.CHARCOAL,TRIM4#

main74348-22020-B9×2iWU30#,34#..GCC,GEN200610-201106

DRIVER SIDE & PASSENGER SIDE,MD.CHARCOAL,TRIM1#

74351ACOVER, VISOR, NO.1

main74351-35010-B2iWU30#,34#..GCC,GEN200610-201106

MD.CHARCOAL,TRIM1#

sub74351-37100

74352COVER, VISOR, NO.2

main74352-35010-B2iBU303,343,WU300,340..GCC,GEN200212-200610

MD.CHARCOAL,TRIM1#

sub74352-37100

74603BCLIP (FOR ASSIST GRIP)

main90467-05101-B2×2iWU300,340..SA200610-200812

MD.CHARCOAL,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74611-0K030-B1iWU302,342,352201706-201709

MD.CHARCOAL,TRIM1#

main74611-0W010iXZU349..5F;XZU309,359..IV8202203-202310

main74611-89101-B2iWU300,340..SA200610-200812

MD.CHARCOAL,TRIM1#

74610BGRIP ASSY, ASSIST, NO.2 RH

main74610-0W010-B0iWU302,342,352..DCRTP,DCRTR200912-201709

MD.CHARCOAL,TRIM1#

main74610-0W020iXZU349..6F;XZU309..IV3202203

main74610-95404-B1iWU30#,34#..GCC,GEN200610-200910

MD.CHARCOAL,TRIM1#

main74610-95405-B1iWU30#,34#..GCC,GEN200911-201106

MD.CHARCOAL,TRIM1#

main74610-YX010-B0iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

MD.CHARCOAL,TRIM1#

74610KGRIP ASSY, ASSIST, NO.2 LH

main74610-0W010-B0iWU302,342,352..DCRTP,DCRTR200912-201709

MD.CHARCOAL,TRIM1#

main74610-0W020iWU302,342,352201709

main74610-95404-B1iWU300,340..SA200610-200812

MD.CHARCOAL,TRIM1#

main74610-95405-B1iWU30#,34#..GCC,GEN200911-201106

MD.CHARCOAL,TRIM1#

main74610-YX010-B0iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

MD.CHARCOAL,TRIM1#

74617CPLUG, ASSIST GRIP

main74617-95J00-B1×4iBU300,340200212-200312

MD.CHARCOAL,TRIM1#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-0W010-B0iWU302,342..DCRTP,DCRTR200912-201707

MD.CHARCOAL,TRIM1#

main74630-0W020iWU302,342,352201707

main74630-37020-B0iBU303,343,WU300,340,XZU342..IDN200209-200612

MD.CHARCOAL,TRIM1#

74631CHOOK, COAT

main74348-22020-B9×2iWU30#,34#..GCC,GEN200610-201106

MD.CHARCOAL,TRIM1#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-0W010-B0iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

MD.CHARCOAL,TRIM1#

main74640-0W020iWU302,342,352201707

main74640-37010-B0iXZU307,327,337,347200610-200901

MD.CHARCOAL,TRIM1#

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-0W010-B0iWU302,342,352..DCRTP,DCRTR200912

MD.CHARCOAL,TRIM1#

main74645-37010-B0iWU30#,34#..GCC,GEN200610-201106

MD.CHARCOAL,TRIM1#

main74645-F1010iXZU349..6F;XZU309..IV3202203

74646COVER, DOOR ASSIST GRIP, LH

main74646-0W010-B0iBU303,343,WU300,340,XZU342..IDN200209-200612

MD.CHARCOAL,TRIM1#

main74646-37010-B0iXZU307,327,337,347200610-200901

MD.CHARCOAL,TRIM1#

main74646-F1010iXZU349..5F;XZU309,359..IV8202203-202310

74811BHANDLE, DOOR PULL

main74811-0W010-B0×2iBU303,343,WU300,340,XZU342..IDN200209-200612

MD.CHARCOAL,TRIM1#

main74811-95J04-B2×2iBU300,340200212-200312

MD.CHARCOAL,TRIM1#

9015960243

main90159-60243

9015960515

main90159-60515

91651B0820

main91651-B0820

9353015020

main93530-15020

9353045020

main93530-45020

9354054012

main93540-54012

25 parts on this diagram · 1 diagram in section
