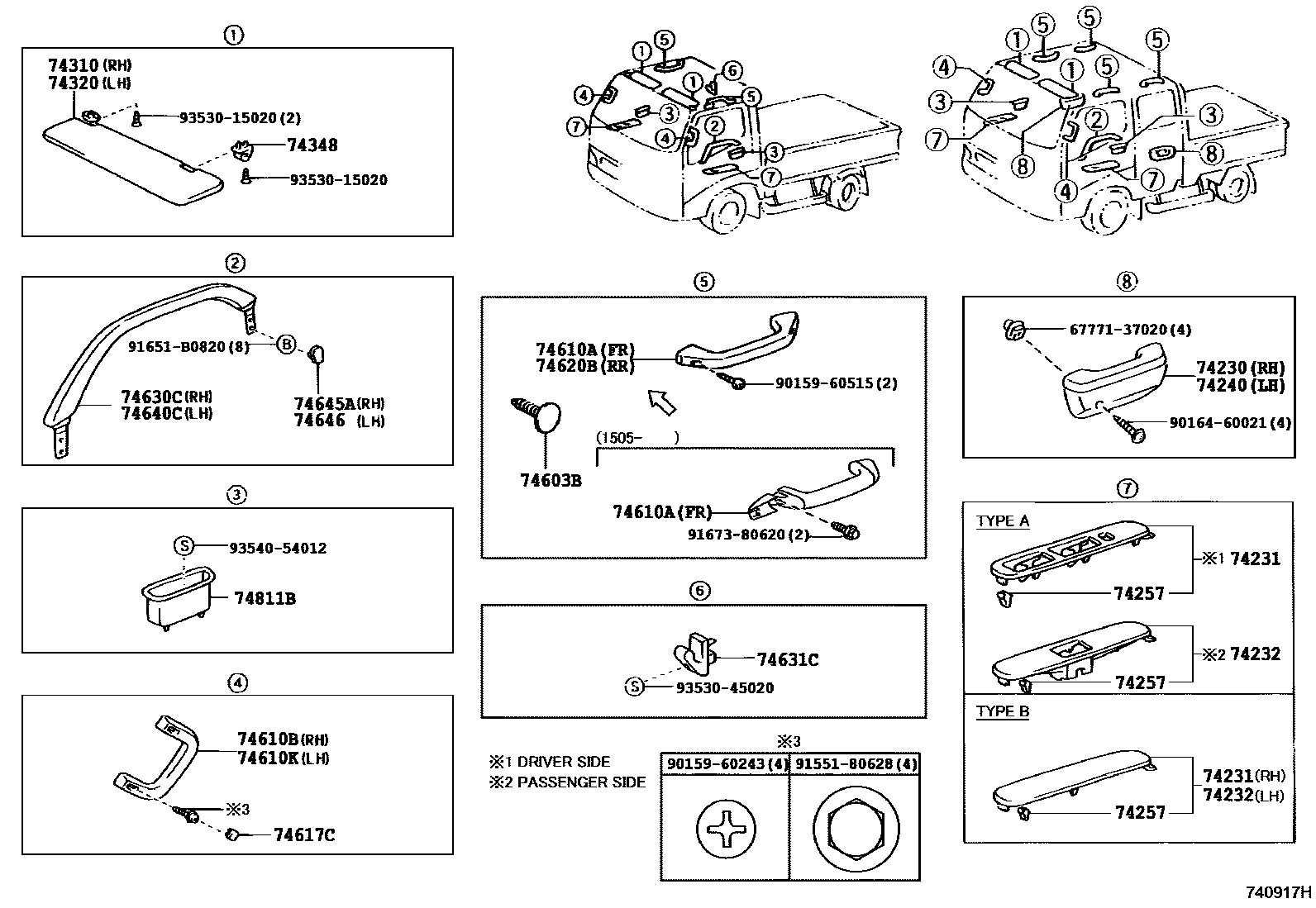

Toyota DYNA — ARMREST & VISOR

74230ARMREST ASSY, REAR, RH

main74210-16060-B0iKDY23#,25#,26#..10T,125T200108-200910

MD.CHARCOAL,TRIM1#

main74210-16061-B0iKDY231,251,261..10T,125T200911-201502

MD.CHARCOAL,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-37011-B0iLY235..WT;KDY220,230,250,260200107-200109

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

main74231-37012-B0iLY235..WT;KDY22#,23#,25#,26#200109-201505

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

main74231-37012-B1iKDY221,231201505

TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#

main74231-37020-B0iLY225,23#201505-202111

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12

main74231-37020-B1iKDY221,231201505-202111

TYPE B:REFER TO ILLUSTRATION,GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74231-37020-B0iKDY22#,23#,25#,26#,LY22#,23#200107-201505

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

main74231-37020-B1iKDY221,231201505-202111

TYPE B:REFER TO ILLUSTRATION,GRAY,TRIM1#

main74232-37010-B0iLY235..WT;KDY22#,23#,25#,26#200107-201505

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

main74232-37010-B1iKDY221,231201505

TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#

74240ARMREST ASSY, REAR, LH

main74210-16060-B0iKDY23#,25#,26#..10T,125T200108-200910

MD.CHARCOAL,TRIM1#

main74210-16061-B0iKDY231,251,261..10T,125T200911-201502

MD.CHARCOAL,TRIM1#

74257SPRING, ARMREST, NO.1

main74257-37010iLY235..WT;KDY220,230,250,260200107-200109

TYPE A:REFER TO ILLUSTRATION

74310VISOR ASSY, RH

main74310-25070-B0iKDY220,230,250,260,LY220,230200107-200504

MD.CHARCOAL,TRIM1#

main74310-25220-B0iKDY220,230,250,260,LY230200505-201206

MD.CHARCOAL,TRIM1#

main74310-25230-B0iKDY23#..ST..IV3;KDY25#,26#..125T200505-201008

PORTUGAL,MD.CHARCOAL,TRIM1#

main74310-25240-B0iKDY221,231,251,261..EUR201008-201505

MD.CHARCOAL,TRIM1#

main74310-25250-B0iKDY231,251,261..(10T,125T)..IV3201008-201502

PORTUGAL,MD.CHARCOAL,TRIM1#

main74310-37040-B0iLY225,235200107-200504

MD.CHARCOAL,TRIM1#

sub74310-37510

main74310-37500-B0iKDY221,231,LY225,235..GEN200505-201505

MD.CHARCOAL,TRIM1#

main74310-37A10-B0iKDY221,231,LY225,235201505

GRAY,TRIM1#

main74310-37A90-B0iLY230201505-202111

GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-25040-B0iKDY220,230,250,260,LY220,230200107-200504

MD.CHARCOAL,TRIM1#

main74320-25060-B0iKDY220,230,250,260,LY230200505-201206

MD.CHARCOAL,TRIM1#

main74320-25070-B0iKDY23#..ST..IV3;KDY25#,26#..125T200505-201008

PORTUGAL,MD.CHARCOAL,TRIM1#

main74320-25080-B0iKDY221,231,251,261..EUR201008-201505

MD.CHARCOAL,TRIM1#

main74320-25090-B0iKDY231,251,261..(10T,125T)..IV3201008-201502

PORTUGAL,MD.CHARCOAL,TRIM1#

main74320-37020-B0iLY225,235200107-200504

MD.CHARCOAL,TRIM1#

main74320-37220-B0iKDY221,231,LY225,235..GEN200505-201505

MD.CHARCOAL,TRIM1#

main74320-37451-B0iKDY221,231201610

GRAY,TRIM1#

main74320-37480-B0iKDY221,231,LY225,235201505-201610

GRAY,TRIM1#

main74320-37481-B0iLY235201610

GRAY,TRIM1#

main74320-37580-B0iLY230201505-202111

GRAY,TRIM1#

74348HOLDER, VISOR

main74348-22020-B9×2iKDY22#,23#,25#,26#,LY22#,23#200107-201610

MD.CHARCOAL,TRIM1#

74603BCLIP (FOR ASSIST GRIP)

main90467-05101-B2×2iKDY221,231,251,261,LY225,23#201307-201505

MD.CHARCOAL,TRIM1#

main90467-06048-B9×2iKDY221,231,LY225,23#201505-202111

MD.CHARCOAL,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74611-48010-B0iKDY221,231,LY225,23#201505-202111

GRAY,TRIM1#

main74611-89101-B2iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

74610BGRIP ASSY, ASSIST, NO.2 RH

main74610-37040-B0iKDY221,231,LY23#201610-202111

GRAY,TRIM1#

main74610-95404-B1iKDY22#,23#,25#,26#,LY22#,23#200107-200910

MD.CHARCOAL,TRIM1#

main74610-95405-B1iKDY221,231,251,261,LY225,23#200911-201505

MD.CHARCOAL,TRIM1#

main74610-95405-B2iKDY221,231,LY225,23#201505-201610

GRAY,TRIM1#

74610KGRIP ASSY, ASSIST, NO.2 LH

main74610-37040-B0iKDY221,231,LY23#201610-202111

GRAY,TRIM1#

main74610-95404-B1iKDY22#,23#,25#,26#,LY22#,23#200107-200910

MD.CHARCOAL,TRIM1#

main74610-95405-B1iKDY221,231,251,261,LY225,23#200911-201505

MD.CHARCOAL,TRIM1#

main74610-95405-B2iKDY221,231,LY225,23#201505-201610

GRAY,TRIM1#

74617CPLUG, ASSIST GRIP

main74617-37010-B0×4iKDY221,231,LY23#201610-202111

GRAY,TRIM1#

main74617-95J00-B1×4iLY225,23#201505-201610

MD.CHARCOAL,TRIM12

main74617-95J00-B2×4iKDY221,231201505-201610

GRAY,TRIM13

74620BGRIP ASSY, ASSIST, REAR

main74611-89101-B2×2iKDY23#,25#,26#..10T,125T200108-201502

MD.CHARCOAL,TRIM1#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-37020-B0iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

main74630-37020-C0iLY225,23#201505-201610

BLACK,TRIM13

74631CHOOK, COAT

main74348-22020-B9×2iKDY22#,LY22#,23#;KDY23#,25#,26#..15T200107-202111

MD.CHARCOAL,TRIM1#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-37010-B0iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

main74640-37010-C0iLY225,23#201505-201610

BLACK,TRIM13

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-37010-B0iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

main74645-37010-B1iLY225,23#201505-201610

GRAY,TRIM13

74646COVER, DOOR ASSIST GRIP, LH

main74646-37010-B0iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

main74646-37010-B1iLY225,23#201505-201610

GRAY,TRIM13

74811BHANDLE, DOOR PULL

main74811-95J04-B2×2iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

main74811-95J04-B3×2iLY225,23#201505-201610

GRAY,TRIM13

6777137020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-37020

9015960243

main90159-60243

9015960515

main90159-60515

9016460021

main90164-60021

9155180628

main91551-80628

91651B0820

main91651-B0820

9167380620

main91673-80620

9353015020

main93530-15020

9353045020

main93530-45020

9354054012

main93540-54012

30 parts on this diagram · 1 diagram in section
