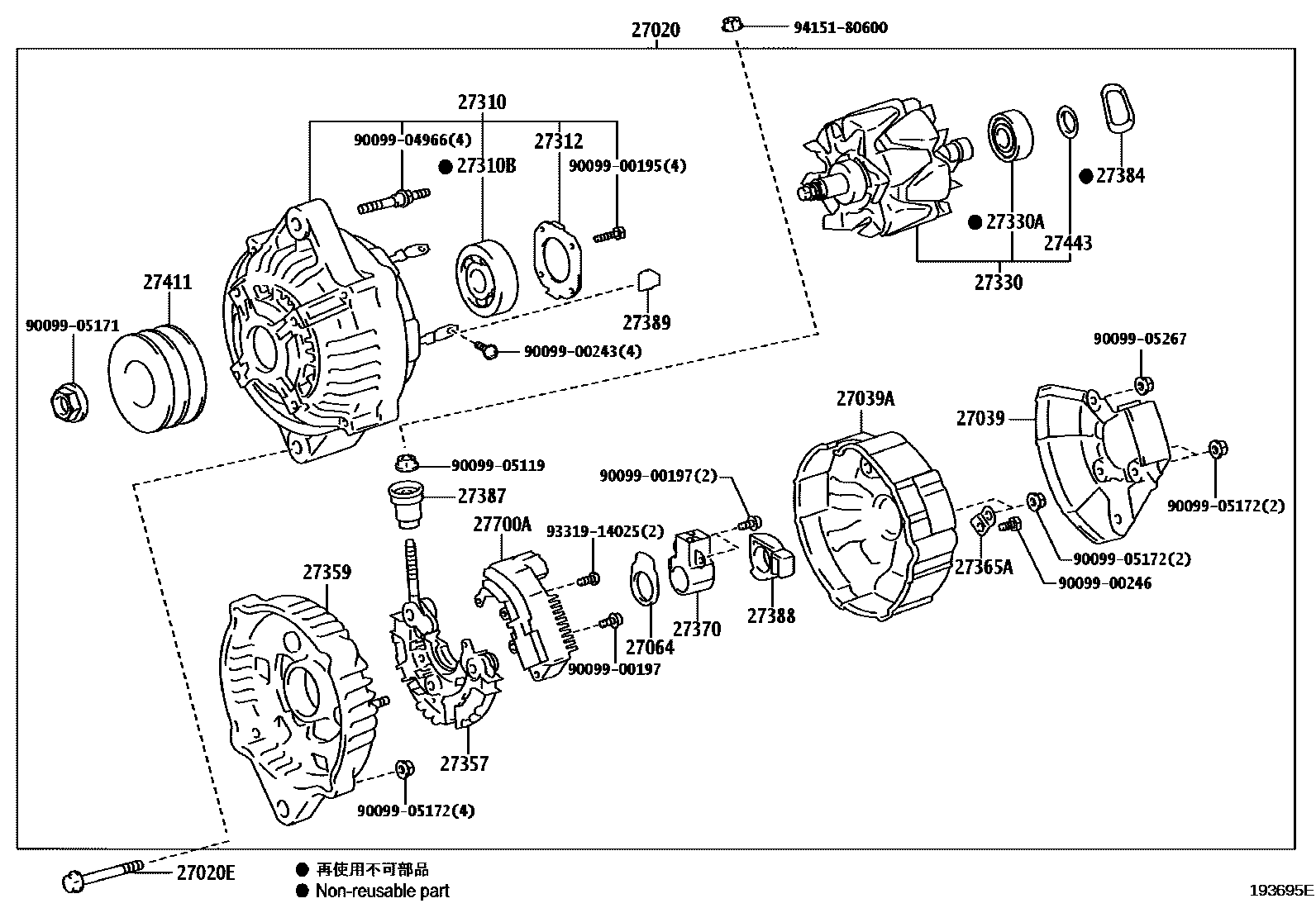

Toyota DYNA — ALTERNATOR

27020ALTERNATOR ASSY

main27040-E0030i201305-202005

24V 30A

mainS270501112i201107-201305

24V 30A

main27060-78310supersedes 27060-78300i201911

24V 80A,ALTERNATOR-24V 80A

main27060-E0320supersedes 27060-78210i201107-202005

24V 80A,ALTERNATOR-24V 80A

27020EBOLT(FOR ALTERNATOR)

mainSZ10510067i201107-201505

27039COVER, ALTERNATOR REAR END

main27039-20160i201107-201505

main27039-78240supersedes 27039-20160i201911

ALTERNATOR-24V 80A

27039ACOVER, ALTERNATOR REAR END, NO.2

main27039-58330i201107-201505

27064SEAL, ALTERNATOR PLATE

main27064-42010i201107-201505

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-EV010i201107-201505

mainS273101451i201107-202005

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10219i201107-201505

main90099-10226i201911

mainS282521830i201107-201305

mainSZ37120003i201305-202005

27312PLATE, RETAINER

main27312-42010i201107-202005

mainS273121500i201107-202005

27330ROTOR ASSY, ALTERNATOR

main27330-17240i201107-202005

mainS273301990i201107-202005

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i201107-201512

mainS282521530i201107-202005

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-17080i201107-201505

27359FRAME, ALTERNATOR RECTIFIER END

main27359-58050i201107-201505

mainS273592441i201107-202005

27365APLATE, RECTIFIER

main27365-55080i201107-201505

27370HOLDER ASSY, ALTERNATOR BRUSH

mainS273701360i201107-202005

main27370-58460supersedes 27370-75060i201911

ALTERNATOR-24V 80A

mainS273701370supersedes 27370-75060i201107-201505

ALTERNATOR-24V 80A

27384WASHER

main27384-50030i201107-201505

27387INSULATOR, TERMINAL

mainS273891310×2i201107-202005

main27387-20130supersedes 27387-42021i201911

ALTERNATOR-24V 80A

mainS273871350supersedes 27387-42021i201107-201505

ALTERNATOR-24V 80A

27388COVER, ALTERNATOR BRUSH

main27388-46220i201911

mainS273881280i201107-202005

27389INSULATOR, TERMINAL

main27389-42010×4i201911

mainS273891320i201107-202005

27411PULLEY, ALTERNATOR

mainS274311350i201107-202005

main27411-78310supersedes 27411-32020i201911

ALTERNATOR-24V 80A

mainS274311810supersedes S274311800i201107-201505

ALTERNATOR-24V 80A

27443COVER, ALTERNATOR BEARING

main27443-63020i201107-202005

mainS271331070i201107-202005

27700AREGULATOR ASSY, GENERATOR

main27700-78210i201107-201512

main27702-78300i201904-202005

mainS277001450i201107-202005

9009900195

main90099-00195

9009900197

main90099-00197

9009900243

main90099-00243

9009900246

main90099-00246

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9009905267

main90099-05267

9331914025

main93319-14025

9415180600

main94151-80600

32 parts on this diagram · 5 diagrams in section

ALTERNATOR for Toyota DYNA

This section contains 78 genuine Toyota parts for the ALTERNATOR system of the Toyota DYNA. Key components include: BAR, FAN BELT ADJUSTING, VACUUM PUMP, ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END.
