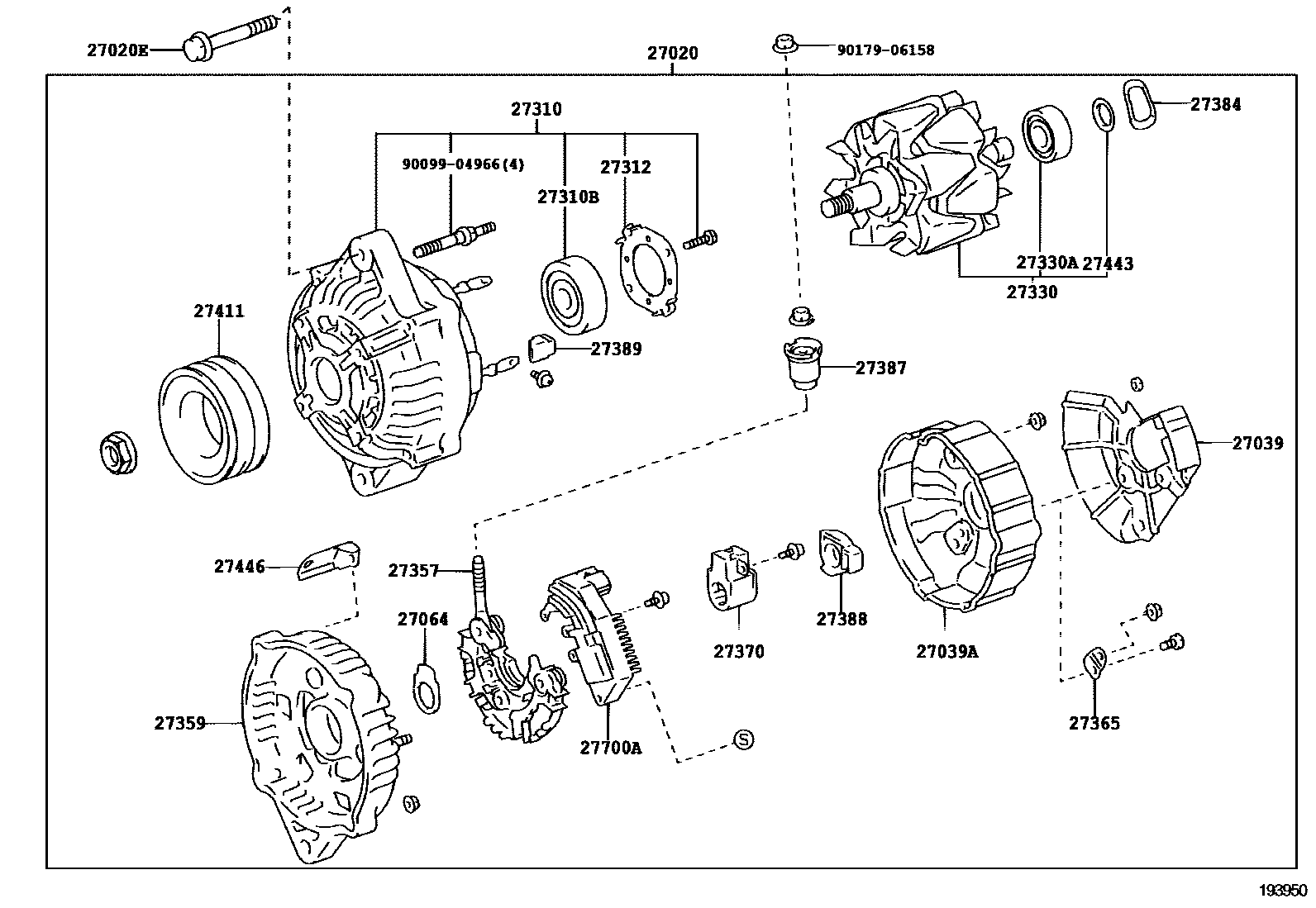

Toyota DYNA — ALTERNATOR

27020ALTERNATOR ASSY

main27040-78040i200212-200311

24V 30A

main27040-78041i200311-200406

24V 30A

main27040-78042i200406-200610

24V 30A

main27060-58390i200411-200701

24V 50A

main27060-78010i200110-200608

24V 50A

main27060-78090i200212-200610

24V 30A

main27060-78101i200608-200611

24V 60A

main27060-78140i200610-201010

24V 60A

main27060-78190i201010

24V 60A

27020EBOLT(FOR ALTERNATOR)

main90031-05093i200610

main90031-05165i200110-200610

main90148-10001i200411-200701

27039COVER, ALTERNATOR REAR END

main27039-50090i200110-200608

main27039-58330i201010

27039ACOVER, ALTERNATOR REAR END, NO.2

main27039-58330i200110-200608

27064SEAL, ALTERNATOR PLATE

main27064-42010i200110-200608

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-58080i200110-200610

24V 50A

main27310-78190i201010

main27310-89106i200212-200311

main27310-89107i200212-200610

24V 30A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10192i200110-200610

main90099-10219i201010

27312PLATE, RETAINER

main27312-42010i200110-200608

27330ROTOR ASSY, ALTERNATOR

main27330-17240i200608-200708

main27330-58050i200110-200701

main27330-89106i200311-200802

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i200110-200608

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-17080i200110-200708

27359FRAME, ALTERNATOR RECTIFIER END

main27359-58050i200110-200802

27365PLATE, TERMINAL

main27365-55080i200110-200608

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i201010

main27370-89102i200610-201106

24V 30A

27384WASHER

main27384-50030i200110-200608

27387INSULATOR, TERMINAL

main27387-42021i200110-200608

27388COVER, ALTERNATOR BRUSH

main27388-46220i200110-200608

27389INSULATOR, TERMINAL

main27389-42010×4i200110-200608

27411PULLEY, ALTERNATOR

main27411-58330i200411-200701

24V 50A

main27411-89102i200110-200608

24V 50A

main27411-89108i200608-200708

24V 60A

main27430-78020i200311-200802

24V 30A

27443COVER, ALTERNATOR BEARING

main27443-63020i200110-200802

27446CLIP, ALTERNATOR CORD

main27446-50260i200110-200608

27700AREGULATOR ASSY, GENERATOR

main27700-58060i200110-200701

main27700-89103i200311-200802

9009904966

main90099-04966

9017906158

main90179-06158

24 parts on this diagram · 7 diagrams in section

ALTERNATOR for Toyota DYNA

This section contains 71 genuine Toyota parts for the ALTERNATOR system of the Toyota DYNA. Key components include: BAR, FAN BELT ADJUSTING, VACUUM PUMP, ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR.
