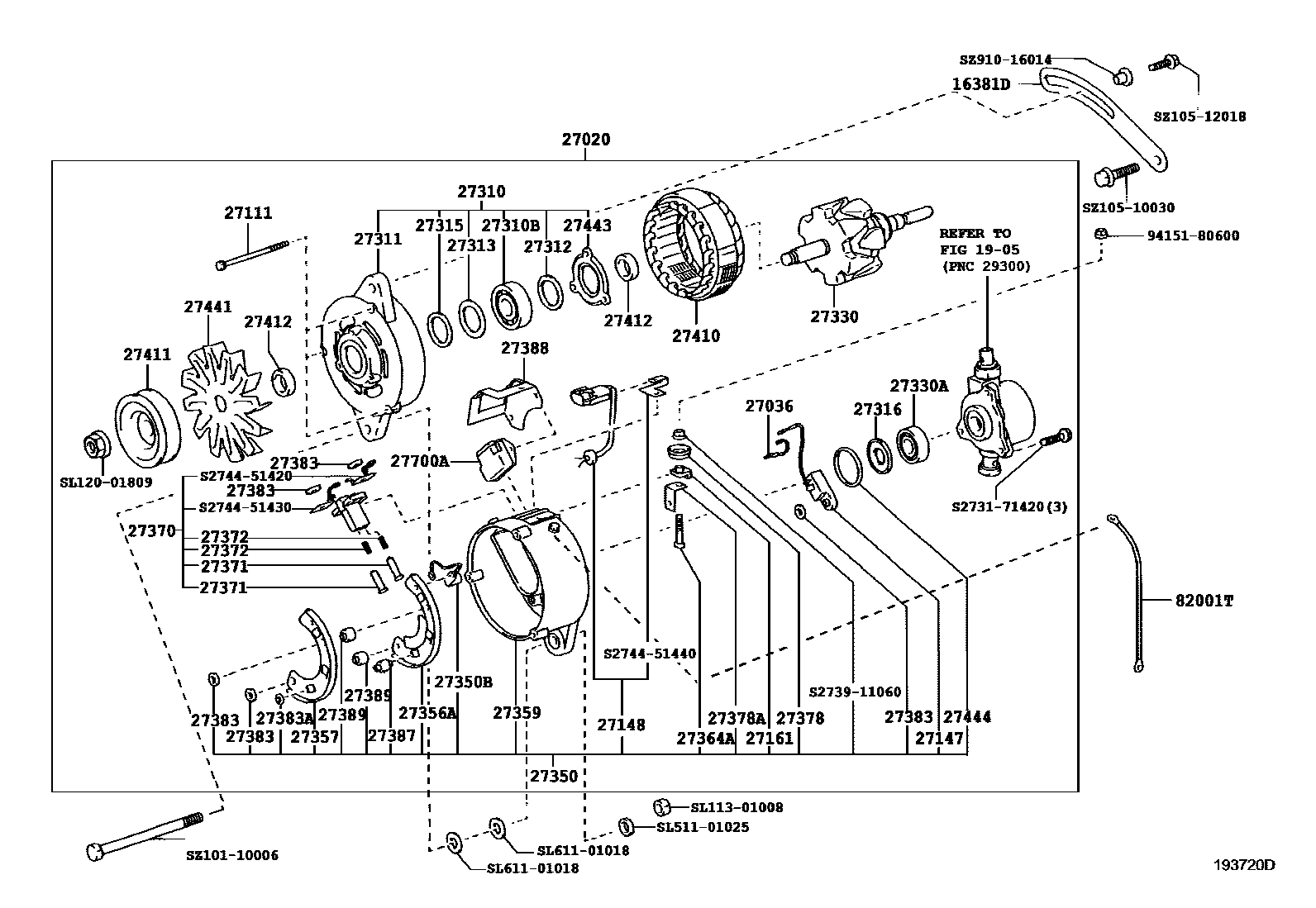

Toyota DYNA — ALTERNATOR

16381DBAR, FAN BELT ADJUSTING

mainS125091890i201107-202005

1905VACUUM PUMP

→ Go to FIG 19-05

27020ALTERNATOR ASSY

main27040-E0030i201305-202005

24V 30A

main27060-78300i201911

24V 60A

mainS270501112i201107-201305

24V 30A

main27060-E0320supersedes 27060-78210i201605-202005

24V 80A,ALTERNATOR-24V 80A

27036TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR

mainS271471340i201107-202005

27111BOLT, ALTERNATOR

mainS273171101×3i201107-202005

27147TERMINAL, W/LEAD WIRE

mainS273581810i201107-202005

27148WIRE, ALTERNATOR CONNECTING

mainS273581750i201107-202005

27161INSULATOR, BRUSH HOLDER, B

mainS273831420i201107-202005

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-EV010i201911

mainS273101451i201107-202005

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10226i201605-202005

mainS282521830i201107-201305

mainSZ37120003i201305-202005

27311FRAME, ALTERNATOR DRIVE END

mainS273111401i201107-202005

27312PLATE, RETAINER

main27312-42010i201605-202005

mainS273121500i201107-202005

27313COVER, ALTERNATOR FELT, INNER NO.2

mainS273131150i201107-202005

27315COVER, ALTERNATOR FELT, INNER NO.1

mainS273151170i201107-202005

27316PACKING, RETAINER PLATE, ALTERNATOR

mainS273161050i201107-202005

27330ROTOR ASSY, ALTERNATOR

main27330-17240i201605-202005

mainS273301990i201107-202005

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i201911

mainS282521530i201107-202005

27350FRAME ASSY, RECTIFIER END

mainS273503011i201107-202005

27350BCONDENSER, ALTERNATOR

mainS273551110i201107-202005

27356AHOLDER SUB-ASSY, RECTIFIER

mainS273561440i201107-202005

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-17080i201911

mainS273531770i201107-202005

27359FRAME, ALTERNATOR RECTIFIER END

main27359-58050i201605-202005

mainS273592441i201107-202005

27364ABOLT, ALTERNATOR TERMINAL

mainS273641500i201107-202005

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i201911

mainS273701360i201107-202005

mainS273701370supersedes 27370-75060i201605-202005

ALTERNATOR-24V 80A

27371BRUSH, ALTERNATOR

mainS273711210×2i201107-202005

27372SPRING, ALTERNATOR BRUSH

mainS273721150×2i201107-202005

27378INSULATOR, ALTERNATOR, NO.1

mainS273781690i201107-202005

27378AINSULATOR, ALTERNATOR, NO.2

mainS273781700i201107-202005

27383WASHER, ALTERNATER TERMINAL INSULATOR, NO.1

mainS273831330×4i201107-201305

27383AWASHER, ALTERNATER TERMINAL INSULATOR, NO.2

mainS273831440i201107-202005

27387INSULATOR, TERMINAL

mainS273891320i201107-202005

mainS273871350i201605-202005

ALTERNATOR-24V 80A

27388COVER, ALTERNATOR BRUSH

main27388-46220i201605-202005

mainS273881280i201107-202005

27389INSULATOR, TERMINAL

main27389-42010×4i201911

mainS273891310×2i201107-202005

27410STATOR ASSY, ALTERNATOR

mainS274101580i201107-202005

27411PULLEY, ALTERNATOR

main27411-32020i201911

mainS274311350i201107-202005

mainS274311810supersedes S274311800i201605-202005

ALTERNATOR-24V 80A

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

mainS274121130×2i201107-202005

27441FAN, ALTERNATOR

mainS274411140i201107-202005

27443COVER, ALTERNATOR BEARING

main27443-63020i201605-202005

mainS271331070i201107-202005

27444PACKING, ALTERNATOR BEARING COVER

mainSZ30139008i201107-202005

27700AREGULATOR ASSY, GENERATOR

main27700-78210i201605-201904

main27702-78300i201904-202005

mainS277001450i201107-202005

82001TCABLE, BOND

main82121-E0D60i201107-202005

9415180600

main94151-80600

S273171420

mainS2731-71420

S273911060

mainS2739-11060

S274451420

mainS2744-51420

S274451430

mainS2744-51430

S274451440

mainS2744-51440

SL11301008

mainSL113-01008

SL12001809

mainSL120-01809

SL51101025

mainSL511-01025

SL61101018

mainSL611-01018

SZ10110006

mainSZ101-10006

SZ10510030

mainSZ105-10030

SZ10512018

mainSZ105-12018

SZ91016014

mainSZ910-16014

55 parts on this diagram · 3 diagrams in section

ALTERNATOR for Toyota DYNA

This section contains 76 genuine Toyota parts for the ALTERNATOR system of the Toyota DYNA. Key components include: BAR, FAN BELT ADJUSTING, VACUUM PUMP, ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR.
