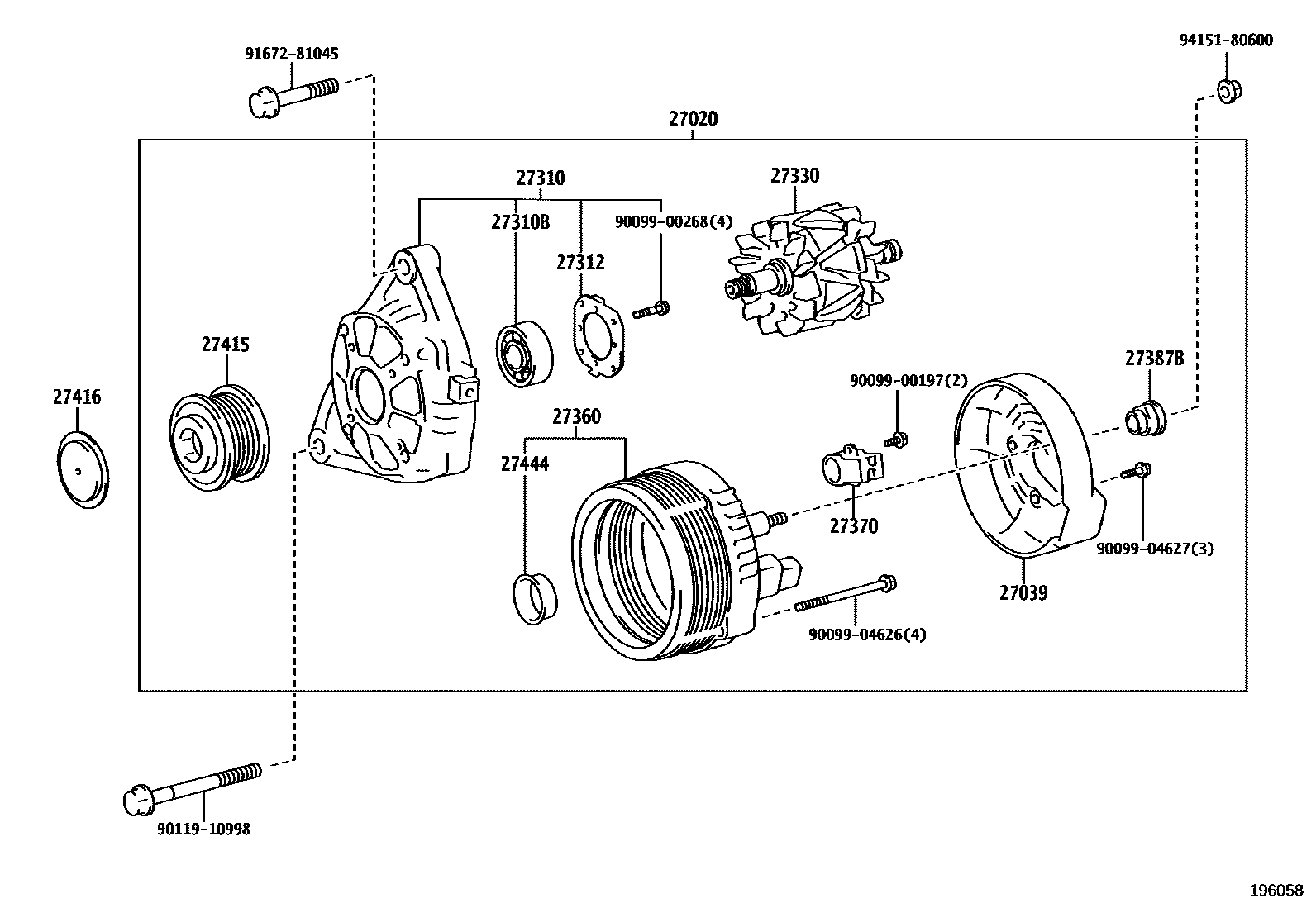

Toyota DYNA — ALTERNATOR

27020ALTERNATOR ASSY

main27060-54340i202202-202503

12V 70A

main27060-11400supersedes 27060-11390i202108-202305

12V 130A,ALTERNATOR-12V 130A

27039COVER, ALTERNATOR REAR END

main27039-11400i202108-202305

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-11400supersedes 27310-11390i202108-202305

ALTERNATOR-12V 130A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i202108-202305

27312PLATE, RETAINER

main27312-72100i202108-202305

27330ROTOR ASSY, ALTERNATOR

main27330-64190i202202-202503

main27330-37220supersedes 27330-47330i202108-202305

ALTERNATOR-12V 130A

27360COIL ASSY, ALTERNATOR

main27360-11400supersedes 27360-11390i202108-202305

ALTERNATOR-12V 130A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31650i202108-202305

main27370-75060i202202-202503

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-31580i202108-202305

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-11010i202108-202305

27416CAP, ALTERNATOR PULLEY

main27416-30020i202108-202305

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i202108-202305

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9011910998

main90119-10998

9167281045

main91672-81045

9415180600

main94151-80600

19 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota DYNA

This section contains 24 genuine Toyota parts for the ALTERNATOR system of the Toyota DYNA. Key components include: VACUUM PUMP, ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR.
