Toyota DYNA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0011 1 0012 1 0013 1 0014 1 0016 1 0017 1

78100LINK ASSY, ACCELERATOR

main78100-37620iBU410,420200110-200701

main78100-37641iXZU420,430200304-200802

main78100-37651iXZU404,414,424..GEN200110-200112

main78100-37652iXZU404,414,424,434..RHD200112-200610

main78100-37721iWU410,XZU412,422..LHD..5F200302-200610

main78100-37740iWU410,420..SA200212-200802

main78100-37820iXZU415,425,435200608-200708

sub78100-37821

78111PEDAL, ACCELERATOR

main78110-95410iWU410..65T;WU410,XZU423..75T..GEN;WU412,42#,XZU413,415,417,419,425,427,429,435,439..DCRTJ,DCRTK,DSL200610-201208

78117CUSHION (FOR ACCELERATOR ROD)

main90541-06038iXZU414,424,434..EUR200110-200608

78130BELLCRANK ASSY, ACCELERATOR

main78130-37021iXZU404,414,424,434..ARL,GEN200212-200610

main78130-37100iXZU404,414,424..GEN200110-200212

main78130-37131iXZU417,427;XZU413,423..5F200610-201106

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-37481iXZU404,414,424..GEN200110-200112

main78150-37482iXZU404,414,424,434..RHD200112-200610

main78150-37490iBU410,420200110-200701

main78150-37530iXZU412,422..RHD..DSL200212-200610

main78150-37580iXZU412,422..LHD..DSL200302-200610

sub78150-37581

main78150-37640iXZU412..RHD..TD200212-200610

main78150-37650iXZU412,422..LHD..5F..TD200212-200610

main78150-37651iXZU412,422200612-200802

main78150-37660iWU410,420..RHD200212-200310

main78150-37661iWU410..RHD..GEN200310-200610

main78150-37670iWU410..LHD200212-200610

sub78150-37671

main78150-37720iWU420;WU410..RHD..65T;WU410..75T..GEN200610-200906

main78150-37721iWU410..RHD200906-201106

main78150-37730iWU410..LHD200610-200611

main78150-37731iWU410..LHD200612-201106

main78150-37750iWU412,422200610-200611

main78150-37751iWU412,422200612-201106

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-26170iXZU414,424,434..EUR200110-200608

main78183-37260iWU410..RHD..GEN200212-200610

TYPE A:REFER ILLUST.

main78183-37300×2iXZU412,422..RHD..DSL200212-200610

TYPE D:REFER ILLUST.

main78183-37310iWU410,XZU412,422..RHD..GEN..DSL200212-200610

TYPE F:REFER ILLUST.

main78183-37330iXZU412,422..LHD..DSL200302-200610

TYPE B:REFER ILLUST.

main78184-37440iWU41#,422..LHD200612-201106

main78184-37461iWU410..RHD200906-201106

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-37060iWU410,XZU412,422..RHD..GEN200212-200610

main78208-37070iXZU420,430200304-200802

main78208-37080iXZU404,414,424,434..RHD200110-200610

main78208-37090iXZU414,424..LHD..GEN200110-200610

main78208-37100iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-201208

sub78208-37170

9011306013

main90113-06013

9011906899

main90119-06899

9017010054

main90170-10054

9017906204

main90179-06204

9095001865

main90950-01865

91511B0816

main91511-B0816

91631J0612

main91631-J0612

91651B0616

main91651-B0616

9331314014

main93313-14014

9413060600

main94130-60600

9616001000

main96160-01000

9645601000

main96456-01000

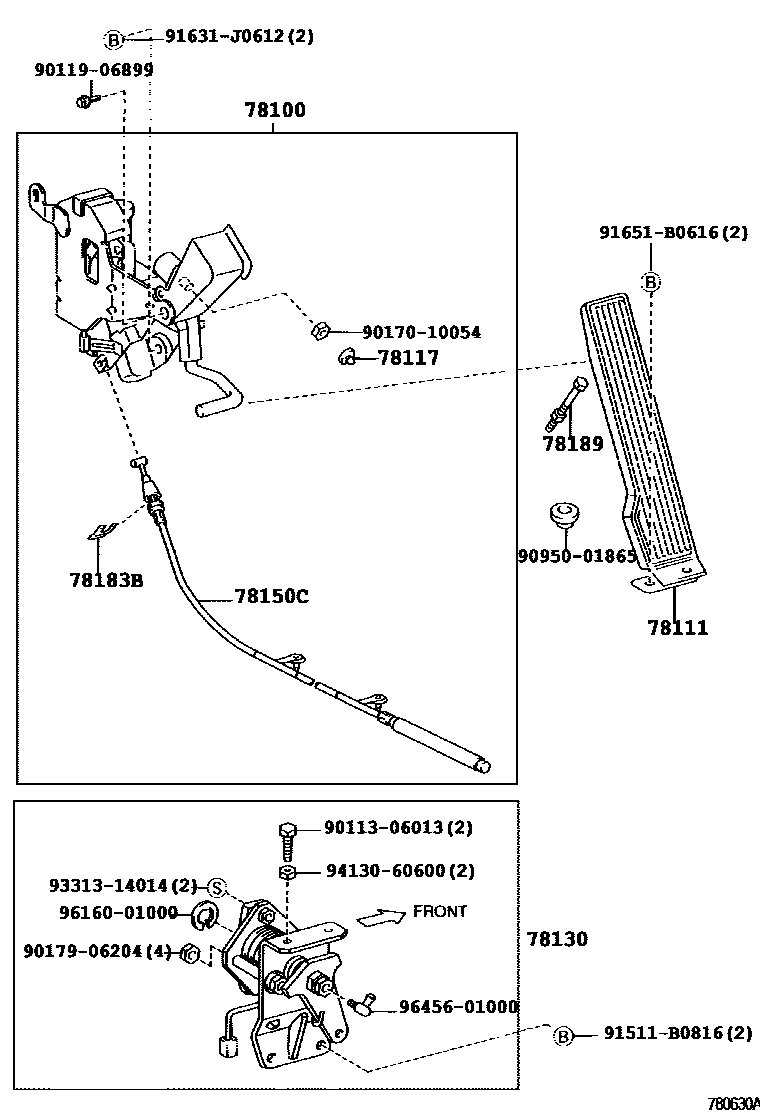

19 parts on this diagram · 13 diagrams in section
