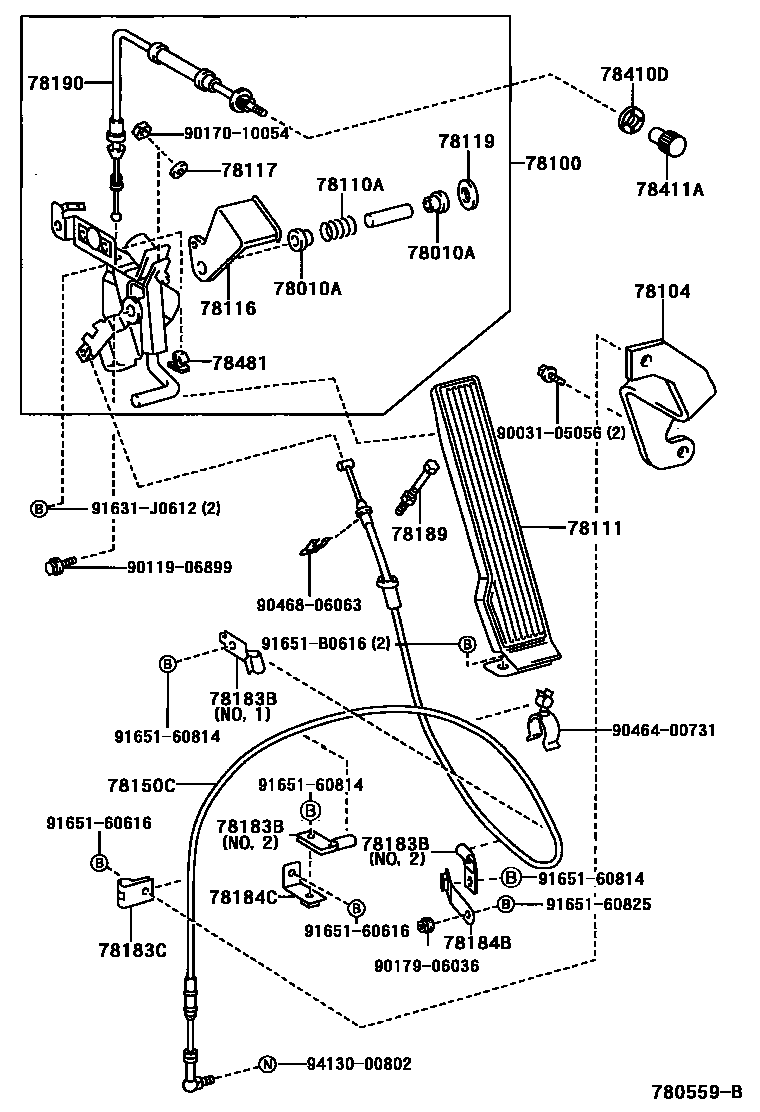

Toyota DYNA — ACCELERATOR LINK
78010ABUSH (FOR ACCELERATOR LINK)
78100LINK ASSY, ACCELERATOR
78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
subS7810-47442
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78116COVER, ACCELERATOR PEDAL ROD
78117CUSHION (FOR ACCELERATOR ROD)
78119STOPPER, ACCELERATOR PEDAL ROD
sub78119-37010
78150CWIRE ASSY, ACCELERATOR FLEXIBLE
78183BCLAMP, ACCELERATOR CONTROL CABLE
NO.2:REFER TO ILLUSTRATION
NO.1:REFER TO ILLUSTRATION
78183CCLAMP, ACCELERATOR CONTROL CABLE
78184BBRACKET, ACCELERATOR CONTROL CABLE
78184CBRACKET, ACCELERATOR CONTROL CABLE
78189BOLT, ACCELERATOR PEDAL STOPPER
78190CABLE ASSY, ACCEL CONTROL W/THROTTLE
78410DNUT, THROTTLE
78411AKNOB, THROTTLE CONTROL CABLE
78481CLAMP, THROTTLE WIRE
9003105056
main90031-05056
9011906899
main90119-06899
9017010054
main90170-10054
9017906036
main90179-06036
9046400731
main90464-00731
9046806063
main90468-06063
91631J0612
main91631-J0612
9165160616
main91651-60616
9165160814
main91651-60814
9165160825
main91651-60825
91651B0616
main91651-B0616
9413000802
main94130-00802
30 parts on this diagram · 3 diagrams in section
