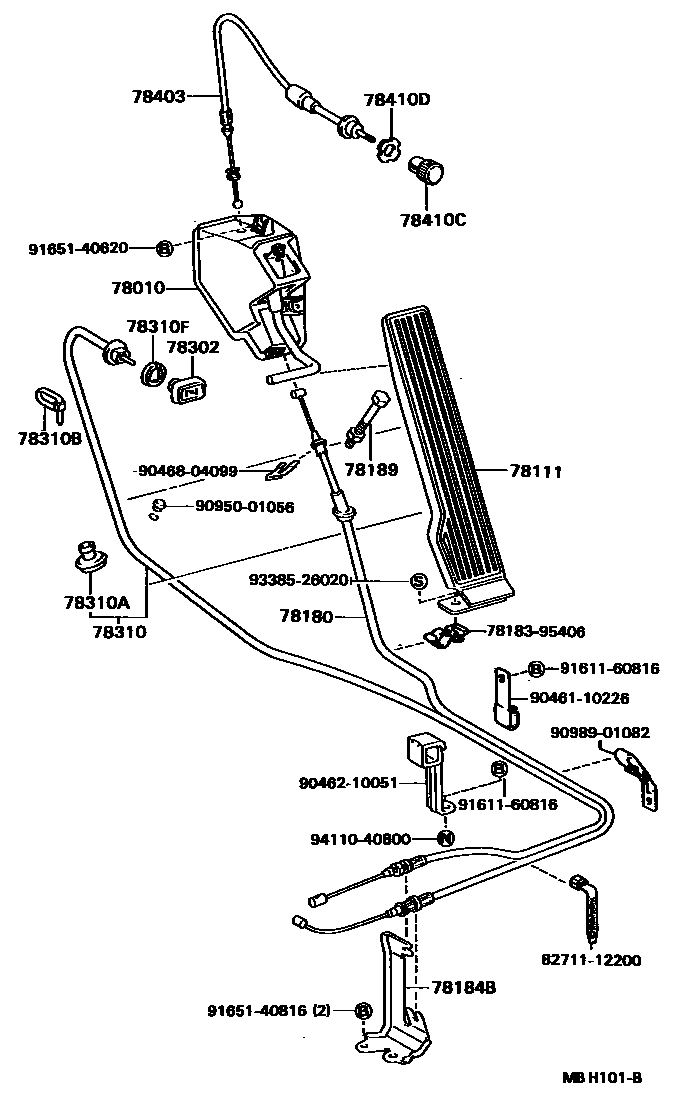

Toyota DYNA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1

78010LINK, ACCELERATOR

main78202-95010iYU60,62,8#..RHD198508-198708

main78202-95011iRU75,85,YU6#,7#,8#..LHD198508-198708

main78202-95400iYU60,80..RHD198409-198508

main78202-95401iWU9#..LHD198508-198708

main78202-95402iRU85,WU9#..RHD198409-198708

78111PEDAL, ACCELERATOR

main78010-95400iRU75,85,WU9#..LHD198409-198708

main78110-95014iYU6#,7#,8#..LHD198409-198708

main78110-95410iRU85,WU9#,YU60,62,8#..RHD198409-198708

78180WIRE ASSY, ACCELERATOR

main78150-95461iYU60,62,8#..RHD198409-198708

sub78150-37070

main78150-95464iYU6#,7#,8#..LHD198409-198708

sub78150-37100

main78150-95468iWU9#..RHD198409-198708

sub78150-37200

main78150-95470iWU9#..LHD198409-198708

main78150-95471iRU75,85..GEN198409-198708

sub78150-37110

main78150-95476iRU85..SA198608-198708

sub78150-37120

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-95401iWU9#198409-198708

main78184-95402iYU6#,7#,8#198409-198708

main78184-95404iRU75,85..GEN198409-198708

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-95400iRU85,WU9#,YU60,62,8#..RHD198409-198708

sub78208-95406

main78208-95402iYU6#,7#,8#..LHD198409-198708

main78208-95403iRU75,85,WU9#..LHD198409-198708

sub78208-95406

78302KNOB SUB-ASSY, CHOKE ROD

main78302-95400iYU6#,7#,8#198409-198708

78310CABLE ASSY, CHOKE

main78304-95400iYU60,80..RHD198409-198508

main78304-95401iYU6#,70,80..LHD198409-198508

main78304-95402iYU60,62,8#..RHD198508-198708

main78304-95403iYU6#,7#,8#..LHD198508-198708

78310AGROMMET, CHOKE CABLE

main90480-15194iYU6#,7#,8#198409-198708

78310BCLAMP, CHOKE CABLE

main82711-12200iYU6#,7#,8#198409-198708

78310FNUT, CHOKE

main78314-95010iYU6#,7#,8#198508-198708

main78413-95J00iYU6#,70,80198409-198508

78403CABLE SUB-ASSY, THROTTLE CONTROL

main78404-95011iRU85,WU9#,YU60,62,8#..RHD198508-198708

sub78404-37020

main78404-95012iRU75,85,WU9#,YU6#,7#,8#..LHD198508-198708

main78404-95400iWU9#,YU60,80..RHD198409-198508

main78404-95401iRU75,85,WU9#,YU6#,70,80..LHD198409-198508

78410CKNOB, THROTTLE CABLE

main78411-22010iRU75,85,WU9#,YU6#,7#,8#198409-198708

78410DNUT, THROTTLE

main78314-95010iRU75,85,WU9#,YU6#,7#,8#198508-198708

main78413-95J00iRU75,85,WU9#,YU6#,70,80198409-198508

7818395406BRACKET, ACCELERATOR LINK ROD

main78183-95406

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9046110226

main90461-10226

9046210051

main90462-10051

9046804099

main90468-04099

9095001056

main90950-01056

9098901082

main90989-01082

9161160816

main91611-60816

9165140620

main91651-40620

9165140816

main91651-40816

9338526020

main93385-26020

9411040800

main94110-40800

25 parts on this diagram · 5 diagrams in section
