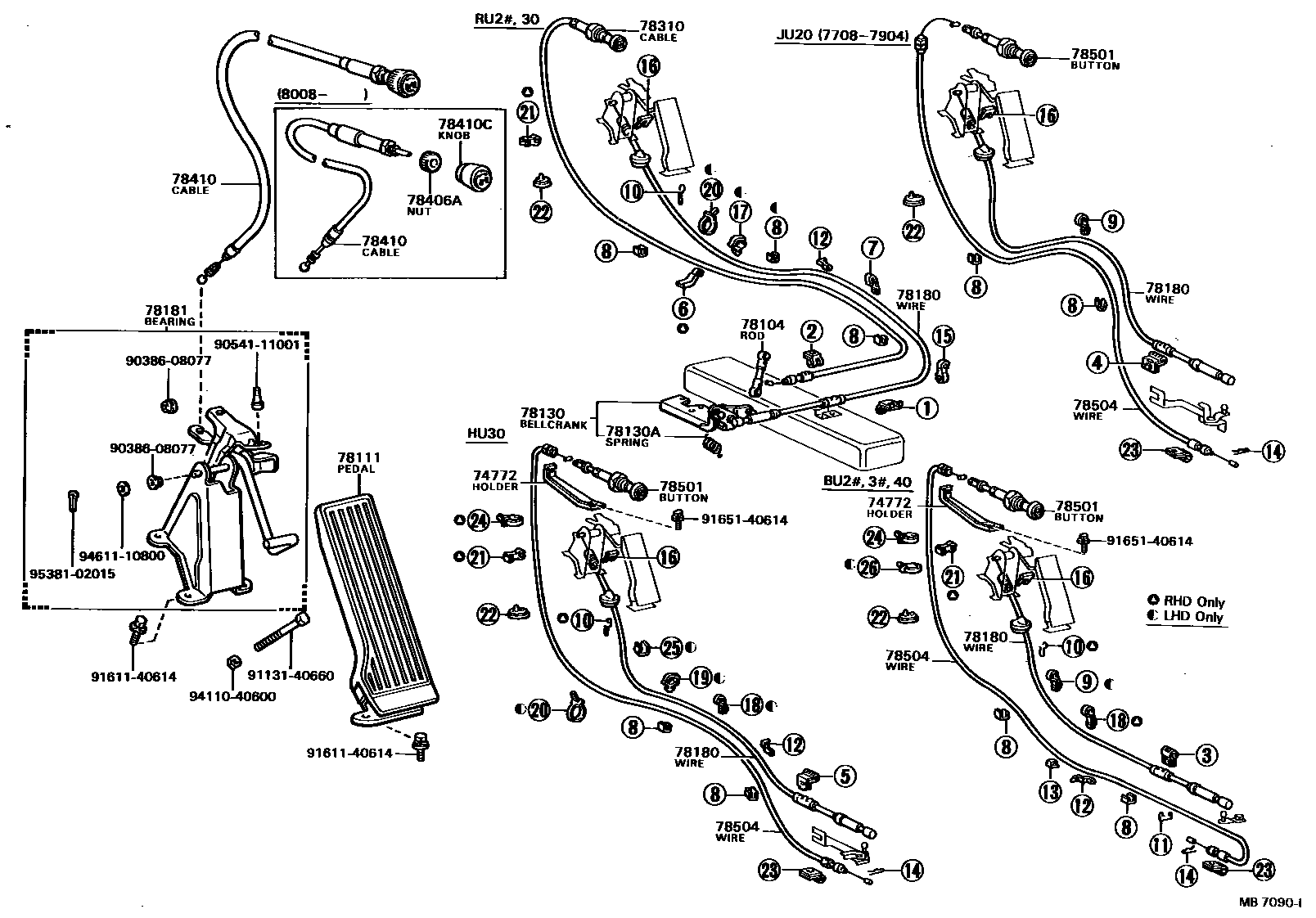

Toyota DYNA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

74772HOLDER, STOP AND THROTTLE WIRE

main74772-95406iBU20,25,30,HU30,WU40,50..LHD198008-198408

main74772-95407iBU20,30,36,WU40..RHD..(GEN,GHI)198008-198411

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-20041iRU2#,30197708-198408

78111PEDAL, ACCELERATOR

main78110-95410iBU40,WU40..RHD198204-198408

main78110-95413iBU36,40,WU40,50..LHD198204-198408

78130BELLCRANK ASSY, ACCELERATOR

main78130-36014iRU2#,30197708-197903

main78130-95111iRU2#,30197903-198408

78130ASPRING (FOR ACCELERATOR ROD RETURN)

main90508-16087iRU2#,30197708-198408

78180WIRE ASSY, ACCELERATOR

main78150-95439iBU20,30,32..RHD..(T1,T2,T3)198008-198411

W/TILT CAB

main78150-95440iHU30197803-198104

main78150-95442iRU2#,30..RHD197708-198408

main78150-95443iBU2#,30,31,32..LHD197708-198408

main78150-95445iHU30..LHD197708-197803

main78150-95446iRU2#,30..LHD197708-198008

main78150-95448iBU20,30..RHD197708-198008

main78150-95449iJU20197708-197904

main78150-95450iBU36,40..RHD198204-198408

main78150-95451iRU2#,30..LHD198008-198408

main78150-95452iHU40,50198204-198408

main78150-95453iBU36,40..LHD198302-198408

main78150-95457iWU40..RHD198304-198408

main78150-95458iWU40,50..LHD198304-198408

78181BEARING, ACCELERATOR PEDAL ROD SUPPORT

main78180-95443iBU36,40..RHD198204-198401

main78180-95445iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

main78180-95446iBU20,30..RHD..(GEN,GHI)..(CBU,IV3)198008-198411

EXHAUST BRAKE

main78180-95447iBU36,40..RHD198204-198401

EXHAUST BRAKE

main78180-95448iBU36,40,HU40,50,WU40..RHD198401-198408

EXHAUST BRAKE

main78180-95449iHU40,50,WU40..RHD198204-198401

main78180-95450iBU36,40,WU40,50..LHD198302-198408

main78180-95451iBU36,40,WU40,50..LHD198302-198408

EXHAUST BRAKE

78310CABLE ASSY, CHOKE

main78310-95402iRU2#,30..RHD197708-198008

main78310-95403iRU2#,30..LHD197708-198008

main78310-95406iRU20,30..RHD198008-198204

main78310-95407iRU2#,30..LHD198008-198204

main78310-95408iRU20,30..RHD198204-198408

main78310-95409iRU2#,30..LHD198204-198408

78406ANUT, HOLDER (FOR THROTTLE BUTTON)

main78413-95A00iBU20,25,3#,40,HU30,40,50,RU2#,30,WU40,50198008-198411

78410CABLE ASSY, THROTTLE CONTROL

main78401-95402iBU20,30,32,36,40,HU30,40,50,RU20,30,WU40..RHD198008-198411

main78401-95403iBU20,25,3#,40,HU30,RU2#,30,WU40,50..LHD198008-198408

main78410-95404iBU20,30,HU30,RU2#,30..RHD197708-198008

main78410-95405iBU2#,30,HU30,JU20,RU2#,30..LHD197708-198008

78410CKNOB, THROTTLE CABLE

main78402-95400iBU20,25,3#,40,HU30,40,50,RU2#,30,WU40,50198008-198411

78501BUTTON SUB-ASSY, STOP

main78501-95400iBU2#,30,HU30,JU20..EUR,GEN197708-198008

main78501-95402iBU20,25,30,32,36,HU30,WU40,50..EUR,GEN,GHI198008-198411

78504WIRE SUB-ASSY, STOP FLEXIBLE

main78504-95413iBU20,30..RHD197708-197805

main78504-95415iHU30..RHD197708-198008

main78504-95416iHU30..LHD197708-198104

main78504-95417iBU2#,30..LHD197708-197805

main78504-95418iJU20197708-197904

main78504-95419iBU20,30..RHD197805-198411

main78504-95420iBU20,25,30,32..LHD197805-198408

main78504-95422iBU36..RHD198302-198408

main78504-95423iBU36..LHD198304-198408

main78504-95425iWU40..RHD198304-198408

main78504-95426iWU40,50..LHD198304-198408

9038608077

main90386-08077

9054111001

main90541-11001

9113140660

main91131-40660

9161140614

main91611-40614

9165140614

main91651-40614

9411040600

main94110-40600

9461110800

main94611-10800

9538102015

main95381-02015

21 parts on this diagram · 4 diagrams in section
