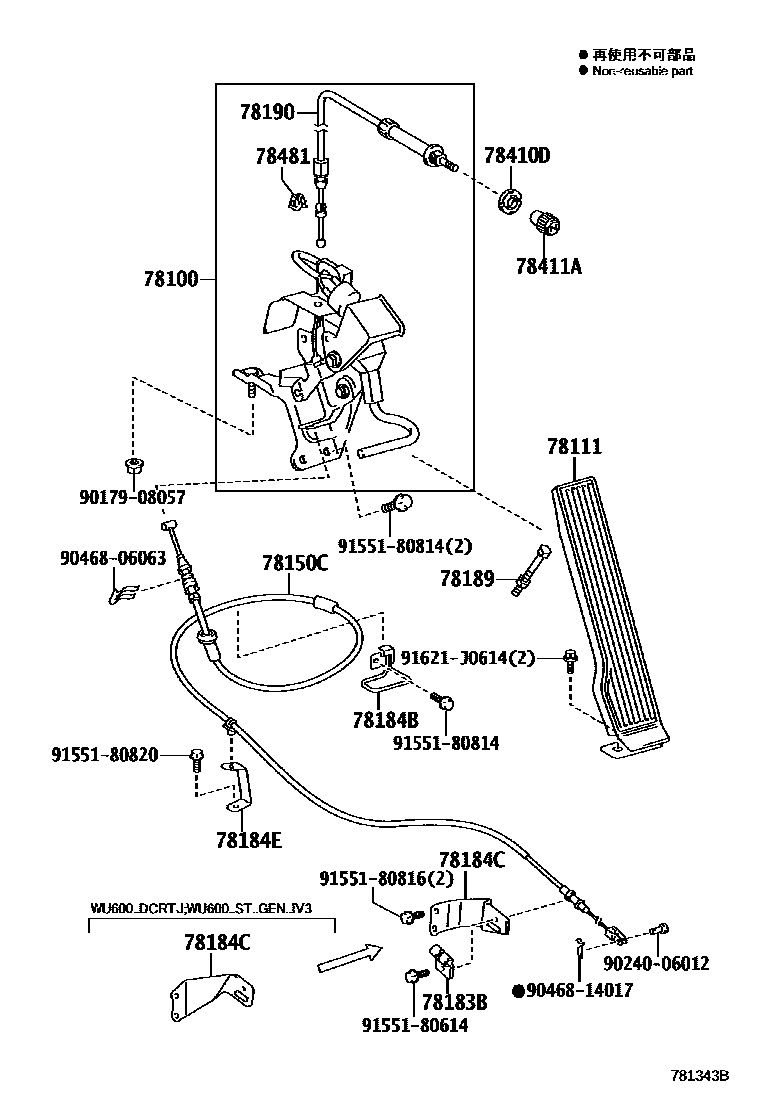

Toyota DYNA — ACCELERATOR LINK

0001 1 0002 1

78100LINK ASSY, ACCELERATOR

main78100-37790iWU600,650201107-202005

78111PEDAL, ACCELERATOR

main78010-37010iWU600,650201107-202005

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-37701iWU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH201107-202005

main78150-37711iWU600..DCRTJ;WU600..ST..GEN..IV3201107-202005

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-37330iWU600,650201107-202005

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-37140iWU600,650201107-202005

78184CBRACKET, ACCELERATOR CONTROL CABLE

main78184-37160iWU600..ST..CBU;WU600..ST..GCC..IV3;WU600,650..WT..DCRTH201107-202005

main78184-37270iWU600..DCRTJ;WU600..ST..GEN..IV3201107-202005

78184EBRACKET, ACCELERATOR CONTROL CABLE

main78184-37260iWU600,650201107-202005

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-37170iWU600,650201107-202005

78190CABLE ASSY, ACCEL CONTROL W/THROTTLE

main78190-37050iWU600,650201107-202005

78410DNUT, THROTTLE

main78314-95010iWU600,650201107-202005

78411AKNOB, THROTTLE CONTROL CABLE

main78411-95J01iWU600,650201107-202005

78481CLAMP, THROTTLE WIRE

main78481-37010iWU600,650201107-202005

9017908057

main90179-08057

9024006012

main90240-06012

9046806063

main90468-06063

9046814017

main90468-14017

9155180614

main91551-80614

9155180814

main91551-80814

9155180816

main91551-80816

9155180820

main91551-80820

91621J0614

main91621-J0614

21 parts on this diagram · 2 diagrams in section
