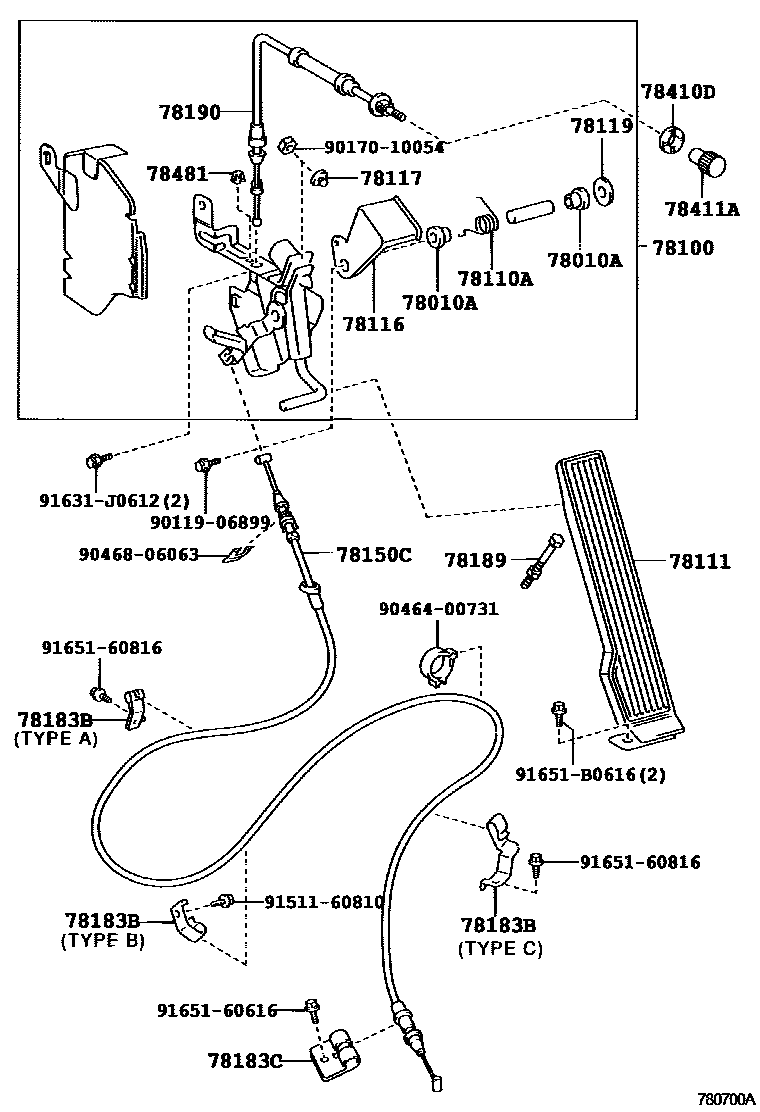

Toyota DYNA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1

78010ABUSH (FOR ACCELERATOR LINK)

main90386-08065×2iBU303,343,WU300,340,XZU342..IDN200209-200612

78100LINK ASSY, ACCELERATOR

main78100-0W010iWU302,342..DCRTP,DCRTR200912-201612

main78100-37600iWU340..RHD..CBU200610-201106

main78100-37612iBU300,340200212-200312

main78100-37620iXZU300,320,330,340200212-200610

main78100-37730iBU303,343,WU300,340..LHD200212-200610

sub78100-37721

main78100-37750iXZU305,345200312-200610

sub78100-37751

main78100-37820iXZU307,327,337,347200610-200901

sub78100-37821

main78100-F1010iWU302,342,352201612

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03243iWU300,340..SA200610-200812

78111PEDAL, ACCELERATOR

main78010-37010iWU30#,34#..LHD200610-201106

main78010-F1010iXZU349..5F;XZU309,359..IV1,IV8202203-202310

main78110-95410iBU303,343,WU300,340,XZU342..IDN200209-200612

78116COVER, ACCELERATOR PEDAL ROD

main78116-37010iWU300,340..SA200610-200812

78117CUSHION (FOR ACCELERATOR ROD)

main90541-06038iBU303,343,WU300,340,XZU300,320,330,340..GCC,GEN,TAIW200209-200610

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-37010iWU30#,34#..GCC,GEN201101-201106

main78119-95J00iWU300,340..SA200209-200802

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-0W010iBU303,343..IDN200209-200612

main78150-0W020iWU300,340..IDN200209-200612

main78150-0W030iXZU342200209-200612

main78150-0W060iWU302,342..(DCRTH,DCRTJ)..IDN200612-201005

main78150-0W070iWU302,342..(DCRTP,DCRTR)..IV3..T3200912

main78150-37482iBU300,340200212-200312

main78150-37490iXZU300,320,330,340200212-200610

main78150-37600iBU303,343..RHD..GEN200212-200610

main78150-37610iBU303,343..LHD200212-200608

main78150-37611iBU303,343..LHD200609-200610

main78150-37620iWU300,340..SA200304-200802

main78150-37630iWU300,340..GCC200212-200608

main78150-37631iWU300,340..GCC200609-200610

main78150-37690iWU300,340..SA200610-200812

main78150-37691iWU340..RHD200906-201106

sub78150-37692

main78150-37700iWU300,340..LHD200610-200611

main78150-37701iWU300,340..LHD200612-201106

main78150-37710iWU302,342200610-200611

main78150-37711iWU302,342..GEN200612-201106

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-0W020iBU303,343..IDN200209-200612

TYPE C:REFER ILLUST.

main78183-0W050iWU302,342..DCRTP,DCRTR200912-201706

main78183-26170iBU300,340200212-200312

main78183-37260×3iWU300,340..IDN200209-200612

TYPE A:REFER ILLUST.

main78183-37300iBU303,343..RHD..GEN200209-200610

TYPE B:REFER ILLUST.

main78183-37330iWU302,342..(DCRTH,DCRTJ)..IDN200610-201005

main78183-37380iBU303,343..RHD..GEN200212-200610

TYPE D:REFER ILLUST.

main78183-YX010iWU302,342,352201706

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-0W010iXZU342200209-200612

TYPE A:REFER ILLUST.

main78183-0W030iWU342..IV3..VBODY;WU302,342,352..IV8201707

main78183-37260iWU340..RHD..CBU200610-200906

main78183-37330iBU303,343,WU300,340..IDN200209-200612

TYPE B:REFER ILLUST.

main78184-37461iWU340..RHD200906-201106

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-37060iWU302,342..DCRTP,DCRTR200912-201612

main78208-37080iBU300,340200212-200312

main78208-37090iXZU300,320,330,340200212-200610

main78208-37100iBU303,343,WU300,340..LHD200212-200610

sub78208-37170

main78208-37140iWU302,342,352201612

78190CABLE ASSY, ACCEL CONTROL W/THROTTLE

main78190-37010iBU303,343..RHD..GEN200209-200610

main78190-37030iBU303,343,WU300,340..LHD200212-200610

sub78190-37020

main78190-F1010iWU302,342..IV3..T3201612

78410DNUT, THROTTLE

main78314-95010iXZU349..6F;XZU309..IV3202203

main78413-95J00iXZU305,345200312-200610

78411AKNOB, THROTTLE CONTROL CABLE

main78411-95J01iWU300,340..SA200209-200802

78481CLAMP, THROTTLE WIRE

main78481-37010iWU302,342..(DCRTH,DCRTJ)..IDN200610-201005

9011906899

main90119-06899

9017010054

main90170-10054

9046400731

main90464-00731

9046806063

main90468-06063

9151160810

main91511-60810

91631J0612

main91631-J0612

9165160616

main91651-60616

9165160816

main91651-60816

91651B0616

main91651-B0616

24 parts on this diagram · 18 diagrams in section
