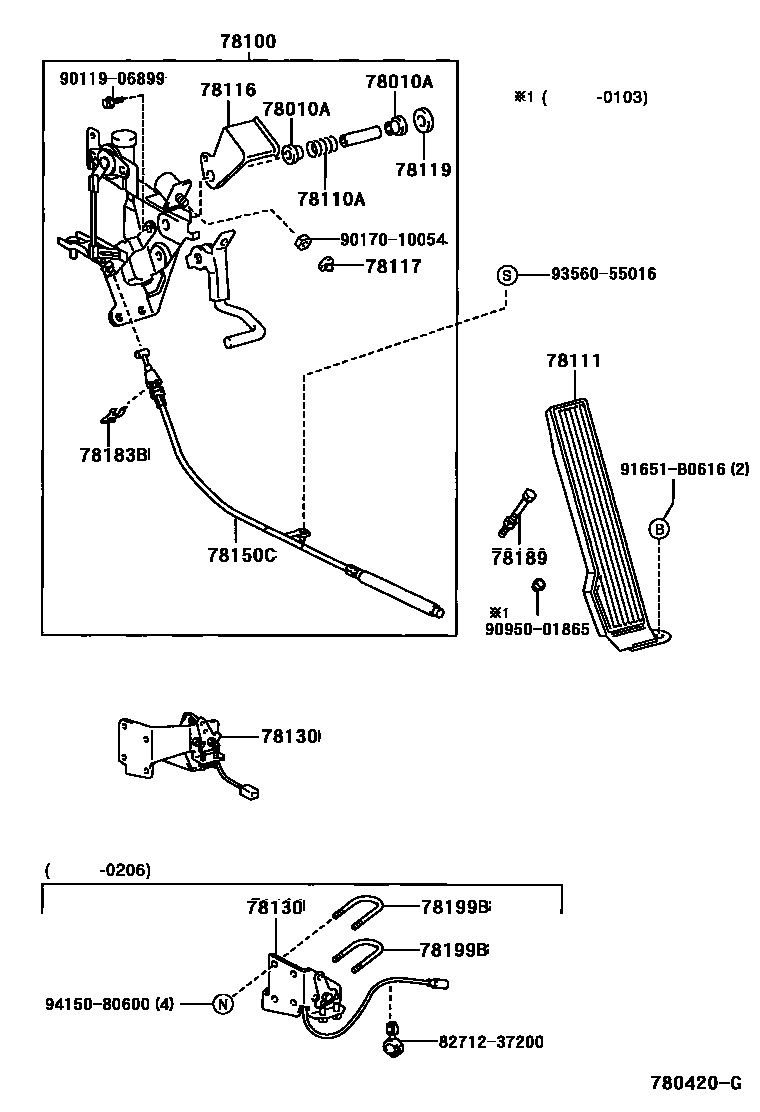

Toyota DYNA — ACCELERATOR LINK

0001 1 0002 1 0003 1

78010ABUSH (FOR ACCELERATOR LINK)

main90386-08065iXZU300,320,330,340199907-200212

78100LINK ASSY, ACCELERATOR

main78100-37611iXZU302,307,342200010-200112

main78100-37612iXZU302,307,342200112-200206

main78100-37620iXZU300,320,330,340199907-200212

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03243iXZU300,320,330,340199907-200212

78111PEDAL, ACCELERATOR

main78010-37010iXZU300,320,330,340199907-200212

main78110-95410iXZU302,307,342200010-200206

78116COVER, ACCELERATOR PEDAL ROD

main78116-37010iXZU300,320,330,340199907-200212

78117CUSHION (FOR ACCELERATOR ROD)

main90541-06036iXZU300,320,330,340199907-200007

main90541-06038iXZU30#,320,330,34#200007-200212

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-95J00iXZU300,320,330,340199907-200212

78130BELLCRANK ASSY, ACCELERATOR

main78130-37021iXZU300,320,330,340200206-200212

main78130-37031iXZU300,320,330,340199907-200008

main78130-37032iXZU300,320,330,340200008-200206

main78130-37081iXZU302,307,342200010-200206

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-37481iXZU302,307,342200010-200112

main78150-37482iXZU302,307,342200112-200206

main78150-37490iXZU300,320,330,340199907-200212

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-26170iXZU30#,320,330,34#199907-200212

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-37080iXZU302,307,342200010-200206

main78208-37090iXZU300,320,330,340199907-200212

78199BPIN, ACCELERATOR CONTROL ROD JOINT

main78199-37030iXZU30#,320,330,34#199907-200206

8271237200CLAMP, WIRING HARNESS

main82712-37200

9011906899

main90119-06899

9017010054

main90170-10054

9095001865

main90950-01865

91651B0616

main91651-B0616

9356055016

main93560-55016

9415080600

main94150-80600

19 parts on this diagram · 3 diagrams in section
