Toyota DYNA — ABS & VSC

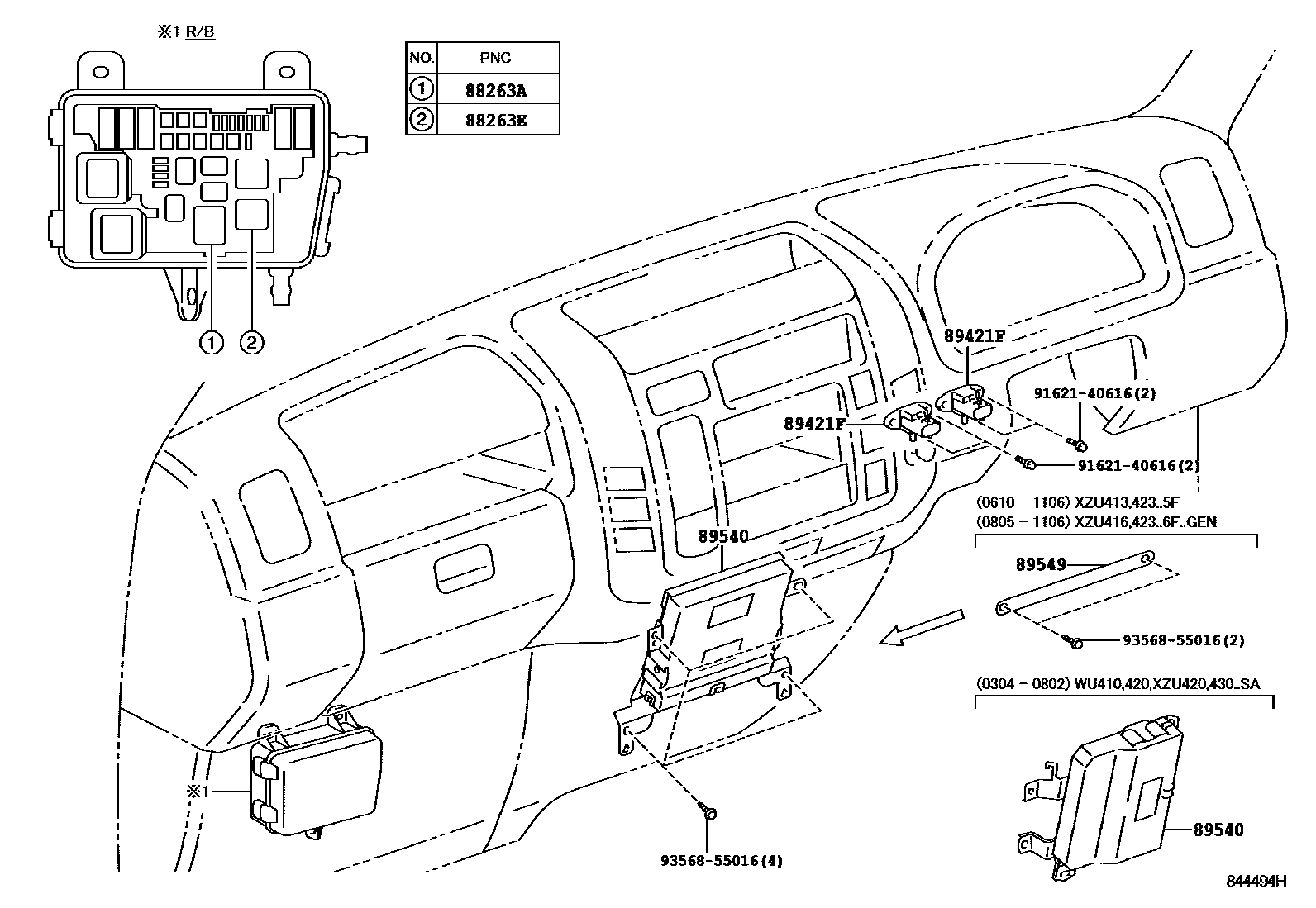

Parts diagram

88263ARELAY, SKID CONTROL

main88263-36040i200110-201208

88263ERELAY, SKID CONTROL NO.2

main88263-36050i200110-201208

89421FSENSOR, VACUUM (FOR SKID CONTROL)

main89421-37010i200110-201008

main89421-37030i201009-201208

89540COMPUTER ASSY, SKID CONTROL

main89540-37082i200304-200802

main89540-37140i200110-200304

main89540-37150i200110-200112

main89540-37151i200112-200610

main89540-37160i200110-200112

main89540-37161i200112-200610

main89540-37190i200112-200212

main89540-37191i200212-200610

main89540-37210i200802-200812

main89540-37280i200608-200905

main89540-37300i200908-201208

89549BRACKET, SKID CONTROL COMPUTER

main89549-37050i200610-201106

9162140616

main91621-40616

9356855016

main93568-55016

7 parts on this diagram · 4 diagrams in section

ABS & VSC for Toyota DYNA

This section contains 28 genuine Toyota parts for the ABS & VSC system of the Toyota DYNA. Key components include: ATTACHMENT, SKID CONTROL WIRE, NO.1, WIRE, SPEED SENSOR, REAR, RELAY, SKID CONTROL, RELAY, SKID CONTROL NO.2, SENSOR, VACUUM (FOR SKID CONTROL).
