Toyota DYNA — WORK LAMP

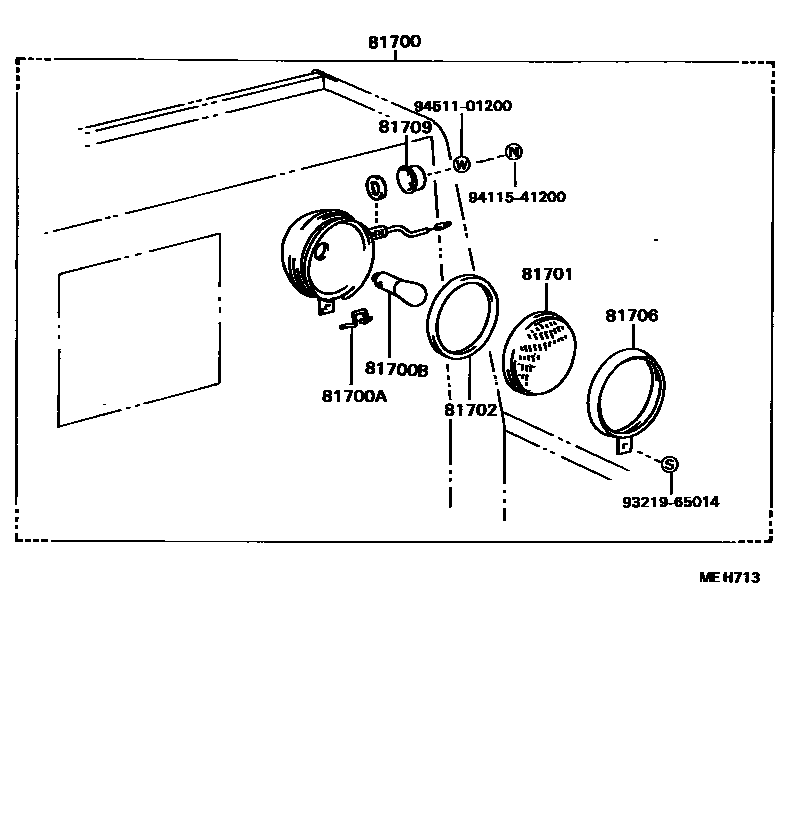

Parts diagram

81700LAMP ASSY, WORK

81700ASPRING, WORK LAMP

81700BBULB, WORK LAMP

81701LENS, WORK LAMP

81702GASKET, WORK LAMP

81706RIM, WORK LAMP

81709BRACKET, WORK LAMP

9321965014

main93219-65014

9411541200

main94115-41200

9451101200

main94511-01200

10 parts on this diagram · 1 diagram in section
