Toyota DYNA — WINDSHIELD WIPER
85070MOTOR & BRACKET ASSY, FRONT WIPER
85150BLINK ASSY, WIPER
85154PACKING, FRONT WIPER SHAFT
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85222ABLADE, FR WIPER, LH
85292BCAP, FRONT WIPER ARM HEAD
91621J0614
main91621-J0614

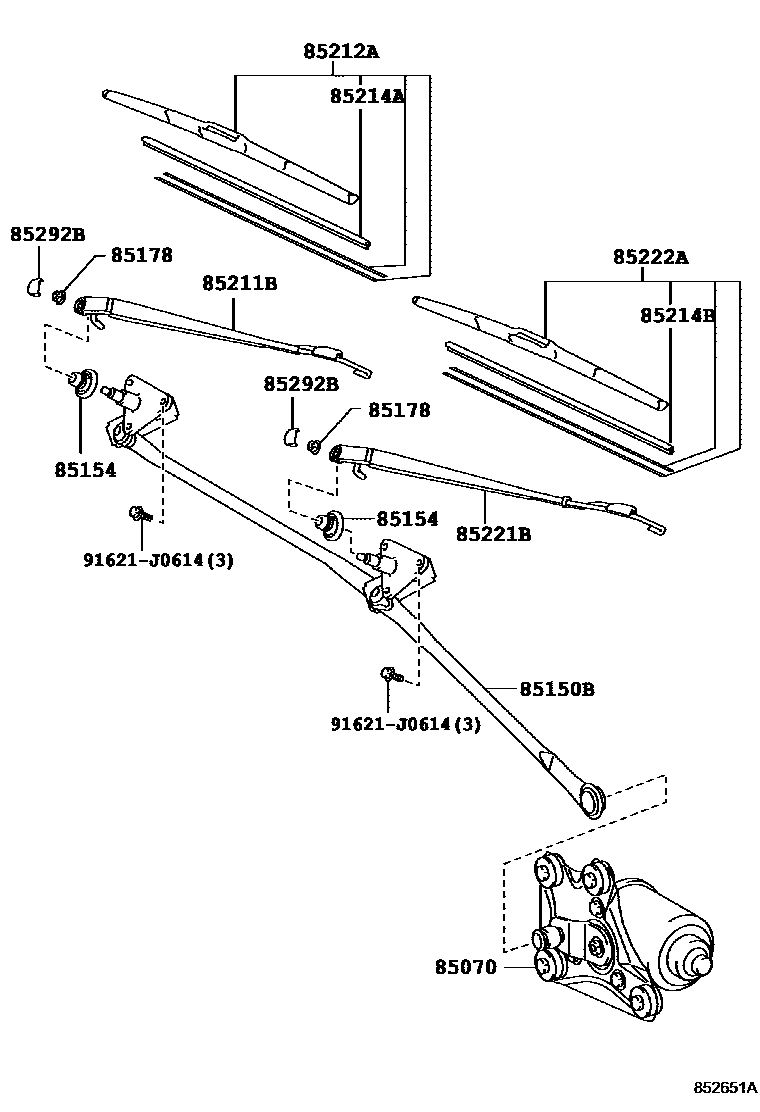

12 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota DYNA
This section contains 12 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota DYNA. Key components include: MOTOR & BRACKET ASSY, FRONT WIPER, LINK ASSY, WIPER, PACKING, FRONT WIPER SHAFT, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH.
