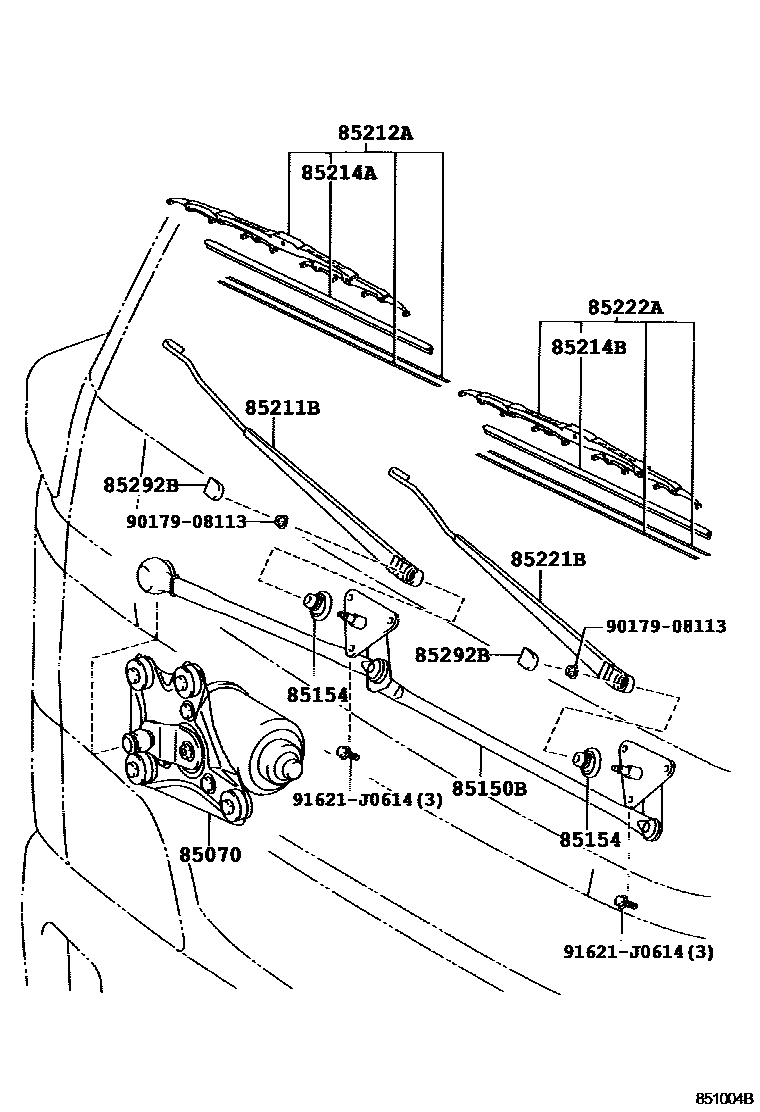

Toyota DYNA — WINDSHIELD WIPER

0001 1 0002 1

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-37150iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

main85070-37210iXZU412,422..6F200110-200802

85150BLINK ASSY, WIPER

main85150-37110iWU410,420,XZU404,412,414,420,422,424,430,434..RHD200110-200609

main85150-37130iWU410,XZU412,414,422,424..LHD..5F200110-200610

main85150-37140iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

85154PACKING, FRONT WIPER SHAFT

main85154-37030×2iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208

85211BARM, FRONT WIPER, RH

main85211-37110iWU410,420,XZU404,412,414,420,422,424,430,434..RHD200110-200609

main85211-37130iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-201208

main85211-37140iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

85212ABLADE, FR WIPER, RH

main85212-37080iWU410,420,XZU404,41#,42#,43#..RHD200110-200605

main85212-37081iWU410,420,XZU420,430..SA200606-200802

main85212-37090iBU410,420,WU410,XZU41#,422,424,434..LHD200110-200605

main85212-37091iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-201208

85214ARUBBER, WIPER, RH

main85214-24051iBU410,420200606-200701

main85214-42020iBU410,420,WU410,XZU41#,422,424,434..LHD200110-200605

main85214-53050iWU410,420,XZU404,41#,42#,43#..RHD200110-200605

sub85214-24050

85214BRUBBER, WIPER, LH

main85214-24051iXZU412,422..6F;WU410,420,XZU420,430..SA200606-200802

main85214-42020iBU410,420,WU410,XZU41#,422,424,434..LHD200110-200605

main85214-53050iWU410,420,XZU404,41#,42#,43#..RHD200110-200605

sub85214-24050

85221BARM, FRONT WIPER, LH

main85221-37170iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

main85221-37190iXZU414,424,434..EUR200110-200608

85222ABLADE, FR WIPER, LH

main85222-37140iWU410,420,XZU404,41#,42#,43#..RHD200110-200605

main85222-37141iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

main85222-37150iBU410,420,WU410,XZU41#,422,424,434..LHD200110-200605

main85222-37151iXZU415,425,435200606-200708

85292BCAP, FRONT WIPER ARM HEAD

main85192-12800×2iXZU412,422..6F;WU410,420,XZU420,430..SA200204-200802

main85292-16010×2iXZU404,414,424,434200110-200204

9017908113

main90179-08113

91621J0614

main91621-J0614

12 parts on this diagram · 2 diagrams in section
