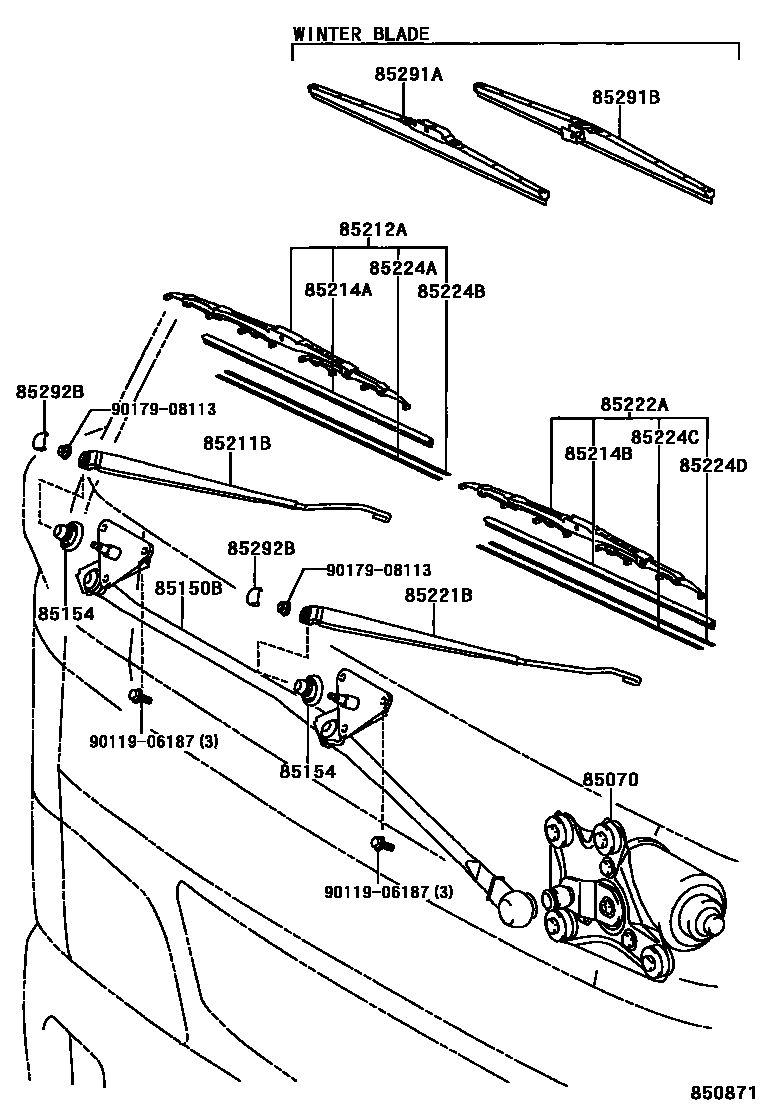

Toyota DYNA — WINDSHIELD WIPER

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-37150iXZU402,41#,420,430200010-200206

85150BLINK ASSY, WIPER

main85150-37110iXZU402,41#,420,430200010-200206

sub85150-37140

85154PACKING, FRONT WIPER SHAFT

main85154-37030×2iXZU402,41#,420,430200010-200206

85211BARM, FRONT WIPER, RH

main85211-37110iXZU402,41#,420,430200010-200206

sub85211-37140

85212ABLADE, FR WIPER, RH

main85212-37080iXZU402,41#,420,430200010-200206

sub85212-37081

85214ARUBBER, WIPER, RH

main85214-10110iXZU402,41#,420,430200010-200206

sub85214-53050

85214BRUBBER, WIPER, LH

main85214-10110iXZU402,41#,420,430200010-200206

sub85214-53050

85221BARM, FRONT WIPER, LH

main85221-37170iXZU402,41#,420,430200010-200206

85222ABLADE, FR WIPER, LH

main85222-37140iXZU402,41#,420,430200010-200206

sub85222-37141

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-10210iXZU402,41#,420,430200010-200206

sub85224-10180

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-10210iXZU402,41#,420,430200010-200206

sub85224-10180

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-33070iXZU402,41#,420,430200010-200206

sub85224-30470

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-33070iXZU402,41#,420,430200010-200206

sub85224-30470

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22050iXZU402,41#,420,430200010-200206

sub85291-33060

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-24060iXZU402,41#,420,430200010-200206

sub85291-24110

85292BCAP, FRONT WIPER ARM HEAD

main85192-12800×2iXZU402,41#,420,430200204-200206

main85292-16010×2iXZU402,41#,420,430200010-200204

9011906187

main90119-06187

9017908113

main90179-08113

18 parts on this diagram · 1 diagram in section
