Toyota DYNA — WINDSHIELD WIPER

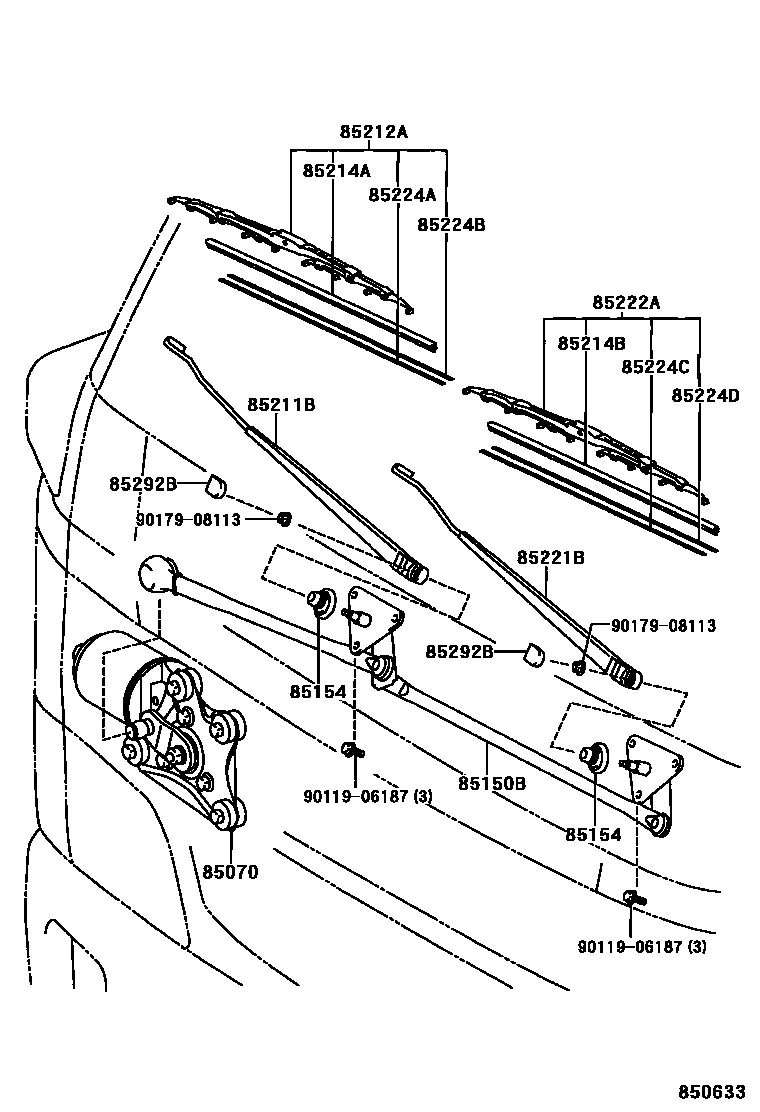

Parts diagram
85070MOTOR & BRACKET ASSY, FRONT WIPER
main85070-37120i200010-200206
COLD SPEC
main85070-37130i199907-200212
main85070-37140i200010-200206
85150BLINK ASSY, WIPER
main85150-37090i200010-200206
main85150-37100i199907-200212
85154PACKING, FRONT WIPER SHAFT
main85154-37020i199907-200212
DRIVER SIDE
main85154-37030i199907-200212
PASSENGER SIDE
85211BARM, FRONT WIPER, RH
main85211-37070i200010-200206
main85211-37100i199907-200212
85212ABLADE, FR WIPER, RH
main85212-37080i200010-200206
sub85212-37081
main85212-37090i199907-200212
sub85212-37091
85214ARUBBER, WIPER, RH
main85214-10110i200010-200206
sub85214-53050
main85214-42020i199907-200212
sub85214-24051
85214BRUBBER, WIPER, LH
main85214-10110i200010-200206
sub85214-53050
main85214-42020i199907-200212
sub85214-24051
85221BARM, FRONT WIPER, LH
main85221-37150i200010-200206
main85221-37160i199907-200212
85222ABLADE, FR WIPER, LH
main85222-37140i200010-200206
sub85222-37141
main85222-37150i199907-200212
sub85222-37151
85224APLATE, WIPER RUBBER BACKING, NO.1
main85224-10210i200010-200206
sub85224-10180
main85224-33070i199907-200212
sub85224-30470
85224BPLATE, WIPER RUBBER BACKING, NO.2
main85224-10210i200010-200206
sub85224-10180
main85224-33070i199907-200212
sub85224-30470
85224CPLATE, WIPER RUBBER BACKING, NO.3
main85224-10210i199907-200212
sub85224-10180
main85224-33070i200010-200206
sub85224-30470
85224DPLATE, WIPER RUBBER BACKING, NO.4
main85224-10210i199907-200212
sub85224-10180
main85224-33070i200010-200206
sub85224-30470
85292BCAP, FRONT WIPER ARM HEAD
main85192-12800×2i200204-200212
main85292-16010×2i199907-200203
9011906187
main90119-06187
9017908113
main90179-08113

16 parts on this diagram · 2 diagrams in section
