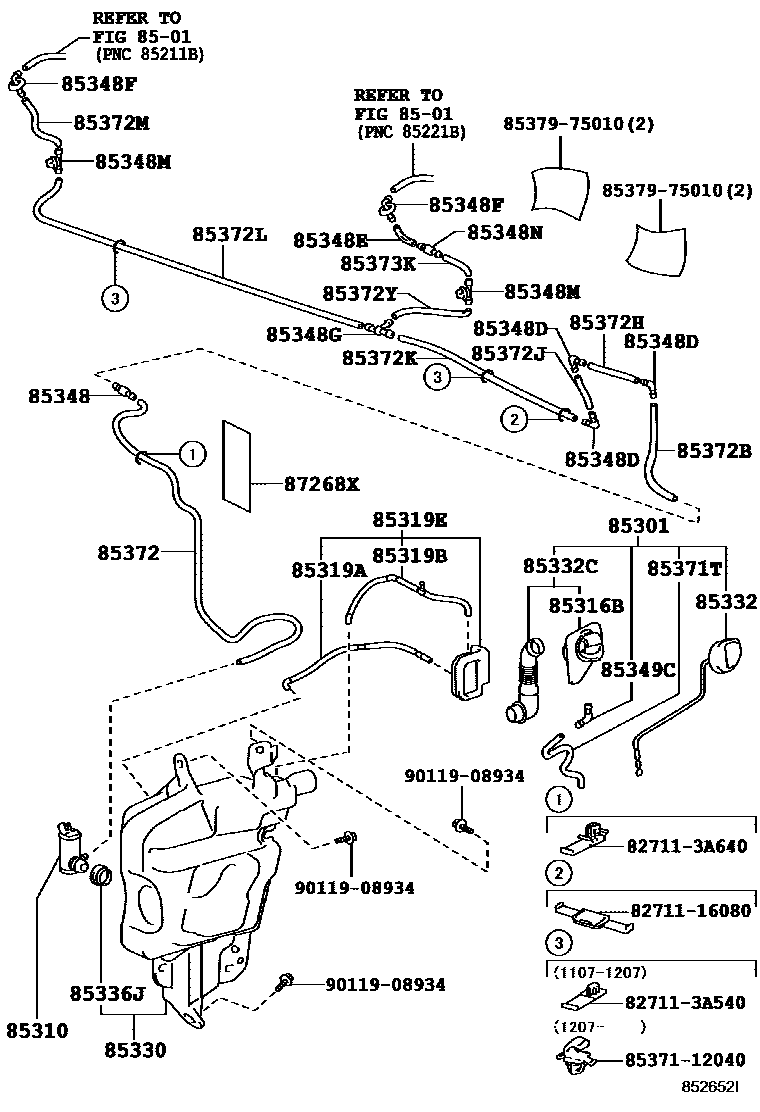

Toyota DYNA — WINDSHIELD WASHER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

8501

85301INLET SUB-ASSY, WASHER

main85301-37042iWU700,710,720..LHD;XZU710,720..MTM..GCC201107-202005

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-90B00iXZU710,720..GEN201911

85316BCAP, WASHER, INLET

main85386-37030iWU700,720..65T;WU710..85T..CBU201107-202005

85319AHOSE, INLET

main85319-37200iWU700,710,720;XZU710,720..MTM..GCC201107-202005

85319BHOSE, WINDOW WASHER

main85319-37190iXZU710..CBU201107-201505

85319EINLET WASHER

main85318-37150iWU710..RHD201107-202005

main85318-37190iXZU710,720..GEN201911

85330JAR ASSY, WINDSHIELD WASHER

main85315-37150iWU710..RHD201107-202005

main85315-37190iXZU710,720,730..EUR201107-201512

85332CAP, WINDSHIELD WASHER JAR

main85332-37061iXZU710..CBU201107-201505

main85332-37071iWU710..RHD201107-202005

85332CCAP, FRONT WASHER TANK

main85386-37040iXZU710,720,730..EUR201107-201512

85336JPROTECTOR, WASHER JAR

main90099-32089iXZU710,720..GEN201911

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-12520iXZU710..CBU201107-201505

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200×3iWU700,710,720,XZU710,720201107-201304

main85375-33070iXZU710..CBU201304-201505

sub85376-10250

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481iXZU710..CBU201107-201505

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

mainS853531020×2iXZU710..CBU201107-201505

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250iXZU710,720..GEN201911

main85375-28110iWU700,710,720,XZU710,720201107-201304

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-17050×2iXZU710..CBU201107-201505

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-12520iXZU710..CBU201107-201505

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iWU700,710,720;XZU710,720..MTM..GCC201412-202005

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

main85377-50110supersedes 85377-50110iWU710..LHD..5F;WU710..85T..IV3;XZU710..MTM..GCC;WU720,XZU720..(75T,85T)..(GCC,GEN)201107-201807

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90446-06013supersedes 90446-06013iXZU710..CBU201107-201505

L=130

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iXZU710..CBU201107-201505

L=1450(*H,L=630)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iWU700,710,720,XZU710,720..GCC,GEN201107-201412

L=1450(*H,L=160)

main90446-07001iXZU710,720..GEN201911

L=1800(*H,L=35)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iXZU710..CBU201107-201505

L=1800(*H,L=80)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001iXZU710..CBU201107-201505

L=1800(*H,L=40)

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080iXZU710,720,730..EUR201304-201512

L=1450(*H,L=75)

main90099-33299iWU710..RHD201107-201304

L=1000(*H,L=35)

main90446-07001iWU700,710,720,XZU710,720201107-201304

L=1800(*H,L=620)

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90446-07001iXZU710..CBU201107-201505

L=1800(*H,L=930)

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

main90099-33080iWU700,710,720,XZU710,720201107-201304

L=1450(*H,L=75)

main90099-33299iXZU710,720..GEN201911

L=1000(*H,L=35)

85372YHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8

main90099-33080iWU710,720;XZU710,720..MTM..GCC201507-202005

main90446-07001iWU700,710,720,XZU710,720201107-201304

85373KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9

main90099-33299iWU700,710,720,XZU710,720..LHD201107-201304

L=1000(*H,L=35)

87268XPROTECTOR

main87268-37110iXZU710..CBU201107-201505

8271116080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16080

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

8537975010JOINT

main85379-75010

9011908934

main90119-08934

37 parts on this diagram · 10 diagrams in section
