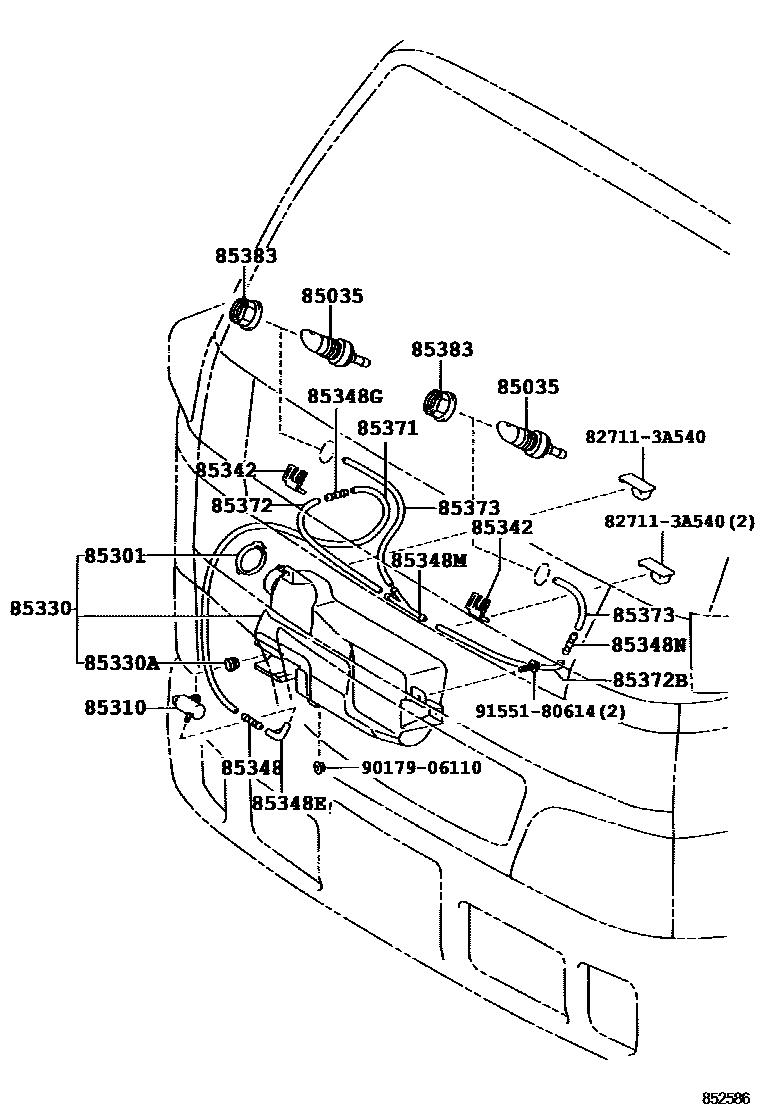

Toyota DYNA — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-37020×2iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

85301INLET SUB-ASSY, WASHER

main85301-17010iXZU414,424,434..EUR200110-200608

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-90B00iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

85330JAR ASSY, WINDSHIELD WASHER

main85315-37090iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

main85315-37100iXZU415,425,435200110-200708

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

85342HOLDER, WASHER NOZZLE

main85342-95J01×2iXZU414,424,434..EUR200110-200608

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iXZU414,424,434..EUR200110-200608

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481iXZU414,424,434..EUR200110-200608

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iXZU414,424,434..EUR200110-200608

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-28110iXZU412,422..6F;WU410,420,XZU420,430..SA200110-200802

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122iXZU414,424,434..EUR200110-200608

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iXZU414,424,434..EUR200110-200608

L=1800(*H,L=1000)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iXZU414,424,434..EUR200110-200608

L=1450(*H,L=100)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-06013iXZU414,424,434..EUR200110-200608

L=1000(*H,L=780)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iXZU404,414,424,434200110-200212

L=1450(*H,L=180)

85383HOLDER, FRONT WASHER NOZZLE

main85383-37010×2iXZU414,424,434..EUR200110-200608

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

9017906110

main90179-06110

9155180614

main91551-80614

19 parts on this diagram · 2 diagrams in section
