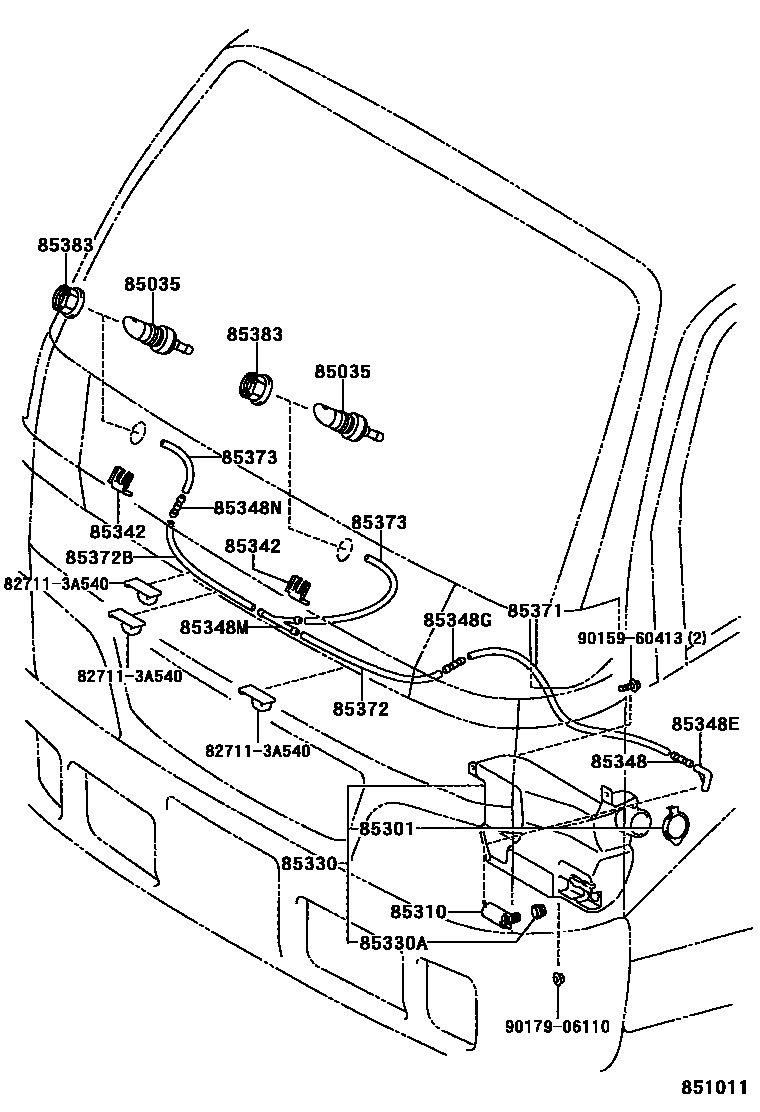

Toyota DYNA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-37020×2iXZU402,41#,420,430200010-200206

85301INLET SUB-ASSY, WASHER

main85301-17010iXZU402,41#,420,430200010-200206

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-90B00iXZU402,41#,420,430200010-200206

85330JAR ASSY, WINDSHIELD WASHER

main85315-37090iXZU402,41#,420,430200010-200206

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iXZU402,41#,420,430200010-200206

85342HOLDER, WASHER NOZZLE

main85342-95J01×2iXZU402,41#,420,430200010-200206

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iXZU402,41#,420,430200010-200206

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481iXZU402,41#,420,430200010-200206

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iXZU402,41#,420,430200010-200206

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-28110iXZU402,41#,420,430200010-200206

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122iXZU402,41#,420,430200010-200206

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iXZU402,41#,420,430200010-200206

L=1800(*H,L=800)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iXZU402,41#,420,430200010-200206

L=1450(*H,L=100)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-06013iXZU402,41#,420,430200010-200206

L=1000(*H,L=780)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iXZU402,41#,420,430200010-200206

L=1450(*H,L=180)

85383HOLDER, FRONT WASHER NOZZLE

main85383-37010×2iXZU402,41#,420,430200010-200206

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

9015960413

main90159-60413

9017906110

main90179-06110

19 parts on this diagram · 1 diagram in section
