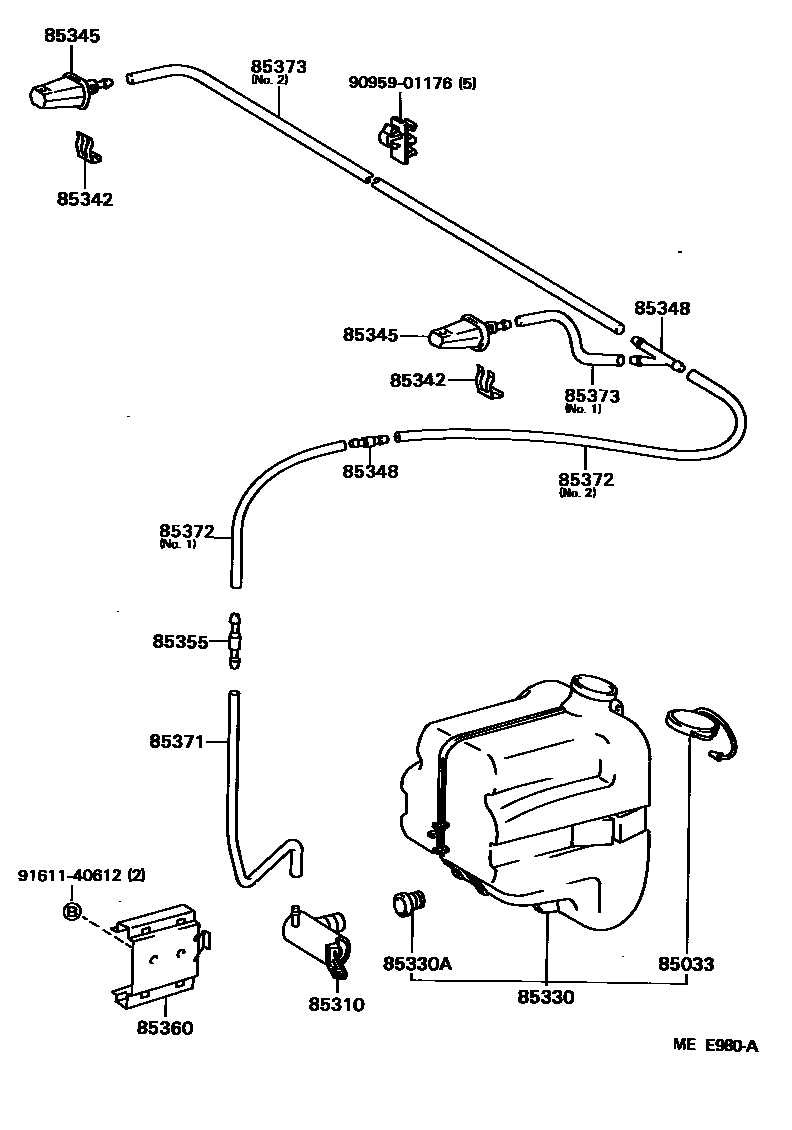

Toyota DYNA — WINDSHIELD WASHER

0001 1 0002 1

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120iRU75,85,WU9#,YU6#,7#,8#198409-198708

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iRU75,85,WU9#,YU6#,7#,8#198409-198708

main85310-90B00iWU9#..LHD198409-198708

CHINA OR ALGERIA SPEC

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040iRU75,85,WU9#,YU6#,7#,8#198409-198708

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iRU75,85,WU9#,YU6#,7#,8#198409-198708

85342HOLDER, WASHER NOZZLE

main85342-95J01×3iRU75,85,WU9#,YU6#,7#,8#198409-198708

85345NOZZLE, WINDSHIELD WASHER

main85035-95708×3iRU75,85,WU9#,YU6#,70,80198409-198508

sub85035-95J03

main85035-95A08×2iYU60..EUR198508-198608

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250×2iRU75,85,WU9#,YU6#,7#,8#198409-198708

3-WAY

main85349-89122iRU75,85,WU9#,YU60,61,70,80198409-198708

2-WAY

85355VALVE, WINDSHIELD WASHER HOSE

main85349-89122iRU75,85,WU9#,YU6#,71,81198703-198708

main85355-87201iRU75,85,WU9#,YU6#,7#,8#198409-198703

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-95400iRU75,85,WU9#,YU6#,7#,8#198409-198708

sub85361-95A02

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iRU75,85,WU9#,YU6#,7#,8#198409-198708

L=1800(*H,L=200)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33142iRU75,85,WU9#,YU6#,7#,8#198409-198708

L=130,NO.1

sub90099-33418

main90446-06013iRU75,85,WU9#198409-198708

L=1000(*H,L=400),NO.3,NO.2

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013×2iRU75,85,WU9#198409-198708

L=1000(*H,L=100),NO.1

9095901176

main90959-01176

9161140612

main91611-40612

14 parts on this diagram · 2 diagrams in section
