Toyota DYNA — VENTURI

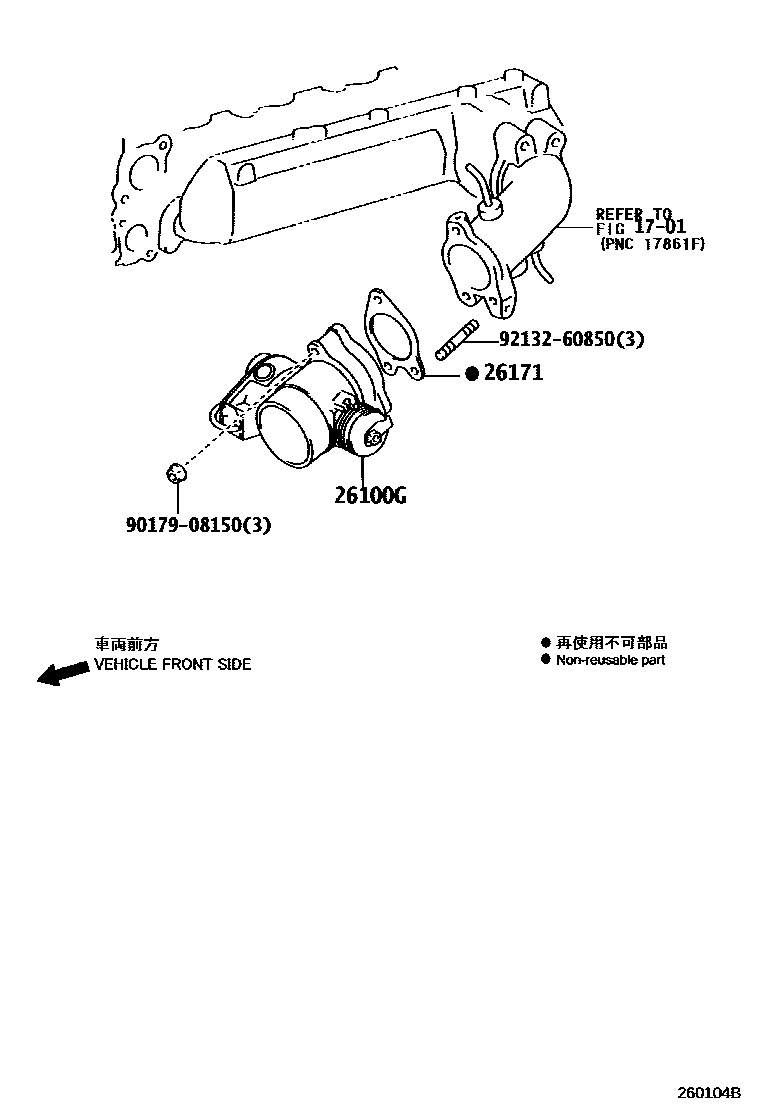

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

26100GBODY ASSY, DIESEL THROTTLE

main26100-30020i200108-200610

main26100-30060i200609-201109

main26100-30080i201109

26171GASKET, VENTURI

main26171-30011×2i200108-200210

main26171-30012i200210-200403

main26171-30013i200403-200610

main26171-30020i200609

9017908150

main90179-08150

9213260850

main92132-60850

5 parts on this diagram · 3 diagrams in section

VENTURI for Toyota DYNA

This section contains 7 genuine Toyota parts for the VENTURI system of the Toyota DYNA. Key components include: MANIFOLD, BODY ASSY, DIESEL THROTTLE, GASKET, VENTURI.
