Toyota DYNA — SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE 0004 1TRANSMISSION 0005 1TRANSMISSION 0006 1TRANSMISSION 0007 1TRANSMISSION 0008 1TRANSMISSION 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1COWL 0012 1COWL 0013 1COWL 1/2 0014 1COWL 2/2 0015 1INSTRUMENT PANEL 0016 1INSTRUMENT PANEL 0017 1INSTRUMENT PANEL 0018 1STEERING 0019 1STEERING 0020 1DOOR,ROOF & FLOOR 0021 1DOOR,ROOF & FLOOR 0022 1REAR BODY 0023 1REAR BODY

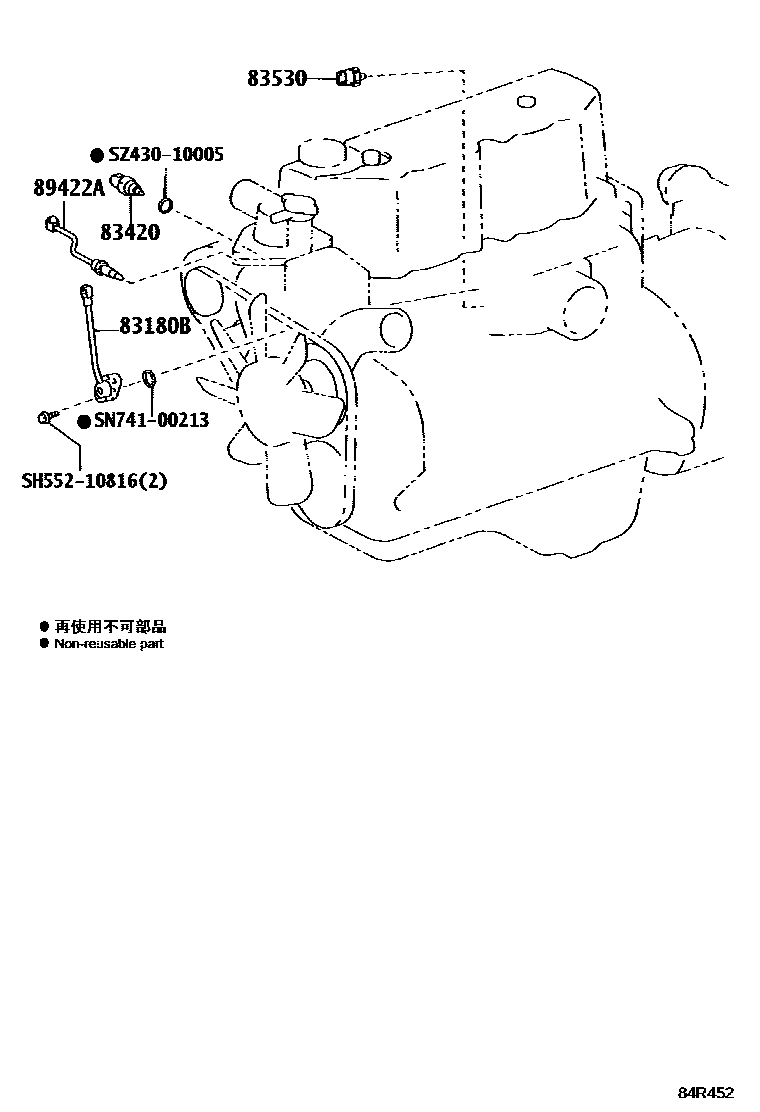

83180BDETECTOR ASSY, REVOLUTION

mainS831901482iWU700,710,720201107-202005

83420GAGE ASSY, WATER TEMPERATURE SENDER

mainS834201250iXZU710,720,730..EUR201107-201512

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-E0210iWU700,710,720201107-201908

main83530-E0220iXZU710..CBU201107-201505

main83530-E0250iXZU710,720..MTM..GCC201909-202005

main83530-E0260iWU710,720201909-202005

89422ASENSOR, WATER TEMPERATURE

mainS834301840iWU700,710,720201107-202005

SH55210816

mainSH552-10816

SN74100213

mainSN741-00213

SZ43010005WASHER, SOFT, NO.1

mainSZ430-10005

7 parts on this diagram · 23 diagrams in section
