Toyota DYNA — SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE 0005 1TRANSMISSION & TRANSFER 0006 1TRANSMISSION & TRANSFER 0007 1TRANSMISSION & TRANSFER 0008 1TRANSMISSION & TRANSFER 0009 1ENGINE ROOM 0010 1R/B NO.2 0015 1R/B NO.2 0016 1R/B NO.2 0018 1INSTRUMENT PANEL & COWL 0020 1INSTRUMENT PANEL & COWL 0022 1INSTRUMENT PANEL & COWL 0024 1INSTRUMENT PANEL & COWL 0025 1INSTRUMENT PANEL SWITCH 0026 1INSTRUMENT PANEL SWITCH 0028 1INSTRUMENT PANEL SWITCH 0029 1STEERING 0030 1STEERING 0031 1DOOR,ROOF & FLOOR 0032 1DOOR,ROOF & FLOOR 0033 1TILT SWITCH 0036 1REAR BODY

1503

1603

2202

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iBU410,420200411-200701

main83420-37020iXZU414,424,434..EUR200110-200608

W(TACHOMETER)

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iBU410,420200411-200701

DENSO

main83530-37030iWU410,XZU420,430..(75T,85T)..SA200212-200802

main83530-37040iXZU412,422..6F200110-200802

main83530-60010iBU410,420200411-200701

YAZAKI

89421DSENSOR, TURBO PRESSURE

main89421-37020iXZU414,424,434..EUR200110-200608

89422ASENSOR, WATER TEMPERATURE

main89422-37022iXZU404,41#,42#,434200110-200302

main89422-37023iXZU404,412,422..5F;XZU414,424,434..ARL,GEN200302-200610

main89422-37030iBU410,420200411-200701

main89422-37040iWU420;WU410..65T..SA200212-200801

subS8343-01840

89454CSENSOR, FUEL GAS TEMPERATURE

main89454-37020iXZU414,424,434..EUR200110-200608

89491SENSOR, ENGINE OIL LEVEL

main89491-37030iBU410,420200411-200701

main89491-37040iXZU404,414,424,434200110-200206

main89491-37050iXZU404,414,424..RHD..GEN200206-200401

2634389101

main26343-89101

9003105001

main90031-05001

9003105123

main90031-05123

9003119110

main90031-19110

9003401011

main90034-01011

9003430040

main90034-30040

9003430041

main90034-30041

9003430042

main90034-30042

9020210012

main90202-10012

9040410024

main90404-10024

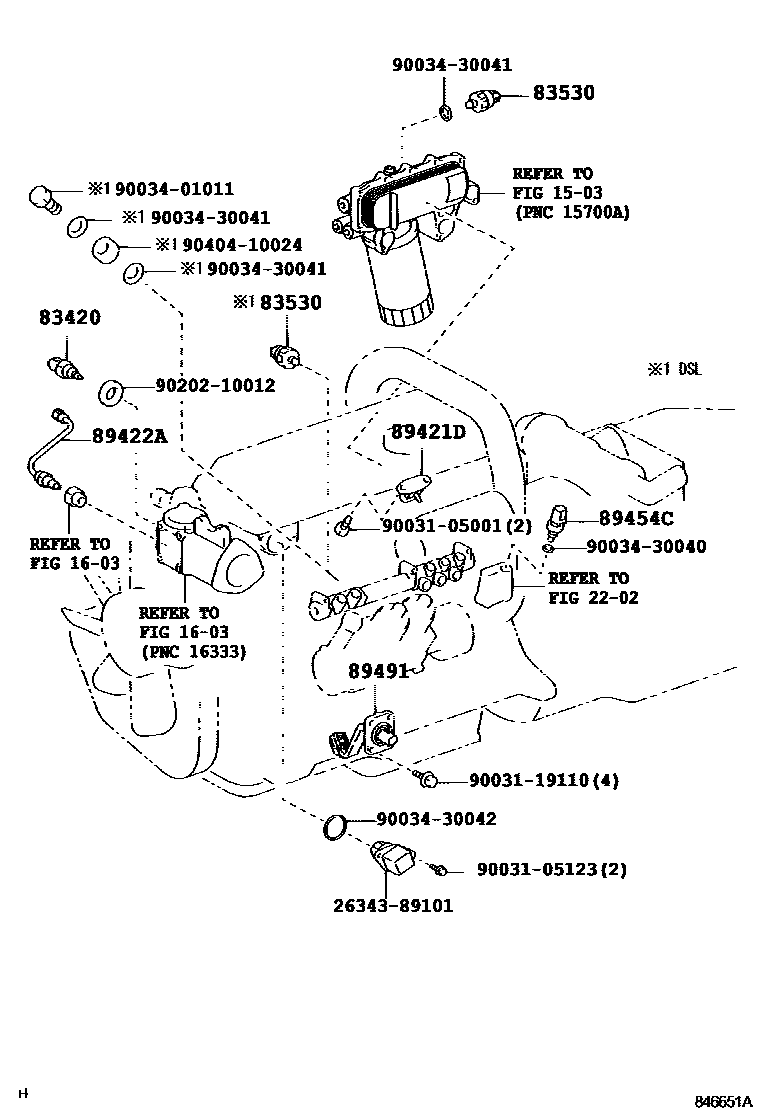

19 parts on this diagram · 25 diagrams in section
