Toyota DYNA — SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1TRANSMISSION 0003 1TRANSMISSION & TRANSFER 0004 1R/B NO.2 0005 1INSTRUMENT PANEL & COWL 0006 1INSTRUMENT PANEL SWITCH 0007 1IGNITION SW. & COMBINATION SW0008 1DOOR,ROOF & FLOOR 0009 1TILT SWITCH 0010 1REAR BODY

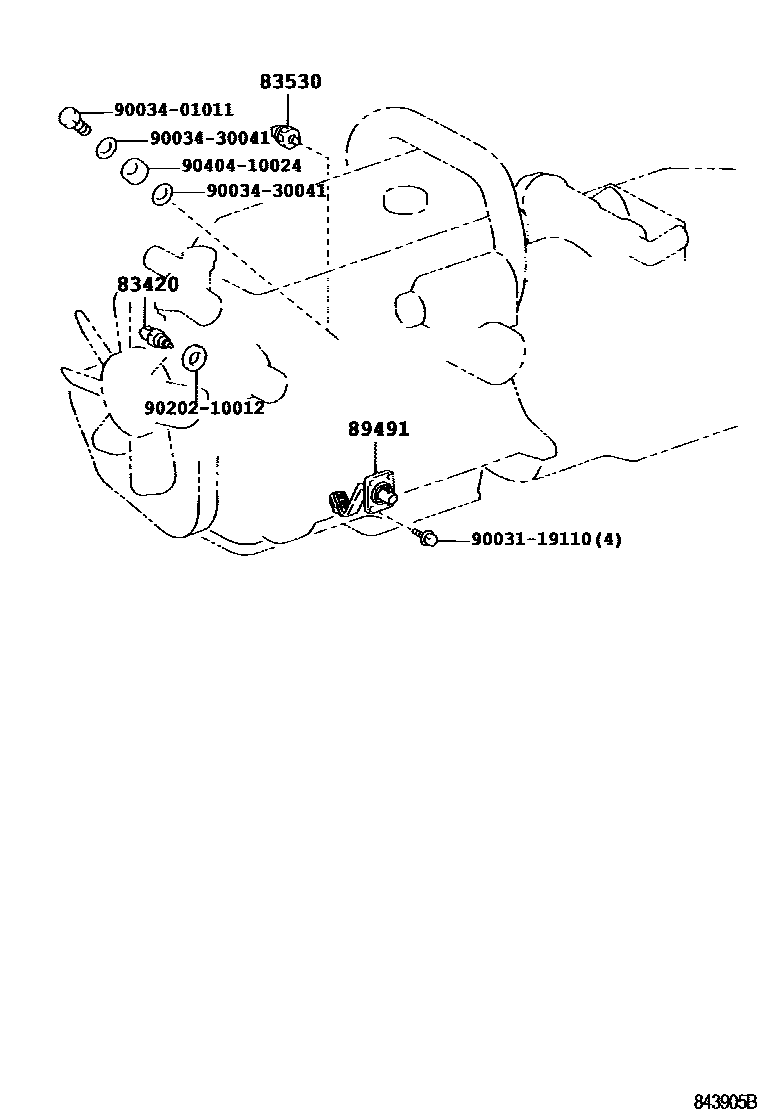

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-37020iXZU402,41#,420,430200010-200206

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-37030iXZU402,41#,420,430200010-200206

89491SENSOR, ENGINE OIL LEVEL

main89491-37040iXZU402,41#,420,430200010-200206

9003119110

main90031-19110

9003401011

main90034-01011

9003430041

main90034-30041

9020210012

main90202-10012

9040410024

main90404-10024

8 parts on this diagram · 10 diagrams in section
