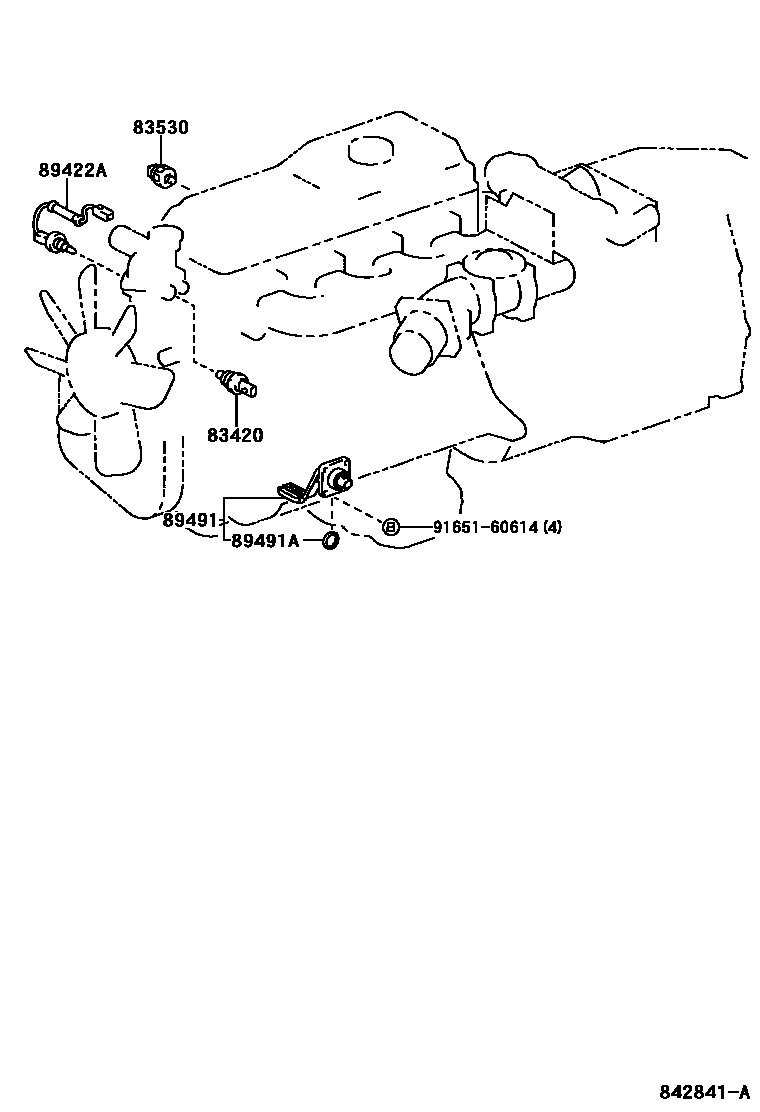

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iXZU300,320,330,340199907-200212

main83420-37020iXZU302,307,342200010-200206

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iXZU300,320,330,340199907-200212

DENSO

main83530-37030iXZU302,307,342200010-200206

main83530-60010iXZU300,320,330,340199907-200212

YAZAKI

89422ASENSOR, WATER TEMPERATURE

main89422-36010iXZU300,320,330,340199907-200212

sub89422-37030

89491SENSOR, ENGINE OIL LEVEL

main89491-37030iXZU300,320,330,340199907-200212

main89491-37040iXZU302,307,342200010-200206

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iXZU300,320,330,340199907-200212

9165160614

main91651-60614

6 parts on this diagram · 17 diagrams in section
