Toyota DYNA — STARTER

0001 1 0002 1 0003 1

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 1.0KW

main28011-54010i1W..WU9#198409-198708

12V 2.5KW

main28011-78011i1W..WU9#..LHD198409-198604

24V 4.5KW

main28011-78012i1W..WU9#..LHD198604-198708

24V 4.5KW

28100STARTER ASSY

main28100-34080i22R..RU75,85198409-198708

12V 1.0KW,12V 1.0KW

main28100-72010i3Y,4Y..YU6#,70,80198409-198608

12V 1.0KW,12V 1.0KW

main28100-72080i4Y..YU6#,71,81198608-198708

12V 1.0KW,12V 1.0KW

main28100-78011i1W..WU9#..LHD198409-198708

24V 4.5KW,24V 4.5KW

main28100-78020i1W..WU9#198409-198708

12V 2.5KW,12V 2.5KW

28110HOUSING ASSY, STARTER DRIVE

main28110-34080i22R..RU75,85198409-198708

12V 1.0KW

main28110-72010i3Y,4Y..YU6#,7#,8#198409-198708

12V 1.0KW

main28115-78010i1W..WU9#198409-198708

12V 2.5KW

main28115-78021i1W..WU9#..LHD198409-198708

24V 4.5KW,RR

main28115-78030i1W..WU9#..LHD198409-198708

24V 4.5KW,FR

28120YOKE ASSY, STARTER

main28120-26070i22R,3Y,4Y..RU75,85,YU60,61,70,80198409-198702

12V 1.0KW

main28120-26071i22R..RU75,85198702-198708

12V 1.0KW

main28120-47040i1W..WU9#198409-198702

12V 2.5KW

main28120-56081i1W..WU9#198702-198708

12V 2.5KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-34060i22R..RU75,85198409-198708

12V 1.0KW

main28130-72010i3Y,4Y..YU6#,7#,8#198409-198708

12V 1.0KW

main28130-78010i1W..WU9#198409-198708

12V 2.5KW

28137WASHER, FELT, STARTER

main90099-02205i1W..WU9#198409-198708

12V 2.5KW

main90099-02323i22R,3Y,4Y..RU75,85,YU6#,70,80198409-198412

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 1.0KW

main28140-77090i1W..WU9#198409-198708

12V 2.5KW

main28140-78010i1W..WU9#..LHD198409-198708

24V 4.5KW

28143SPRING, STARTER BRUSH

main28143-78010×4i1W..WU9#..LHD198409-198708

24V 4.5KW

main90099-17112×4i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 1.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-34080i22R,3Y,4Y..RU75,85,YU60,61,70,80198409-198708

12V 1.0KW

main28150-72080i4Y..YU6#,71,81198608-198708

12V 1.0KW

main28150-78010i1W..WU9#198409-198708

12V 2.5KW

main28150-78020i1W..WU9#..LHD198409-198708

24V 4.5KW

sub28150-78021

28160ARMATURE ASSY, STARTER

main28160-26070i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 1.0KW

sub28160-26071

main28160-47040i1W..WU9#198409-198708

12V 2.5KW

sub28160-54140

main28160-78010i1W..WU9#..LHD198409-198708

24V 4.5KW

28160ABEARING, STARTER ARMATURE

main28253-45020i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 1.0KW,NO.2

main90099-10107i1W..WU9#198409-198708

12V 2.5KW,NO.2

main90099-10113i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 1.0KW,NO.1

main90099-10119i1W..WU9#198409-198708

12V 2.5KW,NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 1.0KW

main28165-77090i1W..WU9#198409-198708

12V 2.5KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 1.0KW

main28228-56080×5i1W..WU9#198409-198708

12V 2.5KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 1.0KW

main28229-56080i1W..WU9#198409-198708

12V 2.5KW

28252GEAR, STARTER IDLE

main28254-45020i22R,3Y,4Y..RU75,85,YU6#,7#,8#198409-198708

12V 1.0KW

main28254-77090i1W..WU9#198409-198708

12V 2.5KW

9009100902

main90091-00902

9009120604

main90091-20604

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9009935024

main90099-35024

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

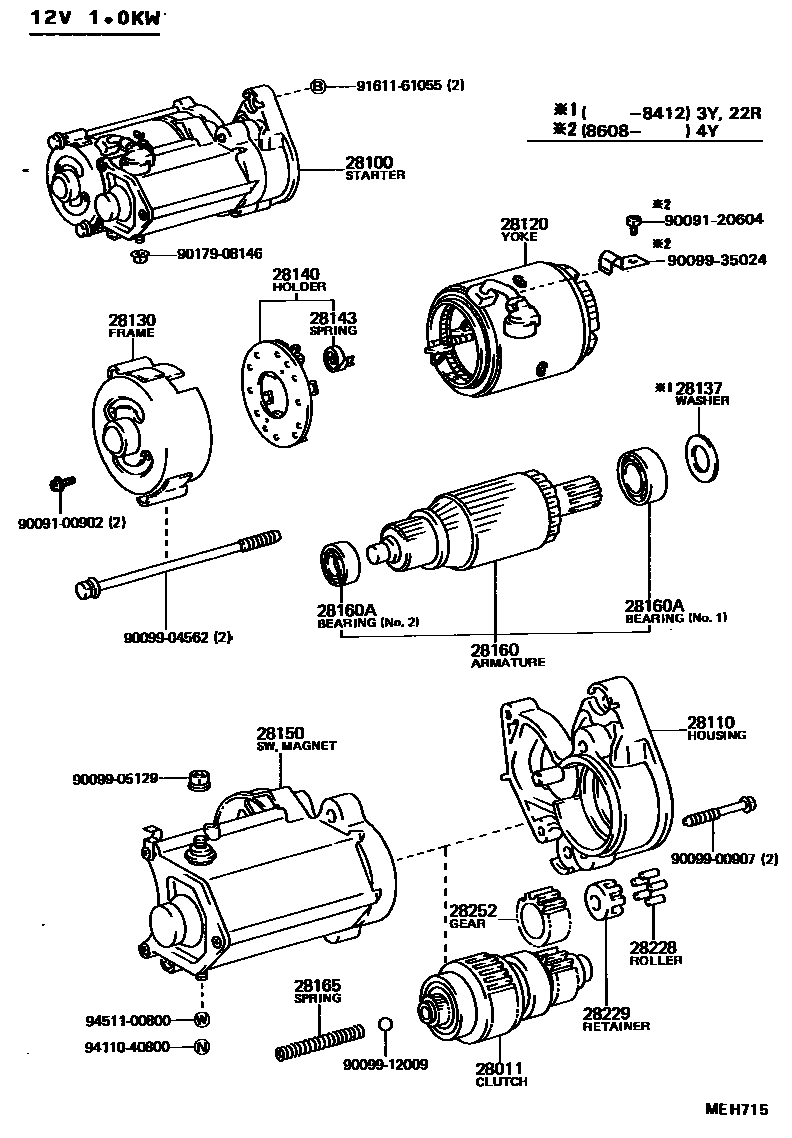

26 parts on this diagram · 3 diagrams in section
