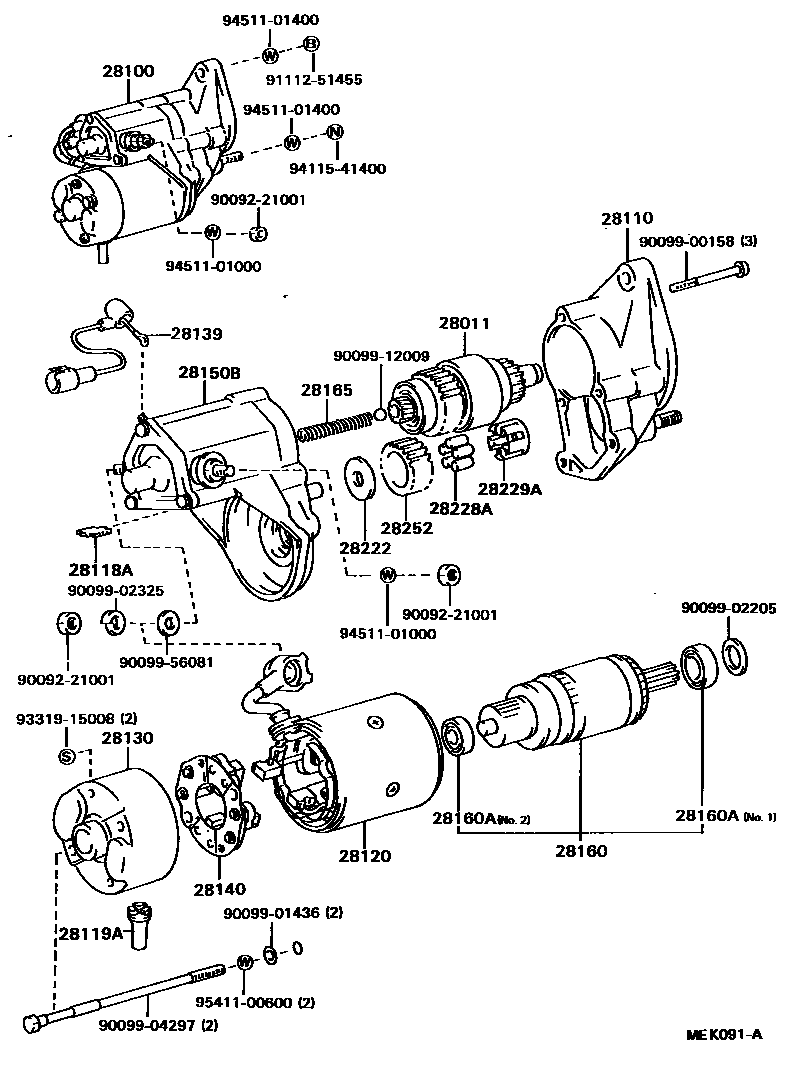

Toyota DYNA — STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
sub28110-56151
28118APLATE(FOR STARTER YOKE)
28119ACOVER, STARTER END FRAME
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28139WIRE, LEAD, NO.1(FOR STARTER)
28140HOLDER ASSY, STARTER BRUSH
28150BSWITCH ASSY, MAGNETIC
sub28150-56170
28160ARMATURE ASSY, STARTER
28160ABEARING, STARTER ARMATURE
NO.2
NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
28222WASHER, STARTER IDLE GEAR CLUTCH
28228AROLLER, STARTER CLUTCH
28229ARETAINER, STARTER IDLE GEAR
28252GEAR, STARTER IDLE
9009221001
main90092-21001
9009900158
main90099-00158
9009901436
main90099-01436
9009902205
main90099-02205
9009902325
main90099-02325
9009904297
main90099-04297
9009912009
main90099-12009
9009956081
main90099-56081
9111251455
main91112-51455
9331915008
main93319-15008
9411541400
main94115-41400
9451101000
main94511-01000
9451101400
main94511-01400
9541100600
main95411-00600
31 parts on this diagram · 1 diagram in section
