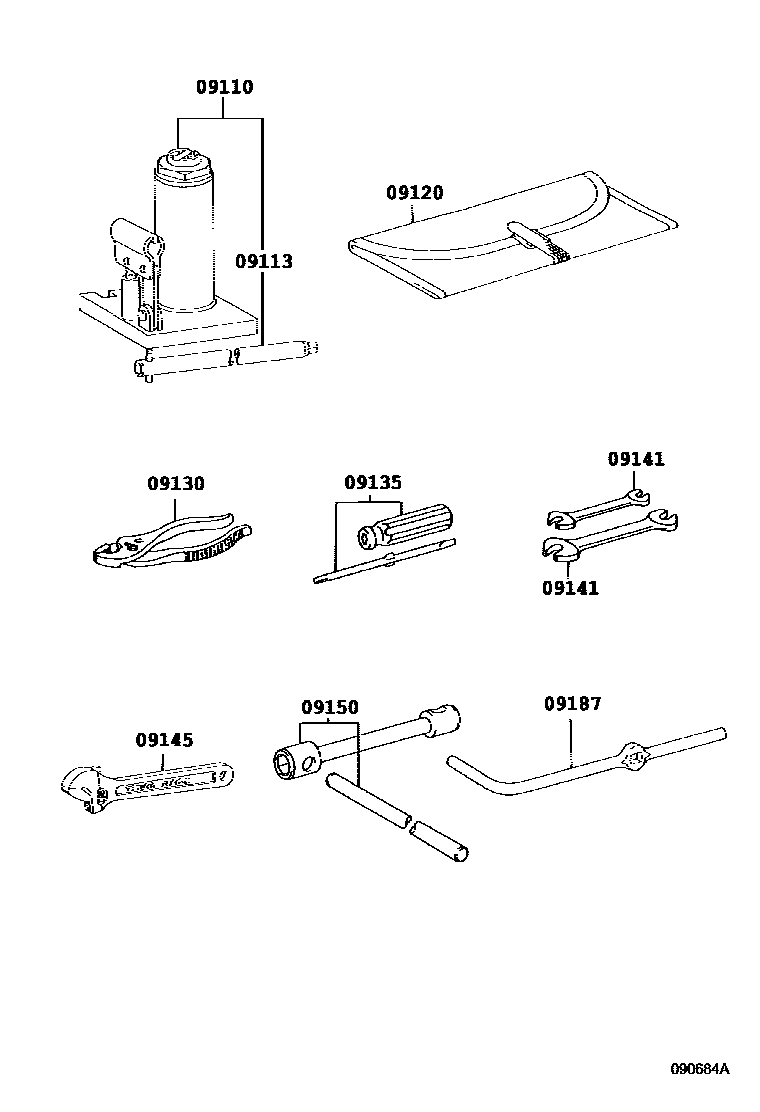

Home › Toyota › DYNA › STANDARD TOOL Toyota DYNA — STANDARD TOOL 09110 JACK ASSY
main 09111-37200 i WU410,420,XZU404,41#,42#,43#..EUR,GCC,GEN,SA 200206-200404 main 09111-37230 i WU410..65T..IV3;WU410..75T..GEN..IV3;WU412,42#,XZU413,415,417,423,425,427,433,435..IV3..(DCRTJ,DCRTK,DSL) 200406-200805 09113 HANDLE, JACK
main 09113-37080 i XZU415,425,435..DCR;BU410,420,XZU414,424,434..ARL,TAIW 200206-201208 09120 BAG, TOOL
main 09120-37030 i XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 200206-201012 09130 PLIERS
main 99913-11500 i XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 200110-201106 09135 DRIVER, SCREW
main 99915-10700 i XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 200110-201106 09141 SPANNER
main 99914-10810 i XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 200110-200802 8 X 10
main 99914-11012 i WU41#,422,XZU413,423..GCC,GEN 200610-201106 10 X 12
main 99914-11214 i XZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN) 200110-200802 12 X 14
main 99914-11417 i WU41#,422,XZU413,423..GCC,GEN 200610-201106 14 X 17
09150 WRENCH, HUB NUT BOX
main 09150-37030 i XZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN) 200205-201208 09187 HANDLE, SPARE WHEEL CARRIER
9 parts on this diagram · 2 diagrams in section
STANDARD TOOL for Toyota DYNA This section contains 9 genuine Toyota parts for the STANDARD TOOL system of the Toyota DYNA. Key components include: JACK ASSY, HANDLE, JACK, BAG, TOOL, PLIERS, DRIVER, SCREW.
