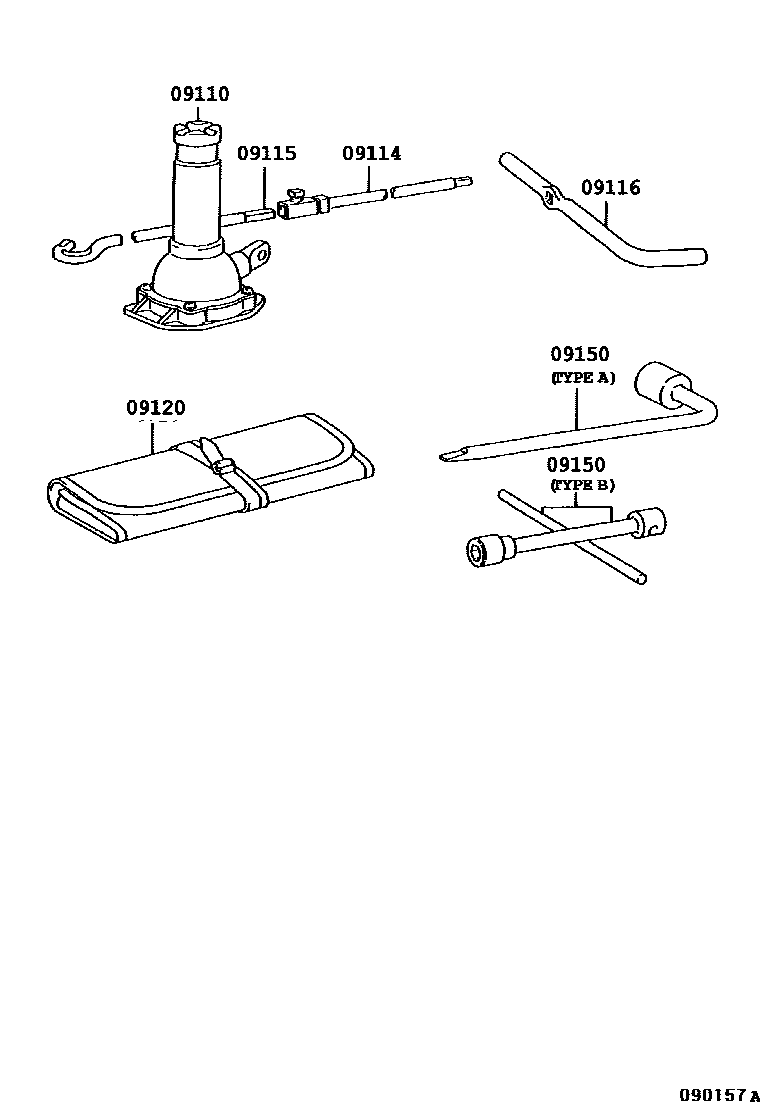

Toyota DYNA — STANDARD TOOL

09110JACK ASSY

main09111-25100iLY225,235200107

main09111-25110iKDY22#,23#,25#,26#,LY220,230200107-202111

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010iLY230..SA200107-202111

09115ROD SUB-ASSY, JACK HANDLE

main09115-35070iKDY221,231,LY230..GEN,SA200107-202111

09116LEVER, JACK HANDLE

main09116-35041iLY230..SA200107-202111

09120BAG, TOOL

main09120-25040iLY230..SA200107-202111

09150WRENCH, HUB NUT BOX

main09150-25020iKDY23#,25#,26#,LY230..WT..IV3200107-202111

TYPE B:REFER ILLUST.

main09150-25030iKDY221,231,LY225,235..GEN200107

TYPE B:REFER ILLUST.

main09150-26030iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY220;KDY231..ST..IV3200107

TYPE A:REFER ILLUST.

6 parts on this diagram · 1 diagram in section
