Toyota DYNA — ROOF PANEL & BACK PANEL

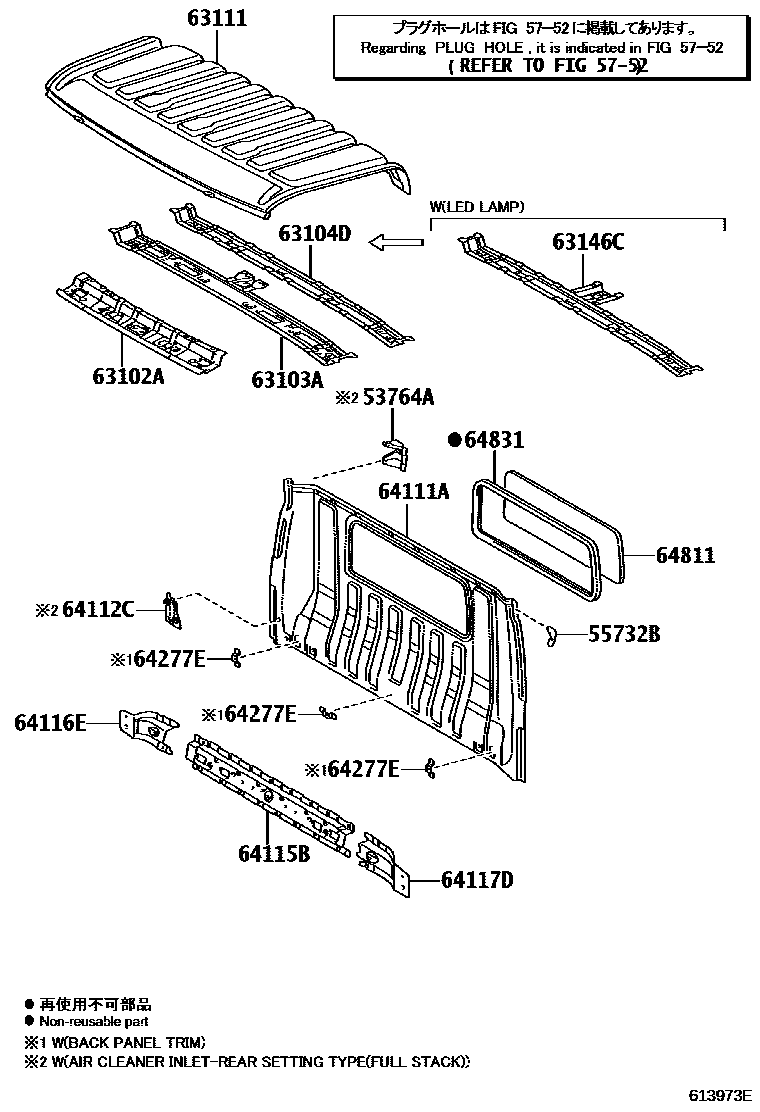

Parts diagram

53764ABRACKET, AIR CLEANER INLET, NO.1

main53764-37120i201605-202005

AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)

main53764-37130i201805-202005

AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)

55732BBRACKET, FRONT PANEL, NO.2

main55732-37060×2i201911

5752

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-37080i201107-202005

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-37070i201107-201505

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-37060i201107-201505

63111PANEL, ROOF

main63111-37260i201107-201505

main63111-37280i201108-202005

63146CREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-37010i201107-201505

ROOM LAMP-WITH(LED LAMP)

64111APANEL, BACK

main64111-37570i201911

main64111-37580i201108-202005

64112CPANEL, UPPER BACK, INNER

main64112-37040i201911

AIR CLEANER INLET-REAR SETTING TYPE(FULL STACK)

64115BREINFORCEMENT, BACK PANEL

main64115-37210i201107-201512

main64115-37220i201108-201407

main64115-37221i201408-202005

64116EREINFORCEMENT, UPPER BACK, RH

main64116-37040i201107-202005

64117DREINFORCEMENT, UPPER BACK, LH

main64117-37070i201107-201505

64277EBRACKET, BACK PANEL TRIM, LOWER

main64277-37010×3i201306-201512

64811GLASS, BACK WINDOW

main64811-37180i201107-201512

*TEM,T=3.5,GREEN

main64811-37190i201108-202005

*TEM,T=3.5,GREEN

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37070i201911

main64831-37080i201108-202005

16 parts on this diagram · 2 diagrams in section
