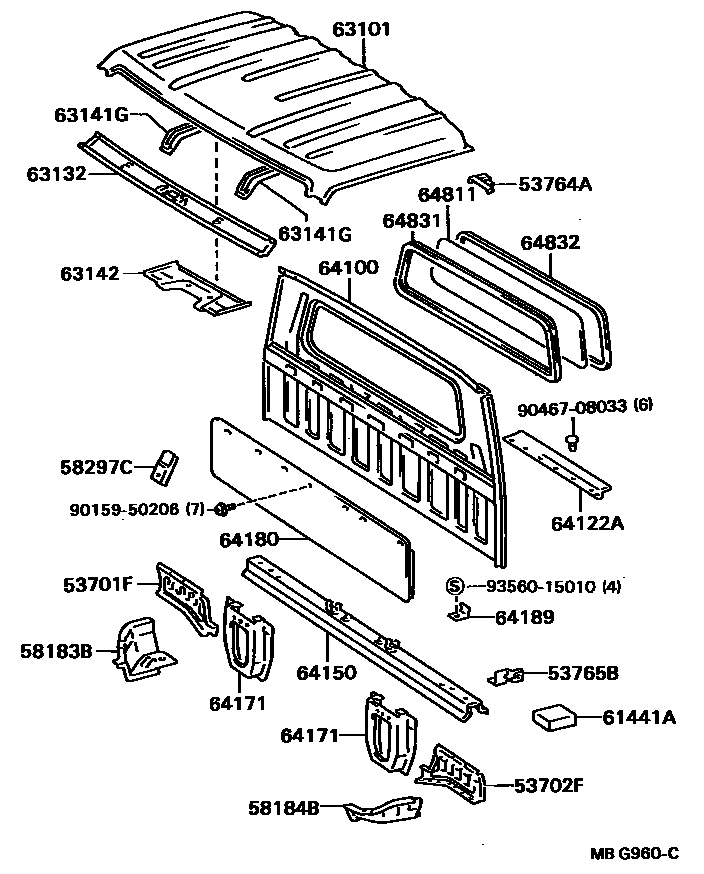

Toyota DYNA — ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

53701FAPRON SUB-ASSY, FRONT FENDER, NO.2 RH

main53701-95407iBU60..T1,T2,T3;BU61,62,63,65,80,81,82198409-198708

main53703-92604iBU70;BU60..TW1198409-198708

main53703-92607iBU85,86..TW1198510-198708

main53717-95410iBU75,76,85..T3198409-198708

53702FAPRON SUB-ASSY, FRONT FENDER, NO.2 LH

main53702-95412iBU60..T1,T2,T3;BU61,62,63,65,80,81,82198409-198708

main53704-92600iBU85,86..TW1198510-198708

main53704-92604iBU70;BU60..TW1198409-198708

main53718-95411iBU75,76,85..T3198409-198708

53764ABRACKET, AIR CLEANER INLET, NO.1

main53764-95400iBU60,61,62,80,81,82..T3198409-198508

main53764-95403iBU75,76,85..CBU,IV3198409-198508

main53764-95404iBU75,76,85..T3..(CBU,IV3)198508-198708

53765BBRACKET, AIR CLEANER INLET, NO.2

main53067-95400iBU60,61,62,80,81,82..T3198409-198508

main53765-95401iBU75,76,85..CBU,IV3198409-198508

main53765-95402iBU75,76,85..T3..(CBU,IV3)198508-198708

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-95402iBU6#,70,8#198409-198708

sub58183-95405

main58183-95403iBU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3198409-198708

W/TILT CAB

sub58183-95404

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-95401iBU6#,70,8#198409-198708

sub58184-95404

main58184-95402iBU60,85..(T1,T2,T3)..(CBU,IV3);BU61,62,63,65,75,76,80,81..CBU,IV3198409-198708

W/TILT CAB

sub58184-95403

58297CREINFORCEMENT, SEAT BELT ANCHOR

main58297-95401iBU60,85..T1,T2,T3;BU61,62,63,65,75,76,80,81,82198409-198708

61441ASILENCER, REAR PILLAR

main61441-95010×2iBU85,86..TW1198510-198708

sub61824-12090

63101PANEL SUB-ASSY, ROOF

main63100-92606iBU85,86..TW1198510-198708

main63111-95409iBU60..T1,T2,T3;BU61,62,63,65,80,81,82..CBU,IV3198409-198708

sub63111-37010

sub63141-37010

main63111-95410iBU65..CBU198508-198708

W/*RV

sub63111-37020

sub63141-37010

main63111-95411iBU75,76,85..T3..(CBU,IV3)198409-198708

main63111-95412iBU75,76,85..T3..(CBU,IV3)198409-198708

W/*RV

main63115-92603iBU60..TW1198409-198708

main63115-92604iBU60..TW1198409-198708

W/*RV

63132PANEL, WINDSHIELD HEADER, INNER

main63102-95401iBU75,76,85,86..CBU,IV3198409-198603

W/SUN VISOR=ASSISTANT

main63102-95402iBU75,76,85,86..RHD..GEN..(CBU,IV3)198409-198603

sub90950-06047

main63132-95417iBU60,61,63,80,81,82..RHD..(GEN,GHD)198409-198603

sub90950-06047

main63132-95418iBU6#,70,80,81,82..(DMP,TR,V)..(CBU,IV3)198409-198603

W/SUN VISOR=ASSISTANT

sub63132-37010

main63132-95419iBU60,61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198409-198603

W/*RV

sub90950-06047

main63132-95420iBU6#,70,80,81,82..(BUS,DMP,TR)..(CBU,IV3)198409-198603

W/SUN VISOR=ASSISTANT & *RV

sub63132-37010

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-95403×2iBU75,76,85..T3..(CBU,IV3)198409-198708

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iBU60..T1,T2,T3;BU61,62,63,80,81,82..CBU,IV3198409-198708

64100PANEL ASSY, BACK, OUTER

main64100-95433iBU60..RHD..(T1,T2,T3);BU61,62,63,65,80,81..RHD..(CBU,IV3)198409-198708

W/HEADREST=ASSISTANT

main64100-95434iBU60,61,62,80,81..LHD198409-198708

W/HEADREST=ASSISTANT

main64100-95435iBU60,61,62,80,81..LHD198409-198708

main64100-95436iBU60..RHD..(T1,T2,T3)..GEN;BU61,63,80,81,82..RHD..(GEN,GHD)..(CBU,IV3)198409-198708

main64100-95437iBU75,76,85..RHD..T3..(CBU,IV3)198409-198708

sub64100-3V020

main64100-95438iBU75,76,85..LHD198409-198708

sub64100-3V030

main64100-95441iBU65..IV3198508-198708

main64101-92601iBU85,86..TW1198510-198708

main64101-95402iBU60..TW1198409-198708

64122ABAFFLE, DUST REAR BODY

main64122-95403iBU60..TW1198409-198509

main64122-95405iBU60,61,62,80,81,82..T2,T3198409-198708

main64122-95406iBU75,76,85..CBU,IV3198409-198708

main64122-95407iBU60,61..T1..(CBU,IV3)198409-198708

main64122-95A06iBU60..TW1198509-198708

64150FRAME ASSY, BACK

main64107-92602iBU60..RHD..TW1..GEN198508-198708

main64107-92604iBU70..V198508-198708

main64107-92606iBU70..BUS;BU60..LHD..TW1198508-198708

main64107-92608iBU85,86..TW1198510-198708

main64107-92609iBU60..RHD..TW1..GEN198409-198508

main64107-92610iBU70..BUS;BU60..LHD..TW1198409-198508

main64107-92611iBU60..ARL..CBU198409-198508

main64107-92612iBU60..ARL..CBU198508-198708

main64107-92616iBU70..V198409-198508

main64107-95411iBU60..RHD..(T1,T2,T3);BU61,62,63,65,80,81,82..RHD198409-198708

main64107-95412iBU60,61,62,80,81..LHD..(T1,T3)198409-198708

main64107-95414iBU75,76,85..RHD..GEN198605-198708

main64107-95415iBU75,76,85..LHD198409-198605

main64107-95416iBU65..IV3198508-198708

main64107-95417iBU85..LHD..GEN..IV3198702-198708

TAIWAN SPEC

main64107-95418iBU85..ARL198605-198708

64171BRACKET, CAB REAR MOUNTING

main64025-95400×2iBU60..(T1,T2,T3)..GEN;BU61,62,63,65,80,81..(GEN,GHD,SA)..(CBU,IV3)198409-198708

W/TILT CAB

sub64025-37030

main64026-95400iBU75,76,85..T3..(CBU,IV3)198409-198708

LH

main64026-95401iBU85..IV1198409-198708

LH,INDONESIA SPEC

main64026-95402iBU65..IV3198508-198708

LH

main64171-95408×2iBU85..RHD..GEN..IV3198409-198708

RH,INDONESIA SPEC

main64171-95410×2iBU85..IV1198409-198708

RH

64180SILENCER ASSY, BACK PANEL

main64190-95400iBU6#..ARL198409-198708

main64190-95401iBU85..ARL198409-198708

main64190-95404iBU75,85..EUR198409-198708

64189CLAMP, BACK PANEL SILENCER

main64189-95400×4iBU6#,75,85..ARL,EUR198409-198708

64811GLASS, BACK WINDOW

main64811-95409iBU60..T1,T2,T3;BU61,62,63,65,80,81,82..CBU,IV3198409-198708

*TEM,T=3.5,*TEM,T=3.5

main64811-95410iBU60..TW1198409-198708

*TEM,T=3.5,*TEM,T=3.5

sub64811-37080

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95015iBU60..T1,T2,T3;BU61,62,63,65,80,81,82..CBU,IV3198409-198708

main64831-95016iBU60..TW1198409-198708

sub64831-37050

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iBU60..T1,T2,T3;BU61,62,63,65,80,81,82..CBU,IV3198409-198708

main64832-95013iBU60..TW1198409-198708

sub64832-37040

9015950206

main90159-50206

9046708033

main90467-08033

9356015010

main93560-15010

24 parts on this diagram · 3 diagrams in section
