Toyota DYNA — REFLEX REFLECTOR

81580REFLECTOR ASSY, REFLEX SIDE, RH

main81580-37031i200010-200206

81581ALENS AND BODY, REFLEX SIDE REFLECTOR, RH

main81581-37030i200010-200206

81584BGASKET,REFLEX REFLEC

main81584-37030i200010-200206

81590REFLECTOR ASSY, REFLEX SIDE, LH

main81590-37031i200010-200206

81591LENS AND BODY, REFLEX SIDE REFLECTOR, LH

main81591-37030i200010-200206

81594GASKET, REFLEX REFLECTOR BODY, LH

main81594-37030i200010-200206

81910REFLECTOR ASSY, REFLEX, RH

main81910-95401i200010-200206

81920REFLECTOR ASSY, REFLEX, LH

main81910-95401i200010-200206

9017905095

main90179-05095

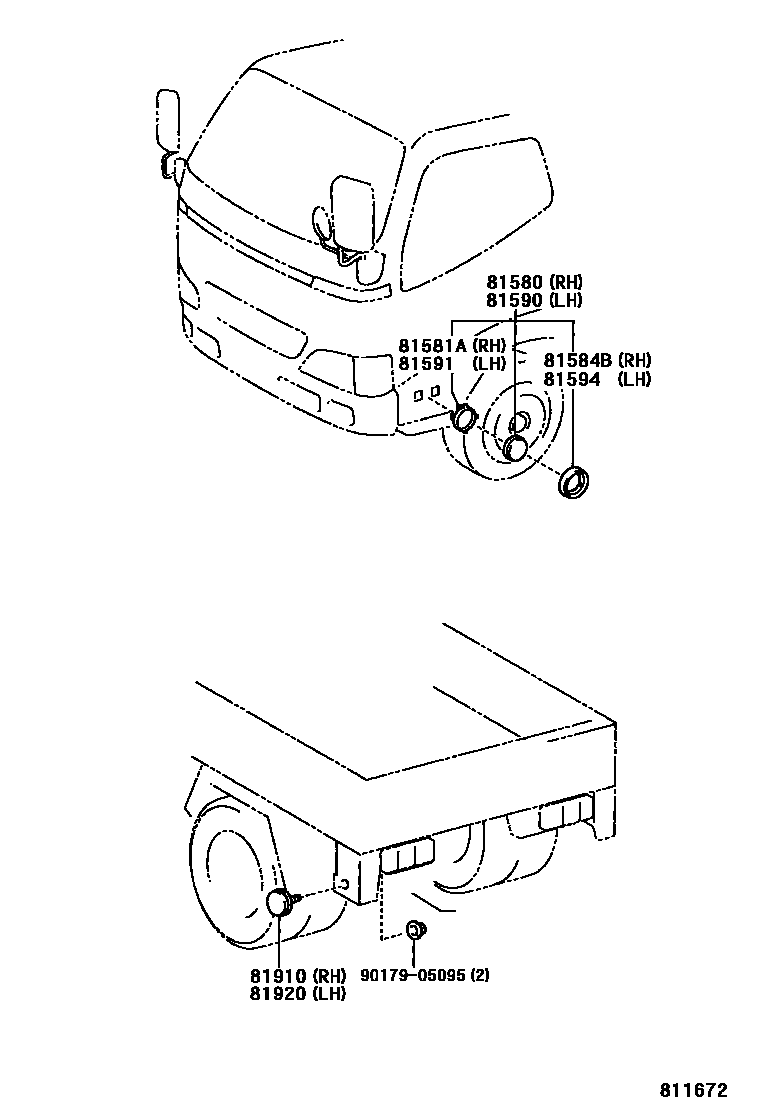

9 parts on this diagram · 1 diagram in section

REFLEX REFLECTOR for Toyota DYNA

This section contains 9 genuine Toyota parts for the REFLEX REFLECTOR system of the Toyota DYNA. Key components include: REFLECTOR ASSY, REFLEX SIDE, RH, LENS AND BODY, REFLEX SIDE REFLECTOR, RH, GASKET,REFLEX REFLEC, REFLECTOR ASSY, REFLEX SIDE, LH, LENS AND BODY, REFLEX SIDE REFLECTOR, LH.
