Toyota DYNA — PARTIAL ENGINE ASSEMBLY

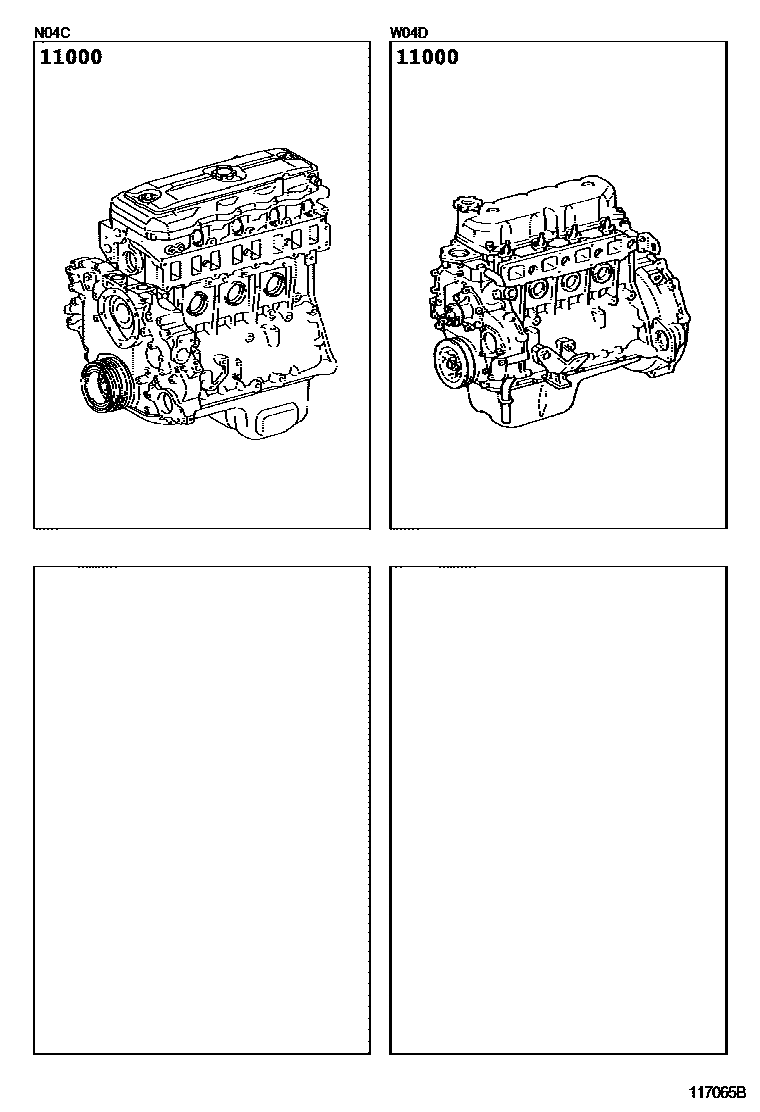

11000ENGINE ASSY, PARTIAL

main19000-0U283iN04C..XZU710,720..GEN201911-202010

main19000-0U284iN04C..XZU710,720..GEN202010-202102

main19000-0U285iN04C..XZU710,720..GEN202102-202302

main19000-0U286iN04C..XZU710,720..GEN202302-202307

main19000-0U287iN04C..XZU710,720..GEN202307-202310

main19000-0U288iN04C..XZU710,720..GEN202310-202409

main19000-0U289iN04C..XZU710,720..GEN202409

main19000-0U350iN04C..XZU710,720..MTM..GCC201905-201906

main19000-0U352iN04C..XZU710,720..MTM..GCC201906-201908

main19000-0U353iN04C..XZU710,720..MTM..GCC201908-202005

sub19000-0U354

main19000-78K32iW04D..WU710,720..LHD..(75T,85T)201508-201607

main19000-78K33iW04D..WU710,720..LHD..(75T,85T)201607-201612

main19000-78K34iW04D..WU710,720..LHD..(75T,85T)201612-201706

main19000-78K35iW04D..WU710,720..LHD..(75T,85T)201706-201712

main19000-78S30iN04C..XZU710,720..6F..GCC201706-201709

main19000-78S31iN04C..XZU710,720..6F..GCC201709-201712

main19000-78V60iW04D..WU710..65T;W04D..WU710..RHD..75T201710-201712

main19000-7CE61iN04C..XZU710..IV3201108-201112

main19000-7CE62iN04C..XZU710..IV3201112-201203

sub17444-E0060

subSZ178-10007

main19000-7CE63iN04C..XZU710..IV3201203-201209

main19000-7CE64iN04C..XZU710..IV3201209-201210

main19000-7CE65iN04C..XZU710..GCC..IV3201210-201312

main19000-7CE66iN04C..XZU710..GCC..IV3201312-201406

main19000-7CE67iN04C..XZU710..GCC..IV3201406-201409

main19000-7CE68iN04C..XZU710..5F201409-201706

main19000-7CE69iN04C..XZU710..5F201706-201709

main19000-7CE85iN04C..XZU720..GCC201211-201312

main19000-7CE86iN04C..XZU720..GCC201312-201406

main19000-7CE87iN04C..XZU720..GCC201406-201409

main19000-7CE88iN04C..XZU720..GCC201409-201508

main19000-7CE89iN04C..XZU710,720..6F..GCC201508-201706

main19000-7CF00iN04C..XZU710201107-201108

main19000-7CF01iN04C..XZU710..CBU201108-201110

main19000-7CF02iN04C..XZU710..CBU201110-201203

sub17444-E0060

subSZ178-10007

main19000-7CF03iN04C..XZU710..CBU201203-201209

main19000-7CF04iN04C..XZU710..CBU201209-201210

main19000-7CF05iN04C..XZU710..CBU201210-201312

main19000-7CF06iN04C..XZU710..CBU201312-201406

main19000-7CF07iN04C..XZU710..CBU201406-201409

main19000-7CF08iN04C..XZU710..CBU201409-201505

sub19000-7CF09

main19000-7CF77iW04D..WU710..65T;W04D..WU710..RHD..75T201607-201612

main19000-7CF78iW04D..WU710..65T;W04D..WU710..RHD..75T201612-201706

main19000-7CF79iW04D..WU710..65T;W04D..WU710..RHD..75T201706-201710

main19000-7CK70iN04C..XZU710..5F201709-201712

main19000-7CK80iN04C..XZU710,720..MTM..GCC201712-201804

main19000-7CK81iN04C..XZU710,720..MTM..GCC201805-201902

sub19000-7CK82

main19000-7CU40iW04D..WU710,720..LHD..(75T,85T)201712-201808

main19000-7CU41iW04D..WU710,720..6F201808-201902

main19000-7CU42iW04D..WU710,720..6F201902-201904

main19000-7CU43iW04D..WU710,720..6F201904-201905

main19000-7CU44iW04D..WU710,720..6F201905-201906

main19000-7CU45iW04D..WU710,720..6F201906-201908

main19000-7CU46iW04D..WU710,720..6F201908-202005

sub19000-7CU47

main19000-7CU50iW04D..WU710..65T;W04D..WU710..RHD..75T201712-201808

main19000-7CU51iW04D..WU710..65T;W04D..WU710..RHD..75T201808-201902

main19000-7CU52iW04D..WU710..65T;W04D..WU710..RHD..75T201902-201904

main19000-7CU53iW04D..WU710..65T;W04D..WU710..RHD..75T201904-201905

main19000-7CU54iW04D..WU710..65T;W04D..WU710..RHD..75T201905-201906

main19000-7CU55iW04D..WU710..65T;W04D..WU710..RHD..75T201906-201908

main19000-7CU56iW04D..WU710..65T;W04D..WU710..RHD..75T201908-202001

main19000-7CU57iW04D..WU710..65T;W04D..WU710..RHD..75T202001-202005

sub19000-7CU58

main19000-7CU80iW04D..WU710,720..LHD..75T..GEN201808-201902

main19000-7CU81iW04D..WU710,720..LHD..75T..GEN201902-201904

main19000-7CU82iW04D..WU710,720..LHD..75T..GEN201904-201906

main19000-7CU83iW04D..WU710,720..LHD..75T..GEN201906-201908

main19000-7CU84iW04D..WU710,720..LHD..75T..GEN201908-202001

main19000-7CU85iW04D..WU710,720..LHD..75T..GEN202001-202005

main19000-7CX30iN04C..XZU710,720..MTM..GCC201902-201904

main19000-7CX31iN04C..XZU710,720..MTM..GCC201904-201905

sub19000-7CX32

main19000-7CD70supersedes 19000-7CF70iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-201108

FRONT HEATER-WITH & WITHOUT(WARM UP SWITCH)

main19000-7CD71supersedes 19000-7CF71iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201108-201112

FRONT HEATER-WITH & WITHOUT(WARM UP SWITCH)

main19000-7CD72supersedes 19000-7CF76iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201201-201204

FRONT HEATER-WITH & WITHOUT(WARM UP SWITCH)

main19000-7CD73supersedes 19000-7CF76iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201204-201205

FRONT HEATER-WITH & WITHOUT(WARM UP SWITCH)

sub19000-7CF73

main19000-7CF20supersedes 19000-7CF10iW04D..WU710,720..LHD..(75T,85T)201107-201108

FRONT HEATER-WITH & WITHOUT(WARM UP SWITCH)

main19000-7CF21supersedes 19000-7CF11iW04D..WU710,720..LHD..(75T,85T)201108-201201

FRONT HEATER-WITH & WITHOUT(WARM UP SWITCH)

main19000-7CF22supersedes 19000-7CF13iW04D..WU710,720..LHD..(75T,85T)201201-201204

FRONT HEATER-WITH & WITHOUT(WARM UP SWITCH)

main19000-7CF23supersedes 19000-7CF13iW04D..WU710,720..LHD..(75T,85T)201204-201205

FRONT HEATER-WITH & WITHOUT(WARM UP SWITCH)

sub19000-7CE03

main19000-7CF35supersedes 19000-7CE59iN04C..XZU710,720,730..EUR201306-201312

ALTERNATOR-24V 80A

main19000-7CF36supersedes 19000-7CE59iN04C..XZU710,720,730..EUR201312-201406

ALTERNATOR-24V 80A

main19000-7CF37supersedes 19000-7CE59iN04C..XZU710,720,730..EUR201406-201409

ALTERNATOR-24V 80A

main19000-7CF38supersedes 19000-7CE59iN04C..XZU710,720,730..EUR201409-201508

ALTERNATOR-24V 80A

main19000-7CF39supersedes 19000-7CE59iN04C..XZU710,720,730..EUR201508-201512

ALTERNATOR-24V 80A

sub19000-78S40

1 parts on this diagram · 1 diagram in section
