Toyota DYNA — PARTIAL ENGINE ASSEMBLY

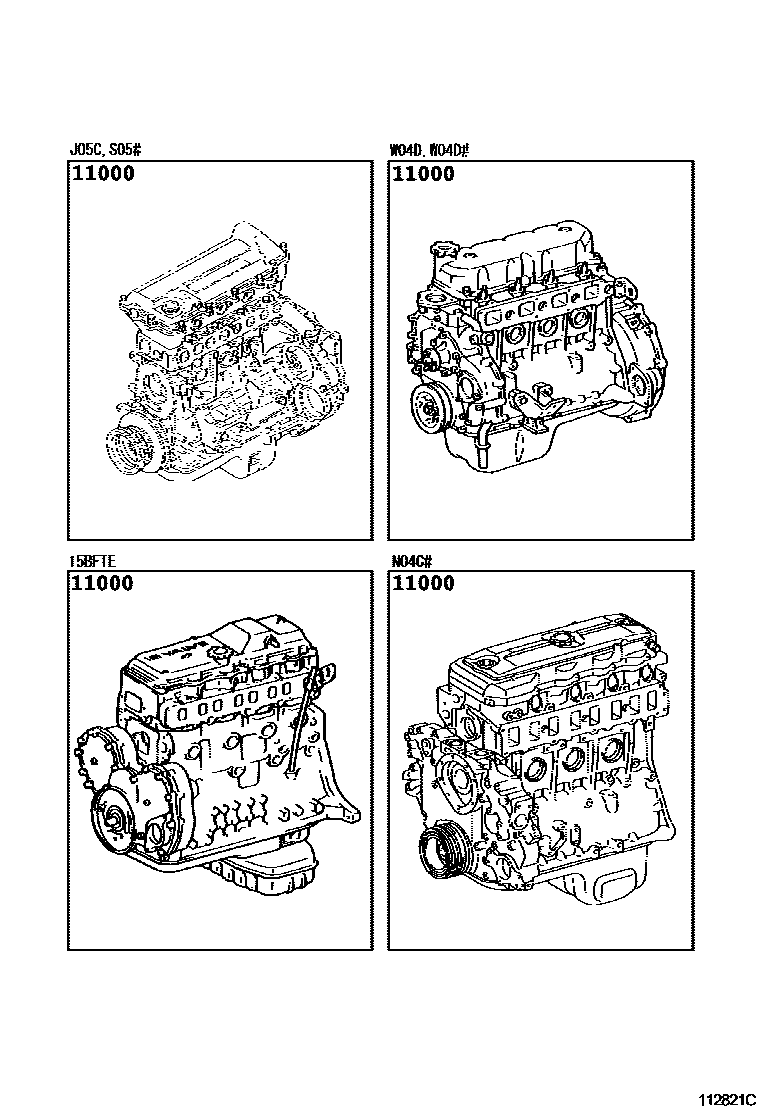

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-5C320i200411-200701
main19000-78460i200110-200402
main19000-78470i200212-200401
main19000-78710i200304-200802
sub19000-78711
main19000-78800i200212-200610
main19000-78810i200212-200610
W(TACHOMETER)
main19000-78820i200402-200802
main19000-78950i200304-200802
main19000-78960i200212-200610
W(FRONT HEATER)
main19000-78970i200212-200610
W(TACHOMETER)
main19000-78980i200212-200610
main19000-78E10i201008-201208
sub19000-78K80
main19000-78E30i201008-201106
sub19000-78K40
main19000-78E40i201008-201106
W(FRONT HEATER)
sub19000-78K40
main19000-78E80i201008-201106
sub19000-7CF74
main19000-78E90i201008-201106
W(TACHOMETER)
sub19000-7CF74
main19000-78F00i201008-201106
W(FRONT HEATER)
sub19000-7CF74
main19000-78F10i201008-201106
W(FRONT HEATER & TACHOMETER)
sub19000-7CF74
main19000-78F60i201008-201106
sub19000-7CE04
main19000-78F70i201008-201106
W(TACHOMETER)
sub19000-7CE04
main19000-78F80i201008-201106
W(FRONT HEATER)
sub19000-7CE04
main19000-78F90i201008-201106
W(FRONT HEATER & TACHOMETER)
sub19000-7CE04
main19000-7C410i200608-200708
main19000-7C420i200610-201008
sub19000-78A40
main19000-7C430i200610-201008
W(TACHOMETER)
main19000-7C440i200610-201008
W(FRONT HEATER)
main19000-7C450i200802-200812
main19000-7C510i200610-201008
main19000-7C520i200610-201008
W(TACHOMETER)
sub19000-78A50
main19000-7C530i200610-201008
W(FRONT HEATER)
main19000-7C540i200610-201008
W(FRONT HEATER & TACHOMETER)
sub19000-78A50
main19000-7C590i200701-201008
sub19000-78K60
main19000-7C820i200610-201008
sub19000-78K70
main19000-7C830i200610-201008
W(FRONT HEATER)

1 parts on this diagram · 1 diagram in section
