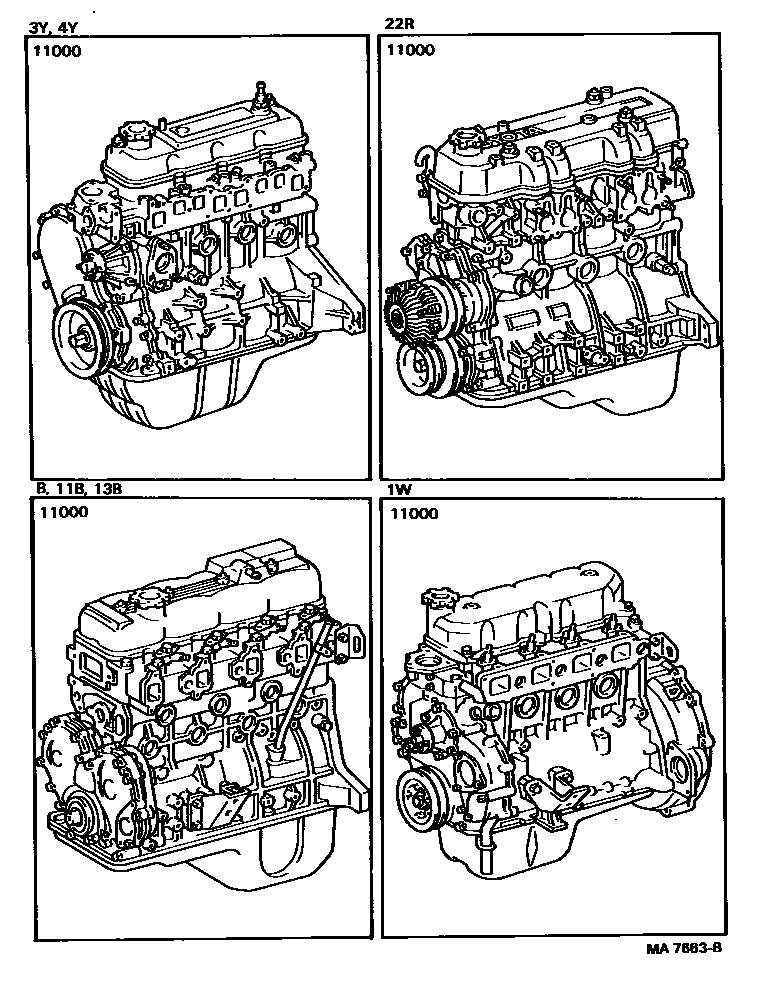

Toyota DYNA — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-35190i22R..RU75,85198409-198602

main19000-35191i22R..RU75,85198602-198708

main19000-73220i3Y,4Y..YU6#,70,80..ARL,GEN,SA198409-198502

sub16268-73051

main19000-73221i3Y,4Y..YU6#,70,80..ARL,GEN,SA198502-198608

sub19000-73222

main19000-73230i3Y..YU60..TW1;3Y,4Y..YU60,80..LHD..WT..GEN198409-198502

CHINA SPEC

sub16268-73051

main19000-73231i3Y..YU60..TW1;3Y,4Y..YU60,80..LHD..WT..GEN198502-198608

CHINA SPEC

sub19000-73232

main19000-73240i3Y..YU60..EUR198409-198502

sub16268-73051

main19000-73241i3Y..YU60..EUR198502-198608

sub19000-73242

main19000-73520i4Y..YU6#,71,81198608-198708

main19000-73530i4Y..YU71198608-198708

CHINA SPEC

main19000-78040i1W..WU90..ARL198409-198708

main19000-78050i1W..WU9#..GEN,SA198409-198508

main19000-78051i1W..WU9#..GEN,SA198508-198708

main19000-78060i1W..WU9#..GEN198409-198508

ELEMENT TYPE

main19000-78061i1W..WU9#..GEN198508-198708

ELEMENT TYPE

main19000-78070i1W..WU9#..GEN198409-198508

W/POWER STEERING

main19000-78071i1W..WU9#..GEN198508-198708

W/POWER STEERING

main19000-78080i1W..WU90..LHD198409-198508

CHINA SPEC

main19000-78081i1W..WU90..LHD198508-198708

CHINA SPEC

main19000-78090i1W..WU9#..GEN198609-198708

W/HAC

main19000-78100i1W..WU9#..GEN198609-198708

W/HAC & POWER STEERING

1 parts on this diagram · 1 diagram in section
