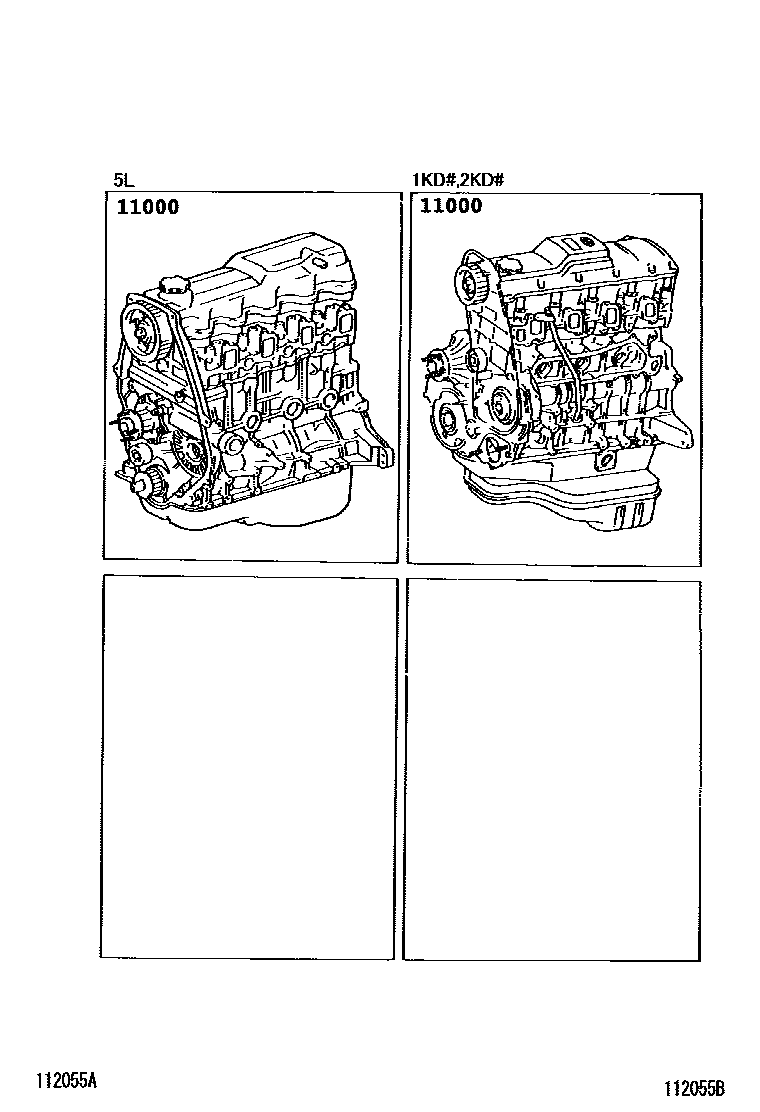

Toyota DYNA — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-30070i2KDFTV..KDY220,230,250,260..LHD200108-200206

sub23770-30021

main19000-30071i2KDFTV..KDY220,230,250,260..LHD200206-200610

main19000-30130i2KDFTV..KDY220,230,250..RHD200108-200206

sub23770-30021

main19000-30131i2KDFTV..KDY220,230,250..RHD200206-200408

main19000-30490i1KDFTV..KDY221,231,251,261200609-200801

main19000-30491i1KDFTV..KDY221,231,251..RHD..EUR200801-200905

main19000-30610i1KDFTV..KDY221,231,251,261..LHD200801-200905

main19000-30620i1KDFTV..KDY221,231,251..RHD..EUR200905-201109

main19000-30630i1KDFTV..KDY221,231,251,261..LHD200905-201109

sub19000-30631

main19000-30730i1KDFTV..KDY221,231,251..RHD..EUR201109-201411

sub19000-30731

main19000-30800i1KDFTV..KDY221,231,251,261..LHD201109-201411

sub19000-30801

main19000-30850i1KDFTV..KDY221,231,251..RHD201411-201702

sub94151-80600

main19000-30851i1KDFTV..KDY221,231201702-201711

main19000-30860i1KDFTV..KDY221,231,251,261..LHD201411-201502

sub19000-30861

main19000-30A20i1KDFTV..KDY221,231201711-202107

main19000-5B690i5L..LY22#,23#200107-202111

1 parts on this diagram · 1 diagram in section
