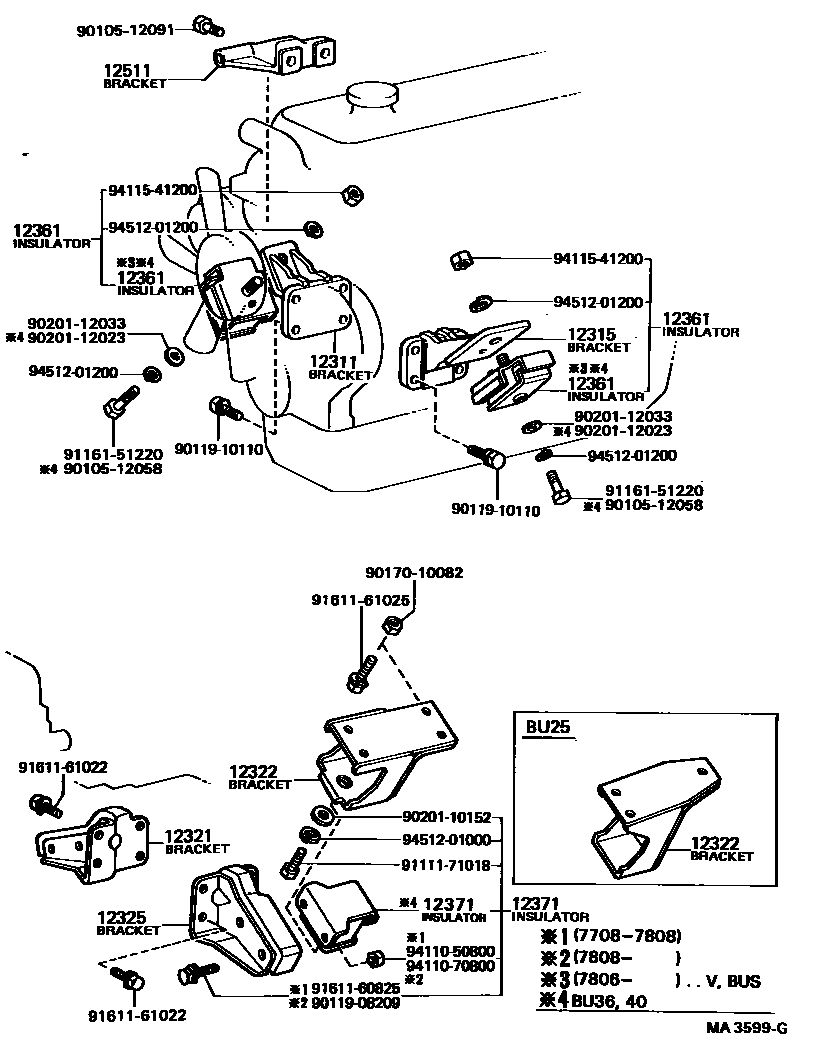

Toyota DYNA — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12321BRACKET, ENGINE MOUNTING, REAR, NO.1
12322BRACKET, ENGINE MOUNTING, REAR NO.2
DUMP SPEC
RH
LH
12325BRACKET, ENGINE MOUNTING, NO.3
12361INSULATOR, ENGINE MOUNTING, FRONT
RH
RH
RH
RH
LH
LH
LH
LH
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12511BRACKET, ALTERNATOR, NO.1
12V 30A ALTERNATOR
12V 40A ALTERNATOR
12V 40A ALTERNATOR
9010512058
main90105-12058
9010512091
main90105-12091
9011908209
main90119-08209
9011910110
main90119-10110
9017010082
main90170-10082
9020110152
main90201-10152
9020112023
main90201-12023
9020112033
main90201-12033
9111171018
main91111-71018
9116151220
main91161-51220
9161160825
main91611-60825
9161161022
main91611-61022
9161161025
main91611-61025
9411050800
main94110-50800
9411070800
main94110-70800
9411541200
main94115-41200
9451201000
main94512-01000
9451201200
main94512-01200
26 parts on this diagram · 7 diagrams in section
MOUNTING for Toyota DYNA
This section contains 43 genuine Toyota parts for the MOUNTING system of the Toyota DYNA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, BRACKET, ENGINE MOUNTING, REAR NO.2, BRACKET, ENGINE MOUNTING, NO.3.
