Toyota DYNA — MOUNTING

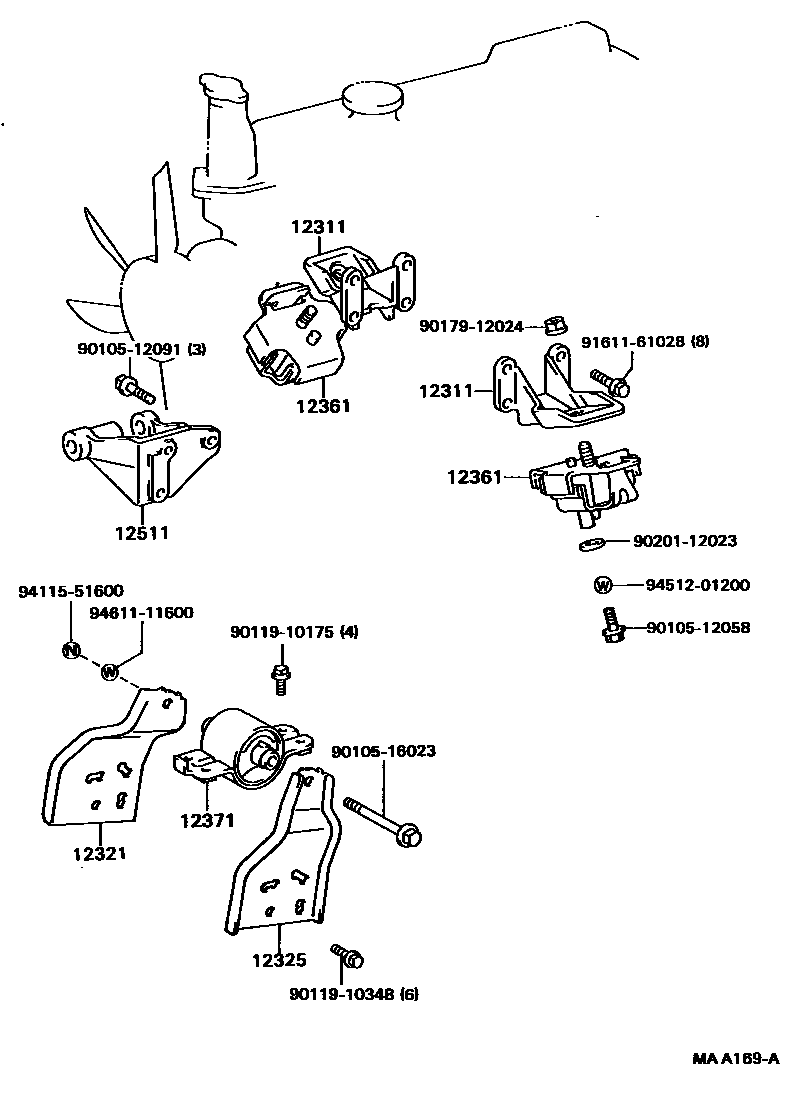

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-58021×2i198708-198808

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-58050i198708-198808

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-58050i198708-198808

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-58040×2i198708-198808

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-56041i198708-198808

12511BRACKET, ALTERNATOR, NO.1

main12511-56040i198708-198808

9010512058

main90105-12058

9010512091

main90105-12091

9010516023

main90105-16023

9011910175

main90119-10175

9011910348

main90119-10348

9017912024

main90179-12024

9020112023

main90201-12023

9161161028

main91611-61028

9411551600

main94115-51600

9451201200

main94512-01200

9461111600

main94611-11600

17 parts on this diagram · 1 diagram in section

MOUNTING for Toyota DYNA

This section contains 17 genuine Toyota parts for the MOUNTING system of the Toyota DYNA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, REAR, NO.1, BRACKET, ENGINE MOUNTING, NO.3, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1.
