Toyota DYNA — MOUNTING

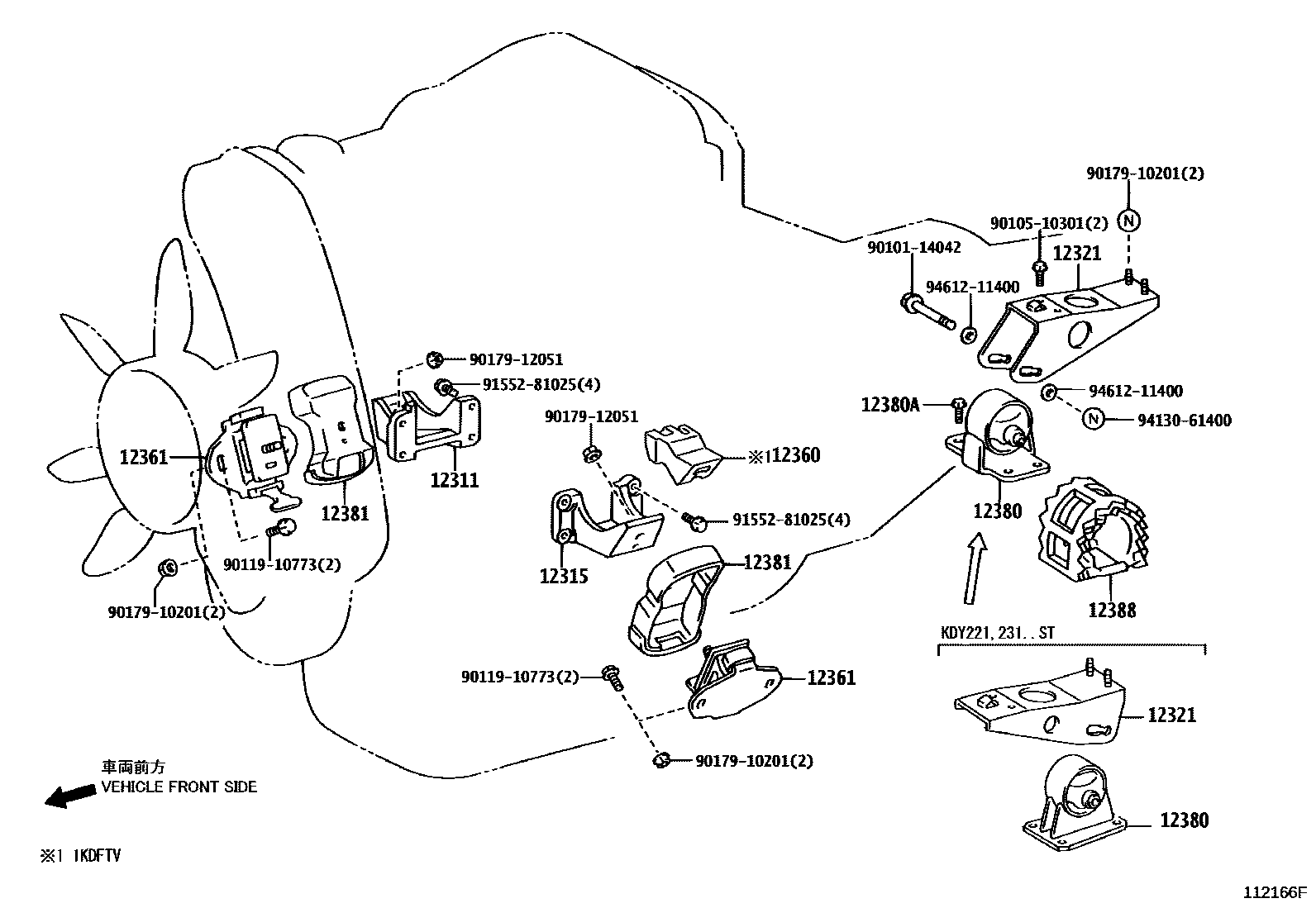

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-30090i200608-200708

main12311-30091i200708

main12311-54181i200107-202111

main12311-67021i200108-200608

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-30090i200608-200708

main12315-30091i200708

main12315-67011i200108-200608

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-30020i200108-200607

main12321-30021i200607-200610

main12321-30030i200108-200607

main12321-30031i200607

main12321-30041i200609-201502

main12321-54100i200107-200607

main12321-54101i200607-201609

main12321-54110i200107-200607

main12321-54111i200607-202111

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12361-30070i200609

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-54240i200107-200206

main12361-54241i200206-200707

main12361-54242i200708-202111

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-54040i200107-201609

main12380-54050i200107-202111

main12380-54071i200609-201502

12380ABOLT(FOR ENGINE MOUNTING INSURATOR)

main90105-08157i200107-201609

main91513-H1025i200107-202111

12381STABILIZER, ENGINE MOUNTING

main12381-54050i200107-200605

main12381-54051i200606-200707

main12381-54052i200708-202111

12388STOPPER, ENGINE MOUNTING BRACKET, REAR

main12388-67011i200107-202111

9010114042

main90101-14042

9010510301

main90105-10301

9011910773

main90119-10773

9017910201

main90179-10201

9017912051

main90179-12051

9155281025

main91552-81025

9413061400

main94130-61400

9461211400

main94612-11400

17 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota DYNA

This section contains 23 genuine Toyota parts for the MOUNTING system of the Toyota DYNA. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, BRACKET, ENGINE MOUNTING, REAR, NO.1, INSULATOR ASSY, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, FRONT.
