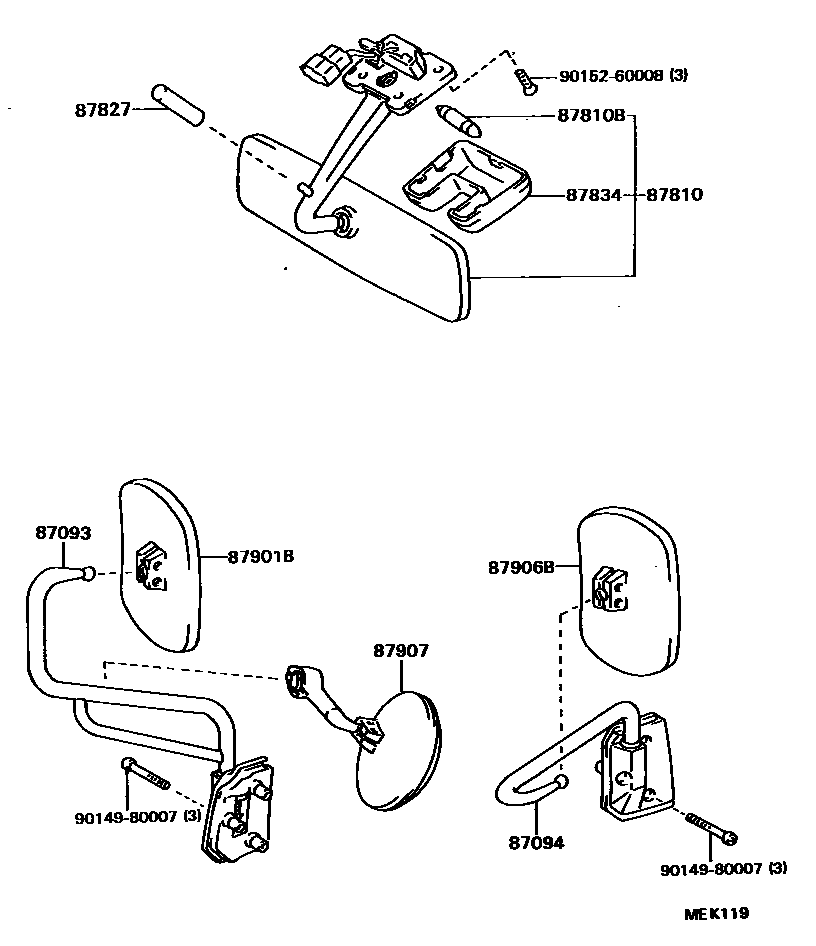

Toyota DYNA — MIRROR

87093STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH

main87093-95401i198708-198808

87094STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH

main87094-95402i198708-198808

87810MIRROR ASSY, INNER REAR VIEW

main87810-95425i198708-198808

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-16019i198708-198808

24V 10W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-23010i198708-198808

L=38.5

main87828-30010i198708-198808

L=43.5

main87828-32010i198708-198808

L=46.5

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main81243-95701i198708-198808

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-95417i198708-198808

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87901-95417i198708-198808

87907MIRROR SUB-ASSY, OUTER UNDER VIEW

main87906-95403i198708-198808

9014980007

main90149-80007

9015260008

main90152-60008

11 parts on this diagram · 1 diagram in section

MIRROR for Toyota DYNA

This section contains 11 genuine Toyota parts for the MIRROR system of the Toyota DYNA. Key components include: STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH, STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH, MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, ABSORBER, INNER REAR VIEW MIRROR.
