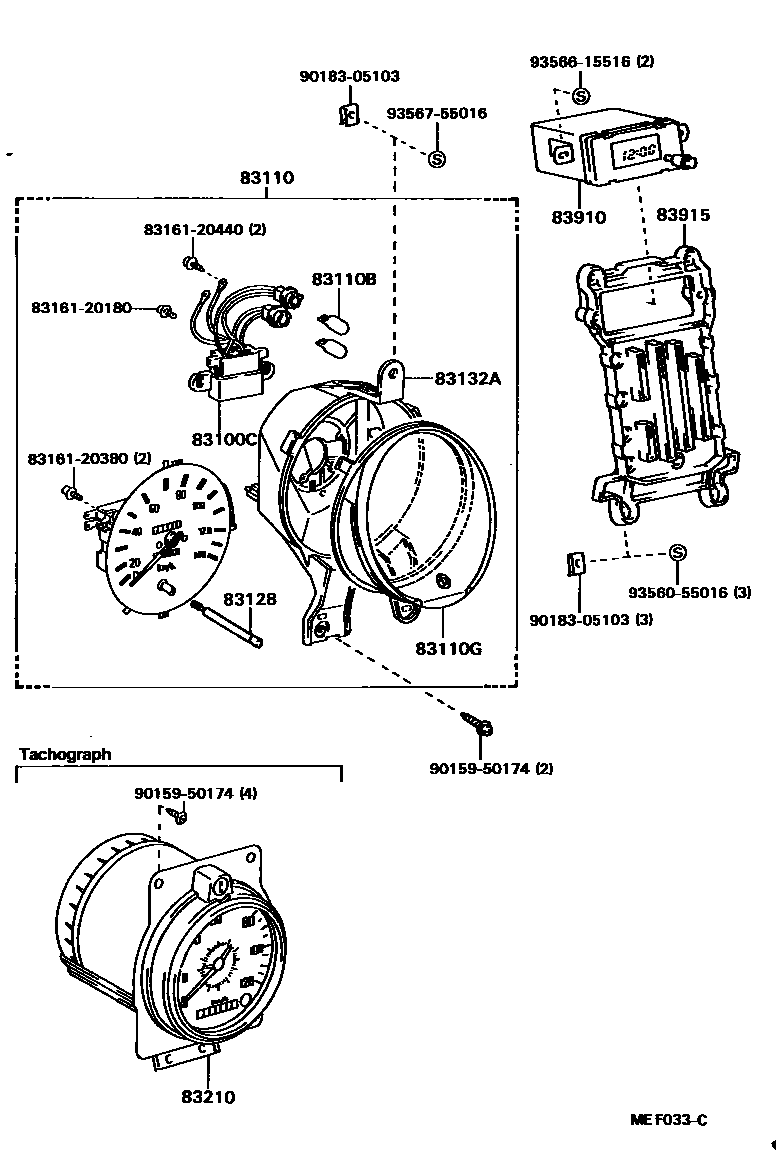

Toyota DYNA — METER

0001 1 0002 1 0003 1 0004 1

83100CCONNECTOR, COMBINATION METER

main83101-95405iYU60,62..ST198508-198708

*SAA

main83101-95407iRU75,85,WU9#,YU6#,7#,8#198409-198708

83110SPEEDOMETER ASSY

main83110-95440iWU9#..LHD198409-198708

24V,KM,CHINA OR ALGERIA SPEC

main83110-95441iRU75,85,WU9#,YU6#,7#,8#..EUR,GEN,SA198409-198708

12V,KM

main83110-95442iRU75,85,WU9#,YU6#,7#,8#..GEN198409-198708

12V,KM & MILE

main83110-95444iYU7#..V198508-198708

12V,KM,*SAA OR GULF

main83110-95445iWU90,YU60,62..ARL198409-198708

12V,KM

83110BBULB, SPEEDOMETER

main99132-12034×2iRU75,85,WU9#,YU6#,7#,8#198409-198708

12V 3.4W

main99134-12030×2iWU9#..LHD198409-198708

24V 3.0W,CHINA OR ALGERIA SPEC

83110GGLASS, SPEEDOMETER

main83134-95406iRU75,85,WU9#,YU6#,7#,8#198409-198708

83128KNOB, TRIP COUNTER

main83128-89300iRU75,85,WU9#,YU6#,7#,8#198409-198708

83132CASE, COMBINATION METER

main83132-92602iRU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA198508-198708

W/TACHOMETER

main83132-95402iWU95..GEN198409-198708

W/O TACHOMETER

83132ACASE, METER

main83132-95403iRU75,85,WU9#,YU6#,7#,8#198409-198708

83210TACHOGRAPH ASSY

main83210-95410iWU9#..LHD..IV3198409-198708

1-WEEK,POLTUGAL SPEC

main83210-95412iWU9#..LHD..IV3198409-198708

1-DAY,POLTUGAL SPEC

83910CLOCK ASSY

main83910-95402iWU9#..LHD198409-198708

CHINA OR ALGERIA SPEC

main83910-95403iRU75,85,WU9#,YU6#,7#,8#198409-198708

83915BRACKET, CLOCK

main55912-95404iRU75,85,WU9#,YU6#,7#,8#..GEN198409-198708

W/O HEATER OR *BV

8316120180CASE, COMBINATION METER MIRROR, NO.1

main83161-20180

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

9015950174

main90159-50174

9018305103

main90183-05103

9356055016

main93560-55016

9356615516

main93566-15516

9356755016

main93567-55016

18 parts on this diagram · 4 diagrams in section
