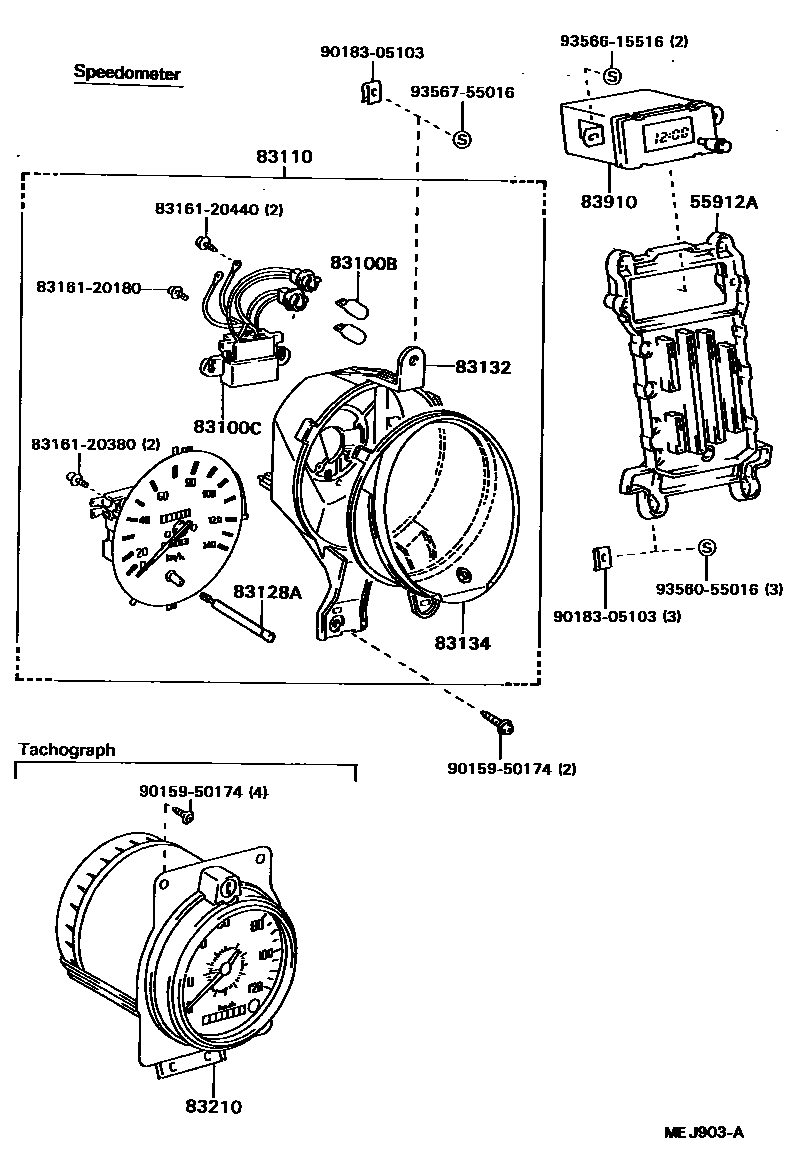

Toyota DYNA — METER

55912AHOUSING, HEATER CONTROL

main55912-95404i198708-198808

83100BBULB, COMBINATION METER, NO.1

main90981-11022i198708-198808

24V 1.4W

main99134-12030i198708-198808

24V 3W

main99134-12030i198708-198808

24V 3W,W(EXHAUST BRAKE)

83100CCONNECTOR, COMBINATION METER

main83101-95408i198708-198808

83110SPEEDOMETER ASSY

main83110-95451i198708-198808

83128AKNOB, METER

main83128-89300i198708-198808

83132CASE, COMBINATION METER

main83132-95404i198708-198808

SPEEDOMETER

main83132-95B00i198708-198808

COMBINATION GAGE

83134COVER, COMBINATION METER, NO.1

main83134-95408i198708-198808

SPEEDOMETER

main83134-95B00i198708-198808

COMBINATION GAGE

83210TACHOGRAPH ASSY

main83210-95413i198708-198808

7-DAY

main83210-95414i198708-198808

1-DAY

83910CLOCK ASSY

main83910-95402i198708-198808

8316120180CASE, COMBINATION METER MIRROR, NO.1

main83161-20180

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

9015950174

main90159-50174

9018305103

main90183-05103

9356055016

main93560-55016

9356615516

main93566-15516

9356755016

main93567-55016

17 parts on this diagram · 4 diagrams in section

METER for Toyota DYNA

This section contains 34 genuine Toyota parts for the METER system of the Toyota DYNA. Key components include: HOUSING, HEATER CONTROL, BULB, COMBINATION METER, NO.1, CONNECTOR, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1.
