Toyota DYNA — METER

0001 1 0003 1 0004 1 0007 1

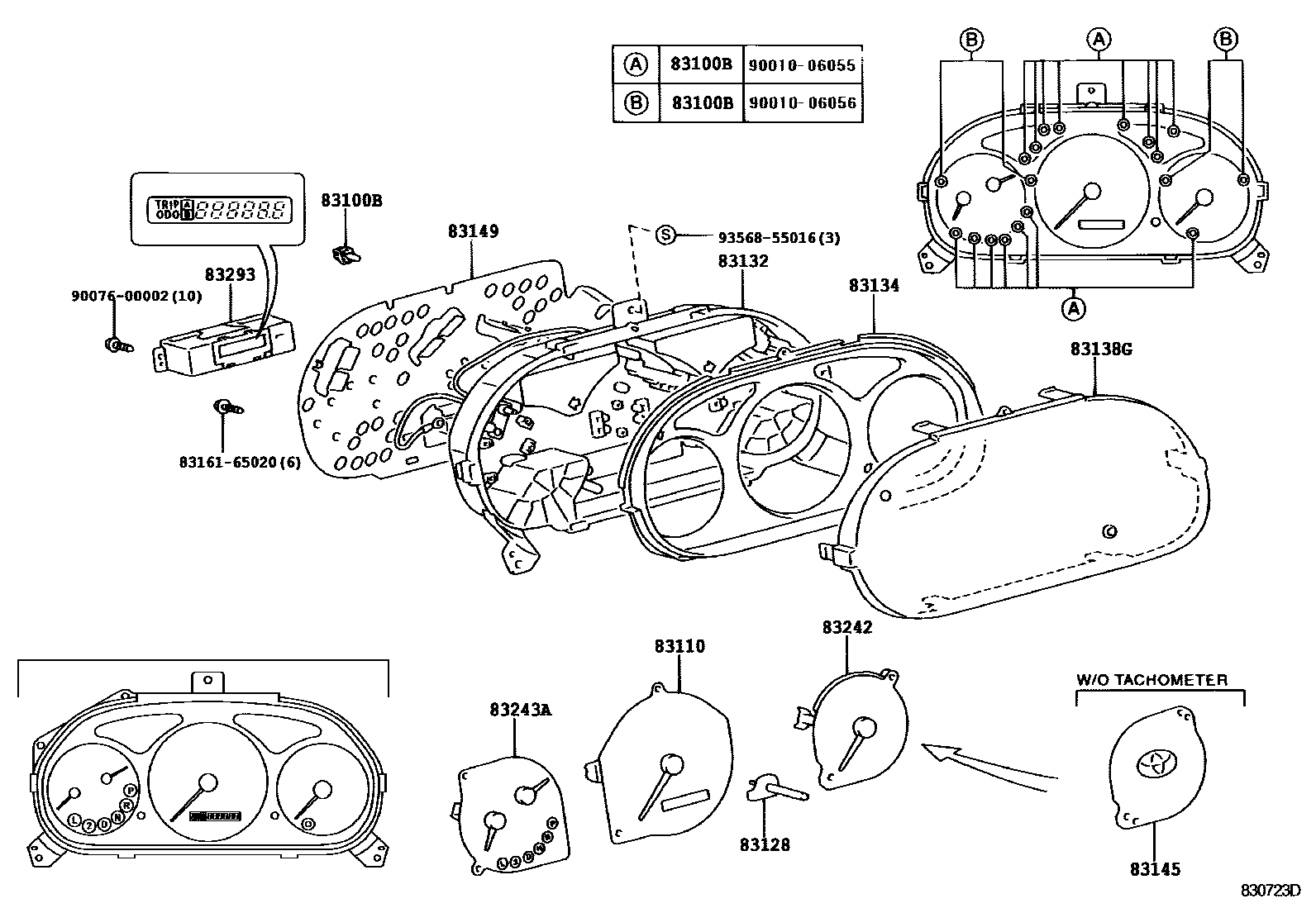

83100METER ASSY, COMBINATION

main83800-25370iKDY221,231..GEN200609-201310

main83800-25390iKDY221,231,251,261..EUR200609-200810

KM/H & W(TACHOMETER)

main83800-25410iKDY221,231,251,261..EUR200609-200810

KM/H

main83800-25420iKDY221,231,251..RHD..EUR200609-200810

MPH/KMH & W(TACHOMETER)

main83800-25430iKDY221,231,251..RHD..EUR200609-200810

MPH & KM/H

main83800-25531iLY235..ST;LY22#,230..ARL,GEN200308-201610

main83800-25551iLY235..WT;LY220,230..ARL200308-200609

W(TACHOMETER)

main83800-25641iLY235..RHD..ST;LY225..RHD..CBU200308-201610

MILE/H+KM/H

main83800-25730iKDY221,231,251,261..EUR200810-200907

KM/H & W(TACHOMETER)

main83800-25740iKDY221,231,251,261..EUR200810-200907

KM/H

main83800-25750iKDY221,231,251..RHD..EUR200810-200907

MPH/KMH & W(TACHOMETER)

main83800-25760iKDY221,231,251..RHD..EUR200810-200907

MPH & KM/H

main83800-25A00iKDY221,231,251,261..EUR200907-201109

KM/H & W(TACHOMETER)

main83800-25A10iKDY221,231,251,261..EUR200907-201109

KM/H

main83800-25A20iKDY221,231,251..RHD..EUR200907-201109

MPH/KMH & W(TACHOMETER)

main83800-25A30iKDY221,231,251..RHD..EUR200907-201109

MPH & KM/H

main83800-25B10iKDY221,231,251,261..EUR201109-201502

KM/H & W(TACHOMETER)

main83800-25B20iKDY221,231,251,261..EUR201109-201502

KM/H

main83800-25B30iKDY221,231,251..RHD..EUR201109-201502

MPH/KMH & W(TACHOMETER)

main83800-25B40iKDY221,231,251..RHD..EUR201109-201502

MPH & KM/H

main83800-25B50iKDY221,231..GEN201310-201610

main83800-25B70iKDY221,231201610

main83800-25D10iLY235201610

main83800-25D20iLY230201610-202111

83100BBULB, COMBINATION METER, NO.1

main90010-06051iKDY220,230,250,260200108-200610

14V 3.0W,TYPE C:REFER TO ILLUSTRATION

main90010-06055×14iKDY220,230,250,260..LHD200108-200610

14V 1.12W

main90010-06056×3iKDY220,230,250,260200108-200610

14V 3.0W,W/GREEN CAP,TYPE B:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83220-25030iLY230..SA;KDY220,230,250,260..LHD200108-201610

main83220-25040iKDY220,230,250..RHD200406-200610

W(TACHOMETER & KM SPEEDOMETER)

main83220-25050iKDY220,230,250..RHD200108-200610

main83220-25060iKDY220,230,250..RHD200108-200610

W(TACHOMETER)

main83220-25070iLY22#,23#..ARL,GEN200107-200308

KM/H

main83220-25080iLY235..RHD..ST;LY225..RHD..CBU200107-200308

MILE/H+KM/H

83128KNOB, TRIP COUNTER

main83224-25380iLY22#,23#..ARL,GEN200107-200308

83132CASE, COMBINATION METER

main83841-25380iLY22#,23#..ARL,GEN200107-200308

main83841-25400iKDY220,230,250,260200108-200610

83134COVER, COMBINATION METER, NO.1

main83821-25380iLY230..SA200107-201610

main83821-25400iKDY220,230,250,260200108-200610

main83821-37610iKDY221,231,251,261,LY22#,23#..ARL,EUR,GEN200308-201610

main83821-37M10iLY230201610-202111

83138GGLASS, COMBINATION METER

main83852-25370iKDY221,231,251,261..EUR200609-200907

main83852-25400iKDY220,230,250,260200108-200610

main83852-37250iKDY221,231,LY22#,23#..ARL,GEN,SA200107-201610

main83852-37M10iLY230201610-202111

83145LENS, METER, NO.1

main83831-25400iLY235..ST;LY22#,230..ARL,GEN200107-200308

83149PLATE, METER CIRCUIT

main83861-25400iKDY220,230,250,260200108-200610

main83861-25530iLY22#,23#..ARL,GEN200107-200308

83242TACHOMETER ASSY, ENGINE

main83881-25380iLY235..WT;LY220,230..ARL200107-200308

main83881-25440iKDY220,230,250,260200108-200610

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-25400iLY22#,23#..ARL,GEN200107-200308

83293COMPUTER, TOTAL COUNTER MODULE

main83293-25050iKDY220,230,250..RHD200406-200610

main83293-25060iKDY220,230,250..RHD200108-200610

W(TACHOMETER)

main83293-25070iLY230..SA200110-201610

main83293-25080iLY235..ST;LY22#,230..ARL,GEN200107-200308

main83293-25090iLY235..RHD..ST;LY225..RHD..CBU200107-200308

MILE/H+KM/H

main83293-25100iLY235..WT200107-200308

8316165020CASE, COMBINATION METER MIRROR, NO.1

main83161-65020

9007600002

main90076-00002

9356855016

main93568-55016
